15.6 inch 1920x1080 IPS TFT LCD
The VXT156HX1B-01 is a 15.6-inch VA TFT LCD combining high static contrast with a Full HD widescreen format. Wide viewing angles, an anti-glare surface and dual-channel LVDS support integration into indoor monitors and information terminals.
Model:VXT156HX1B-01
Send Inquiry PDF DownLoad
Product Description
Contrast That Gives Content Definition
The VXT156HX1B-01 VA TFT LCD combines a normally black display mode with high static contrast. This combination helps distinguish bright text, interface elements and image details against dark backgrounds, making the panel a useful option for dashboards, multimedia content and information screens.
A Widescreen Layout for Indoor Displays
The Full HD format provides room for detailed graphics, menus and multiple information areas on one screen. Wide viewing angles allow content to be viewed from different positions, while the anti-glare surface helps reduce distracting reflections from surrounding lighting. Potential applications include desktop monitors, indoor kiosks and information terminals.
Display and Backlight Control for Integration
Dual-channel LVDS connects the panel to a compatible host controller. The LED driver supports backlight enable control and PWM dimming, allowing the host system to manage illumination for the intended installation. The module is intended for integration into a complete display product.
GENERAL Information
| Item | Specification | Unit | Note |
|
Model |
VXT156HX1B-01 |
|
|
|
Display Size |
15.6 inch |
|
|
|
Display Technology |
a-Si TFT LCD, VA Mode |
|
|
|
Display Mode |
Transmissive, Normally Black |
|
|
|
Resolution |
1920 × 1080 pixels |
|
|
|
Aspect Ratio |
16:9 |
|
|
| Active Area | 344.16(H)*193.59(V) | mm | |
| Module Size | 351.86(H)*206.33(V)*6.30(D) | mm | With PCB |
| Module Size | 351.86(H)*206.33(V)*3.20(D) | mm | Without PCB |
| Pixel Pitch (Sub Pixel) | 59.75*179.25 | um | |
| Pixel Arrangement | RGB Vertical Stripe | - | |
| Display Colors | 16.7M | color | 8bit |
| Display Mode | Transmissive Mode,Normally Black | - | VA Mode |
| Luminance | 235(typ) | cd/m2 | |
| Color Chromaticity | NTSC 72%(typ) | ||
| Contrast Ratio | 3000:1(Typ.) | ||
| Weight | 0.4 | Kg | |
| Viewing Angle | 178° horizontal / 178° vertical typical (CR ≥ 10) | ° | |
| Surface Treatment | Anti-glare,Haze 25%,Hard Coating(3H) | ||
|
LCD Supply Voltage |
12 V typical |
|
|
| BLU Type | E-LED | - | |
|
Backlight Control |
Enable Control and PWM Dimming |
|
|
|
Operating Temperature |
0°C to +50°C |
°C |
|
|
Storage Temperature |
-20°C to +60°C°C |
|
|

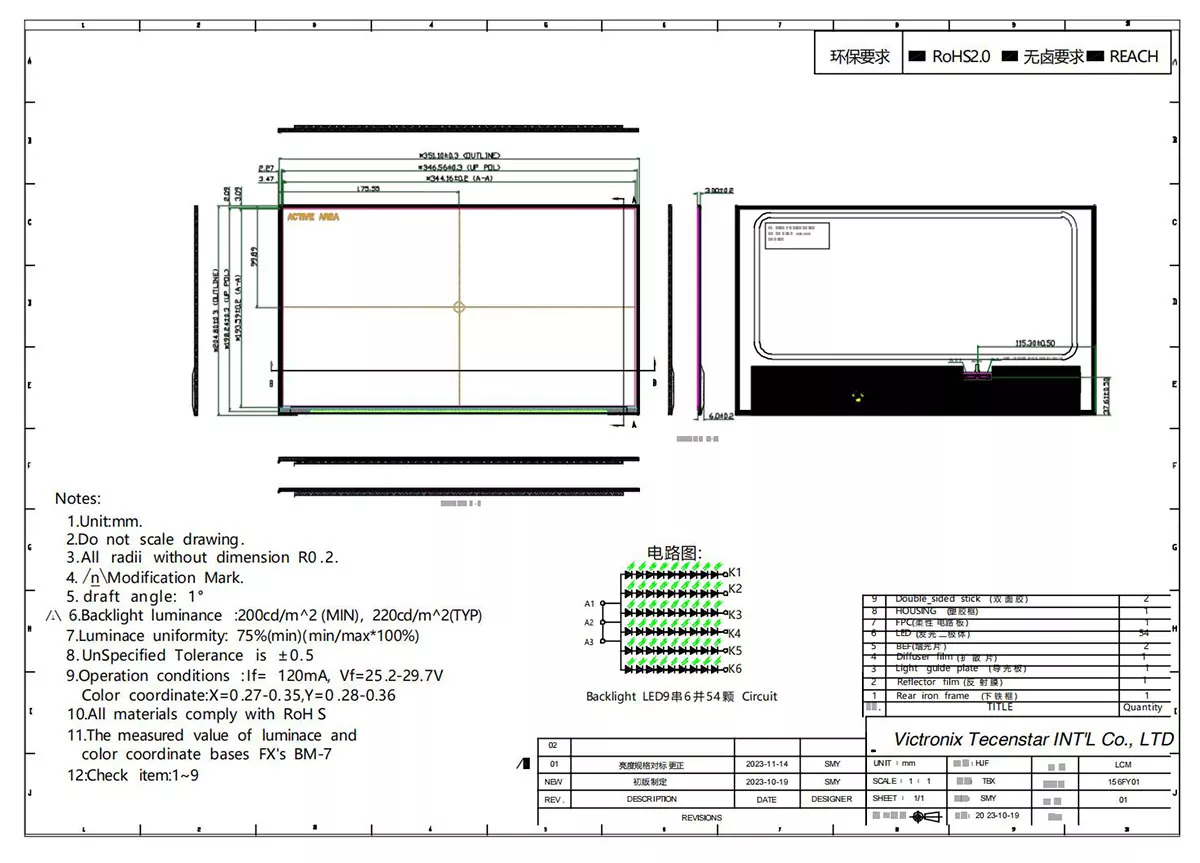

Mechanical Characteristics
