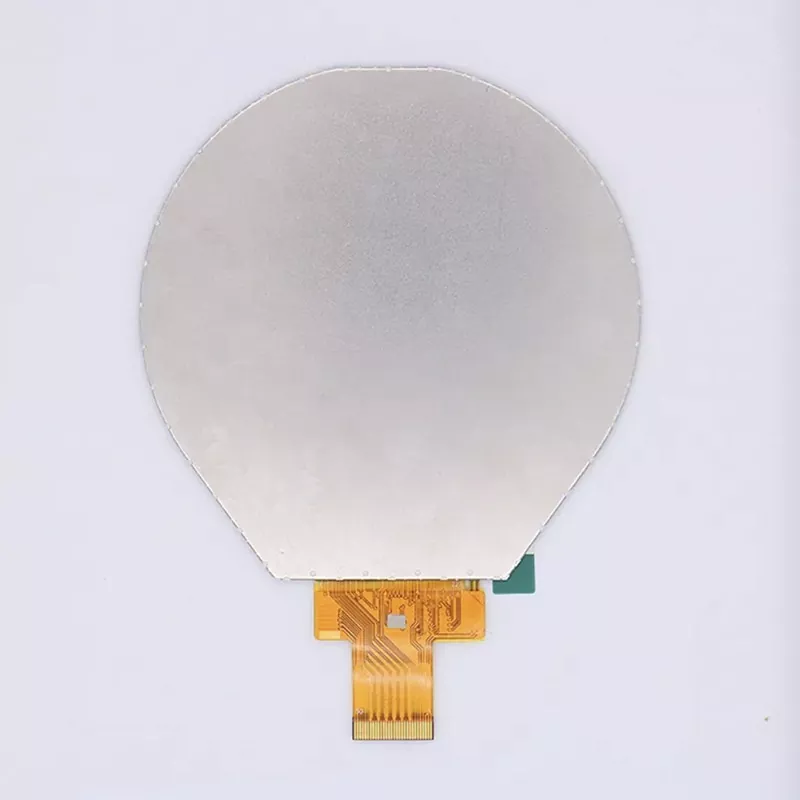

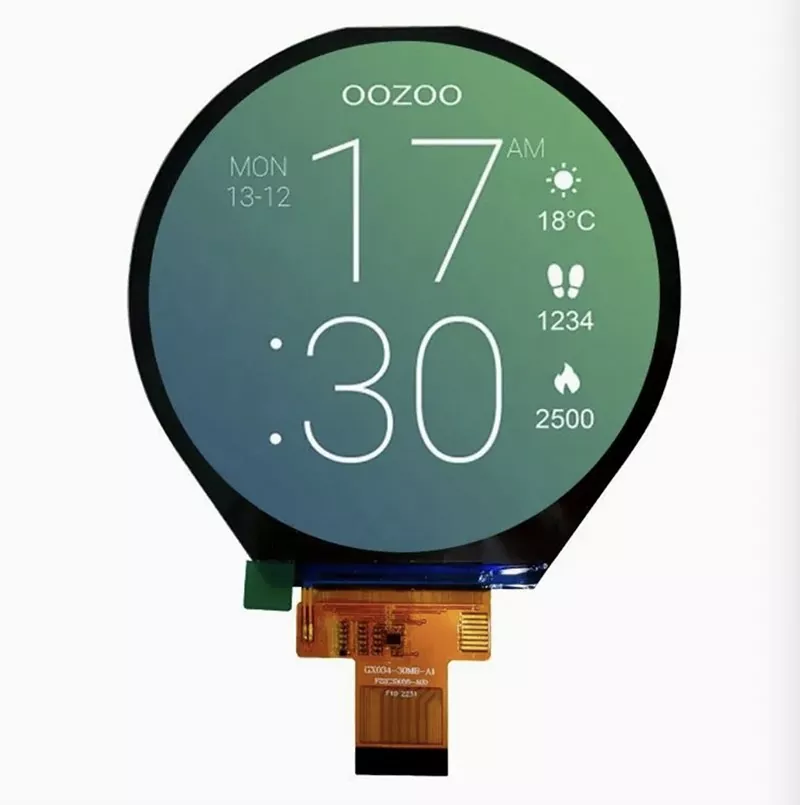

3.4 inch 800x800 Round IPS TFT Module

In the age of intelligence, TFT MODULE helps us present the required data in the form of images. The quality of the TFT module has a critical impact on its application. What are the advantages of the Victronix 3.4 inch 800x800 Round IPS TFT Module? At first, it provides customers a premium display with an 800×800 resolution and 16.7M colors, 85° viewing angle (all directions), 1000 cd/m² typical brightness, and 1200:1 contrast ratio. Secondly, it utilizes a MIPI DSI interface for high-speed data transfer. Driven by the ILI9881C controller IC, ensuring compatibility and performance. Besides, it integrates a 5S2P LED backlight system with a typical supply voltage of 15V (13.5V min, 16.5V max) at 120mA and offers a long lifetime from 30,000 to 50,000 hours (typical) to 50% initial brightness (Ta=25°C). In addition, it passes rigorous reliability testing including High/Low-Temperature Operation & Storage, Humidity, and Temperature Cycle tests, meeting strict quality assurance criteria (AQL MA=0.65, MI=1.0 per ANSI/ASQ Z1.4). These make it operate reliably within an extensive temperature range of -30°C to +80°C and withstands storage under the same harsh conditions..

This Victronix 3.4 inch TFT Module is suitable for Industrial HMIs, portable medical devices, test and measurement equipment, transportation systems, rugged handheld terminals, and any application requiring a reliable, high-visibility display in challenging environments.

General Specifications

VXT340MQIA-01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit. The3.4¢¢ display area contains 800x (RGB)x 800 pixels and can display up to 16.7M colors. This product accords with ROHS environmental Criterion.

Note 1: Color tune is slightly changed by temperature and driving voltage.

Note 2: Without FPC and Solder.

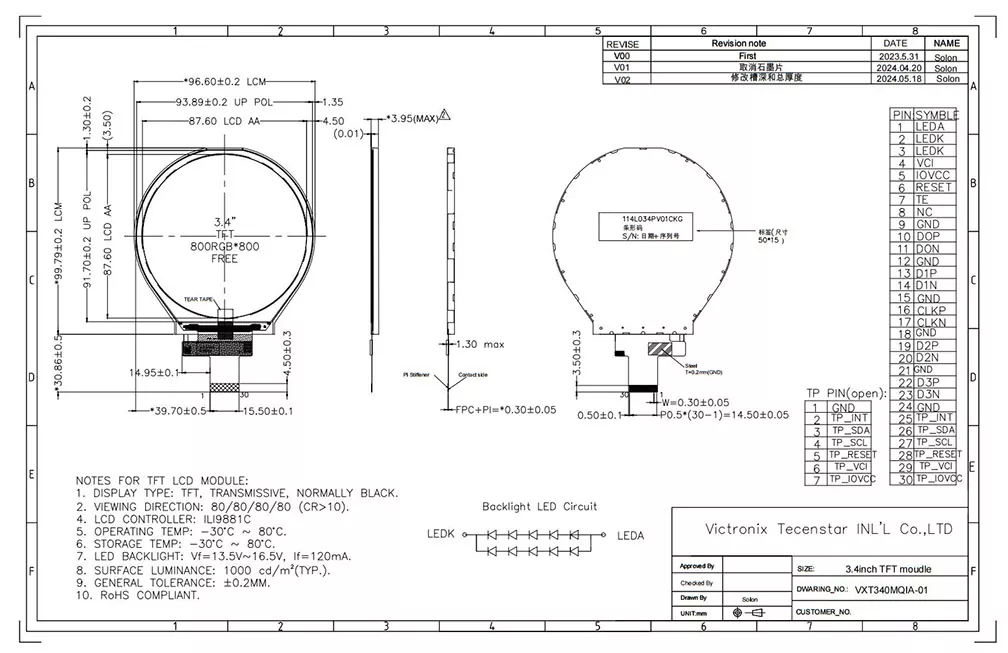

Outline Drawing
