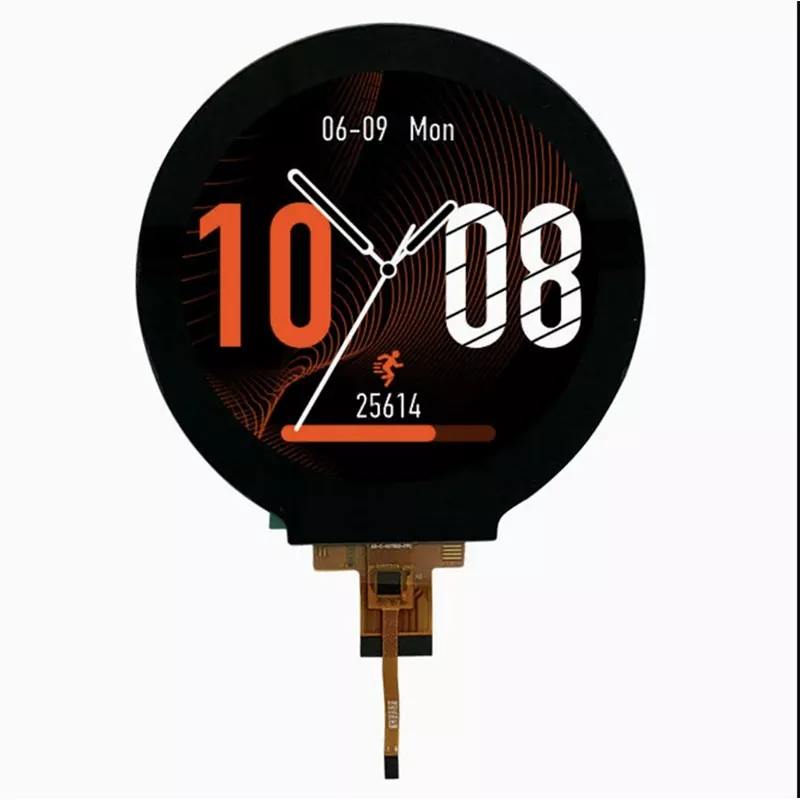

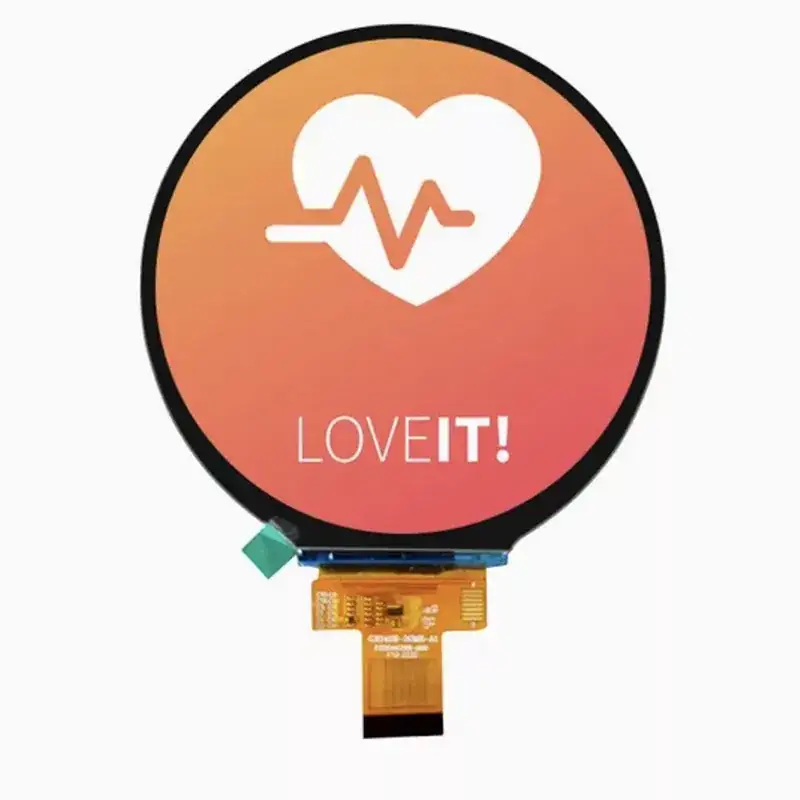

4.0 inch 720x720 Round IPS TFT Module

TFT Module can be found everywhere in life, what makes this Victronix 4.0 inch 720x720 Round IPS TFT Module different from other manufacturers? At first, its 300 cd/m² brightness, 600:1 contrast ratio, and 68% NTSC color gamut ensure vivid imagery. Secondly, it not only has a MIPI DSI interface (4 data lanes) with touch support (I²C + interrupt/reset) that simplifies integration but also combines a TFT panel, driver IC (ICNL9707), FPC, and a 6S2P white LED backlight which lifetime is from 20,000 to 50,000 hours in an ultra-slim 2.09mm profile ensuring that it can be used for a long-lasting in different industrial situations. Besides, it meets RoHS standards and passes rigorous reliability tests (thermal shock, humidity, storage) to operate flawlessly in extreme temperatures (-20°C to +70°C) and withstand harsh storage conditions (-30°C to +80°C).

This Victronix 4 inch TFT Module is suitable for medical devices, factory automation, portable instruments, and embedded systems where stability, color accuracy, and compact design are paramount.

General Specifications

VXT400MCCA-01 4.0 inch 720x720 Round IPS TFT Module is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light unit . The 4.0¢ display area contains 720X(RGB)x720 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.

Note 1: Color tune is slightly changed by temperature and driving voltage.

Note 2: Without FPC and Solder.

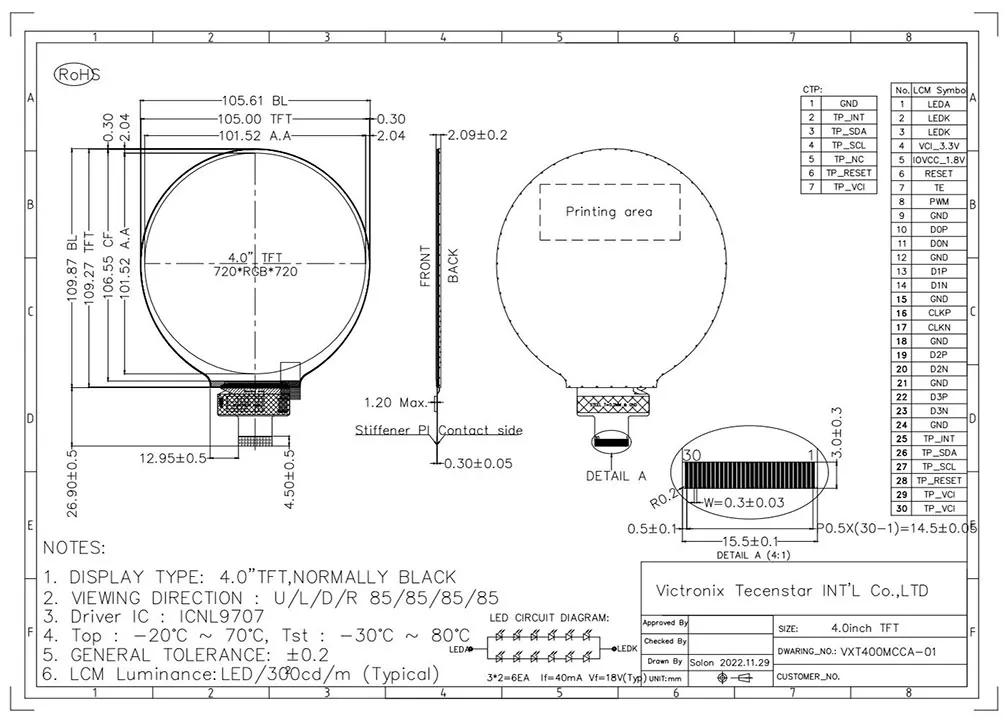

Outline Drawing
