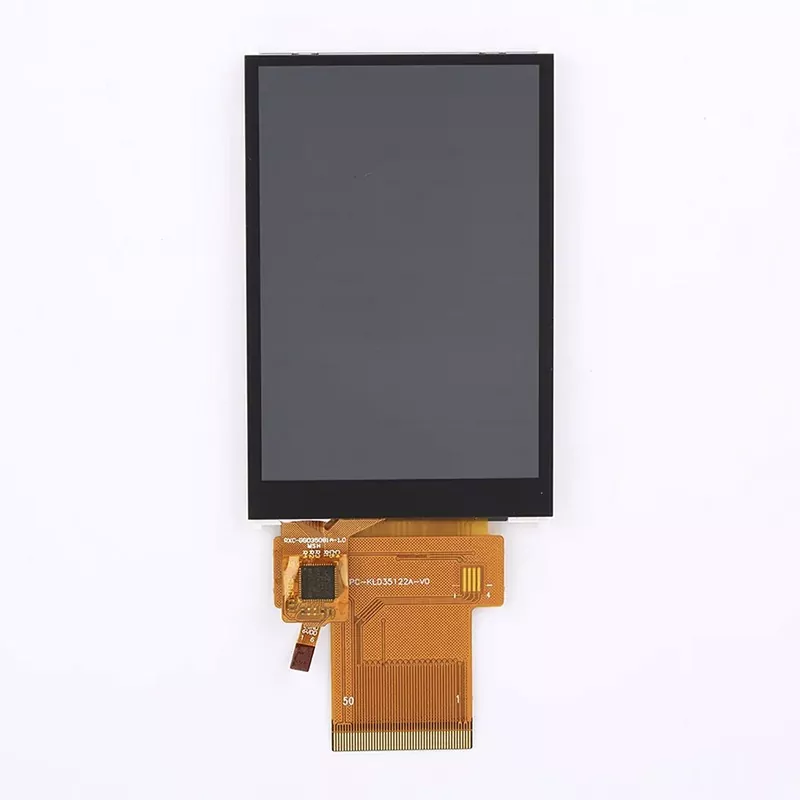

3.5 Inch 320x480 TFT LCD Module RGB888 + SPI + MCU Interface with CTP - VXT350QHI-37C

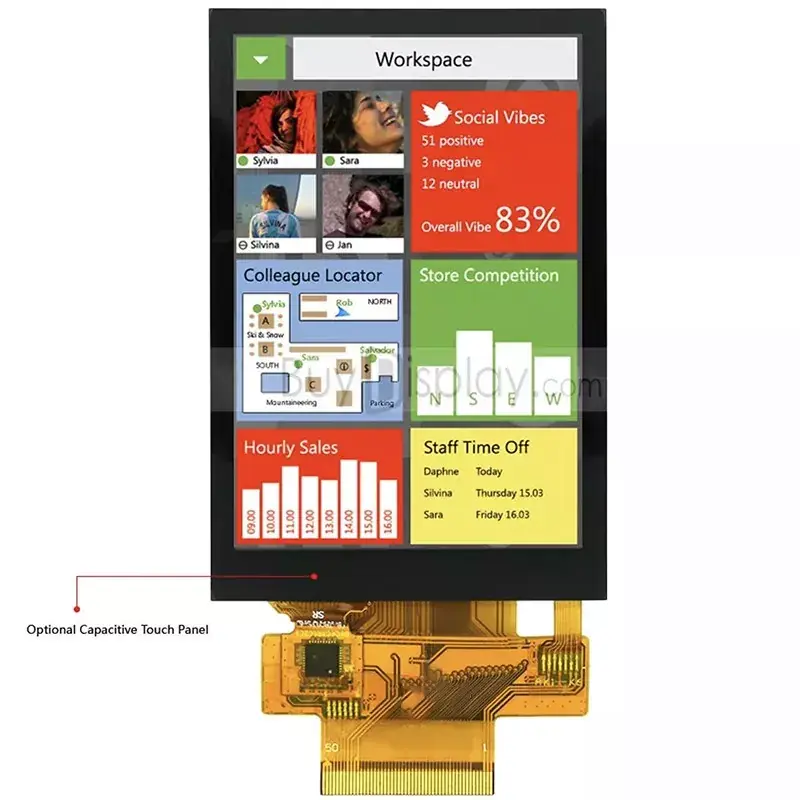

Victronix 3.5'' 320×480 Capacitive Touch TFT Module offers 300 cd/m² brightness and an 80-degree viewing angle in all directions ensure vivid imagery. Secondly, it supports seamless compatibility with RGB888 (24-bit), SPI (3/4-line), MCU parallel interfaces for flexible integration, and offers a capacitive touch controller (I²C interface: SCL/SDA/INT/RST) for responsive interaction, and a 6S-LEDs white backlight with a lifetime of 50,000 hours, ensuring its long-term usability in various industrial applications. Additionally, it complies with RoHS standards and successfully passes rigorous reliability tests, including 96H high/low temperature operation/storage, temperature cycling, and 60°C/90 % RH humidity. This product operates efficiently in extreme temperatures ranging from -20°C to +70°C and can withstand severe storage conditions from -30°C to +80°C. This 3.5 inch TFT module from Victronix is designed for Industrial HMIs, medical devices, portable instruments, and IoT applications that demand durability, touch interactivity, and vivid visuals.
Model:VXT350QHI-37C
Send Inquiry PDF DownLoad
Product Description
Where It Gets Used
- Smart home and building control panels — 320 × 480 portrait with capacitive touch, 80° viewing in every direction so it can be mounted at any height and angle.
- Handheld and portable instruments — 153,600 pixels at 300 KB, MCU or SPI, and TE for tear-free updates.
- Access control and video door phone indoor units — portrait touch with interrupt-driven reporting.
- Industrial HMI and machine sub-panels — three interface families on one part number, selected by straps.
- Portable medical and laboratory devices — 700:1 contrast and all eight CIE coordinates published.
- Point-of-sale and handheld payment terminals.Kiosk and vending sub-displays.
- Test and measurement equipment — square pixels keep scales and labels true.
- Factory automation programmers and smart home controllers — −20 to +70 °C covers indoor industrial ambient.
General Information
| Item | Value |
|---|---|
| Model | VXT350QHI-37C, VER.00 |
| LCD type | TFT |
| Composition | Panel, driver IC, FPC, back light unit — the touch panel is omitted, though a GT911 and a 6-pin CTP FPC are both specified |
| Colours | 16.7M — genuine |
| Viewing direction | ALL — confirmed by four identical 80° angles |
| Operating temperature | −20 to +70 °C |
| Storage temperature | −30 to +80 °C |
| Module size | refer to drawing |
| Active area | 48.96 × 73.44 mm — 35.96 cm² — portrait |
| Pixel pitch | 0.153 × 0.153 mm — exactly square |
| Resolution | 320 × 480 — native portrait |
| Controller | ILI9488 |
| CTP controller | GT911 |
| Interface | RGB888 & SPI & MCU — three families, strap-selected |
| MCU pins | WR/SCL 40, RD 41, D/C 42, CS 43, SDI 44 |
| Backlight pins | LEDA 2–3, LEDK 4–5 |
| CTP connector | Separate 6-pin FPC — VDD, SCL, SDA, INT, RST, GND |
| Supply | VCC 2.5 / 2.8 / 3.3 V (analog); IOVCC 1.65 / 1.8 / 3.3 V (logic) |
| Absolute max | VCC and IOVCC −0.3 to 3.3 V — equals the operating maximum |
| Brightness | 300 cd/m² typical — no floor, no ceiling |
| Contrast | 700 typical — highest of any 3.5-inch panel here |
| Response | Tr + Tf 30 ms typical — one row |
| Viewing angle | 80° at all four directions — typical only |
| Uniformity | 80% min — highest floor in this range |
| NTSC | 50 min / 60 typ % |
| Backlight current | 20 mA — test condition only |
| Backlight power | 0.36 W (derived) |

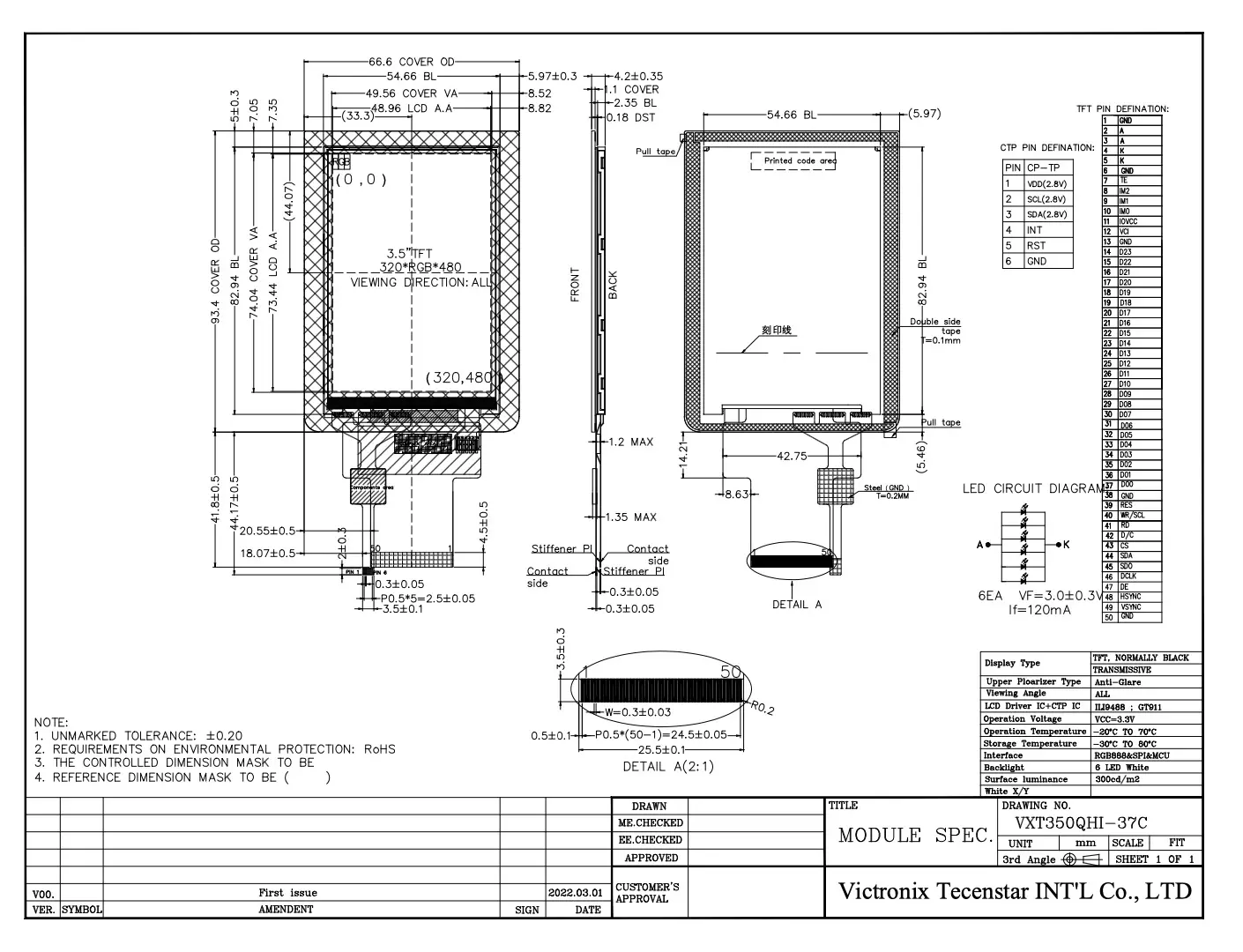

Outline Drawing
