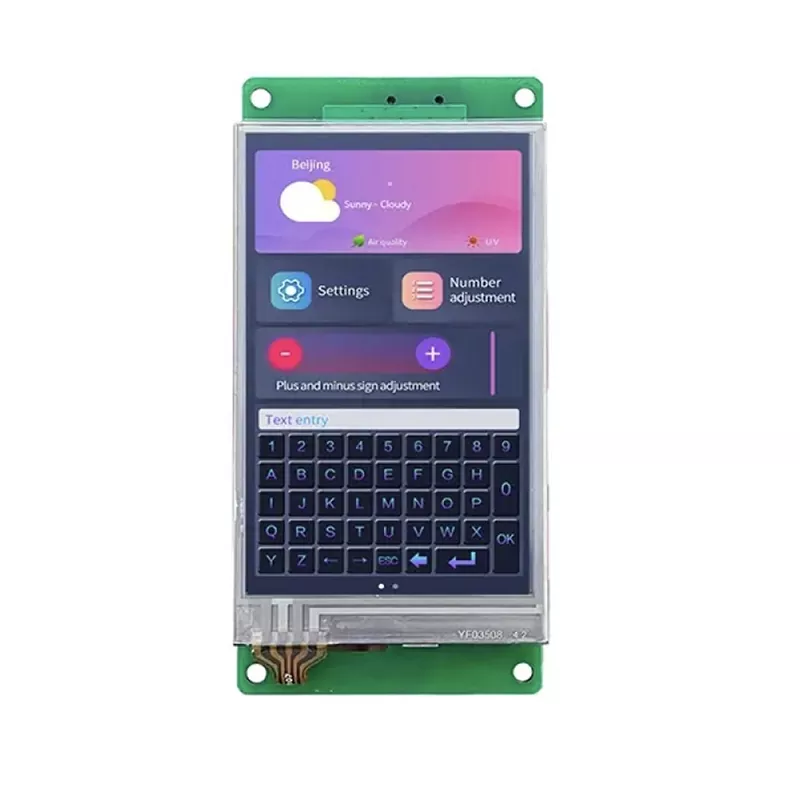

3.5 Inch 480x800 Portrait TFT LCD Module with Resistive Touch 18-Bit RGB + SPI - VXT350BWS-01P

Where It Gets Used

• Handheld and portable field instruments — 269 PPI keeps dense readings legible, and resistive touch works with gloves.
• Industrial HMI and machine control panels — glove operation, dirty hands, and a surface you can wipe down.
• Medical devices and portable monitors — gloved operation, and a panel that can be disinfected.
• Point-of-sale and payment terminals — signature capture with a pen, and a 5:3 portrait layout for a scrolling list.
• Test and measurement equipment — square pixels keep scales, traces and dial graphics true, and the resolution carries real detail.
• Kiosk, vending and ticketing terminals — 1,000,000 hitting cycles, 3H surface, and no wrong mounting orientation.
• Access control and intercom panels — a vertical interface with a keypad or a signature area.
• Marine instrument consoles and vehicle dashboards — shaded cabins and consoles, and shock and vibration are specified.
• Portable monitors and embedded Linux projects — 750 KB on external RAM, driven by a host with an RGB output.
• Products where only one flex can be routed — display and touch share a single 45-pin FPC.
• Replacement displays in existing 3.5-inch 480 × 800 equipment — same resolution, same 5:3 shape, same portrait orientation.

General Specification

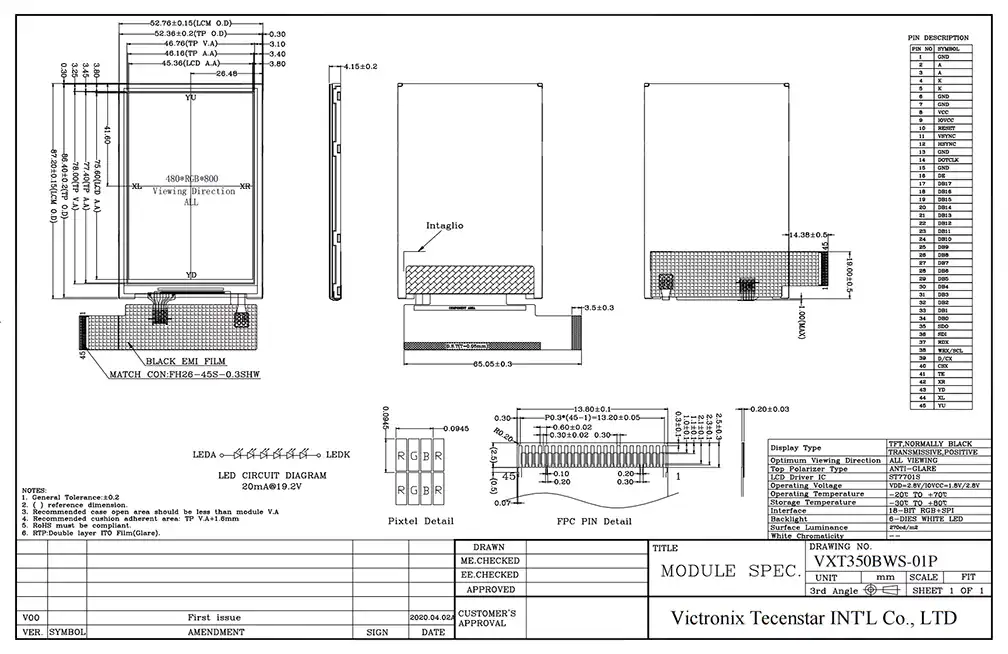

Mechanical Drawing
