3.5 Inch QVGA TFT IPS LCD Module with RGB Interface

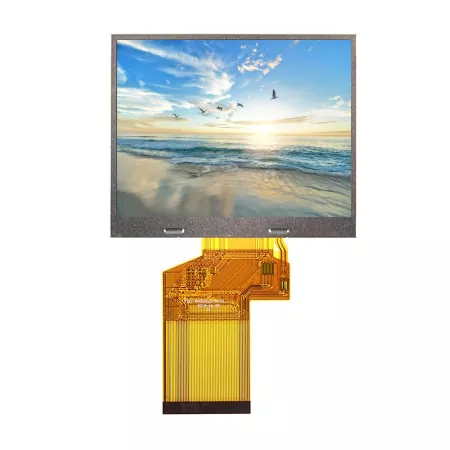

This Victronix 3.5 inch 320×240 QVGA IPS TFT Module with a 24-bit RGB interface. This TFT LCD module designed for robust and reliable operation in demanding industrial and embedded applications. Combining a sharp QVGA resolution with vibrant color performance and a wide viewing angle, this module delivers exceptional clarity for user interfaces, instrumentation, and control systems. As a professional manufacturer and supplier of TFT modules in China, this Victronix 3.5 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.

Model:VXT350HLS-01

Send Inquiry PDF DownLoad

Product Description

General Specifications

Model	VXT350HLS-01
Display Type	IPS TFT LCD
Screen Size	3.5 inch
Resolution	320 × 240 pixels (QVGA)
Aspect Ratio	4:3
Display Colors	16.7 million
Viewing Direction	All viewing directions
Viewing Angle (L/R/U/D)	80°/80°/80°/80° (typ., CR ≥ 10)
Brightness	300 cd/m² (typ.); 250 cd/m² (min.)
Contrast Ratio	800:1 (typ.); 640:1 (min.)
Active Area (W × H)	70.08 × 52.56 mm
Outline Dimensions (W × H × T)	76.80 × 63.90 × 3.05 mm
Driver IC	ST7272A
Display Interface	24-bit parallel RGB
Connection	54-pin FPC
LCD Supply Voltage	3.3 V (typ.); 3.0–3.6 V
LCD Supply Current	23.8 mA (typ., normal mode; backlight excluded)
Backlight	White LED, 6 LEDs in series
Backlight Forward Voltage	18.0 V (typ.); 16.2–19.8 V at 20 mA
Backlight Current	20 mA (typ.)
Backlight Lifetime	30,000 hours minimum to 50% brightness at 25°C, IF = 20 mA
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C

Clear Color Graphics for Compact Interfaces

The VXT350HLS-01 TFT LCD module supports color menus, status icons and graphical readouts in a compact landscape format. Wide viewing angles help users read the display from different positions, giving equipment designers flexibility when positioning the screen.

Potential Applications

This module can be considered for handheld instruments, embedded control panels and equipment interfaces. The display format suits applications that combine numerical readings with simple charts, navigation menus and operating-status information.

Integration Considerations

The module requires a compatible host controller to supply RGB image data and display timing, together with a separate LED backlight drive circuit. Review the FPC pin assignment, timing requirements and mechanical drawing when matching the display to your hardware. Detailed specifications are listed in the parameter table.

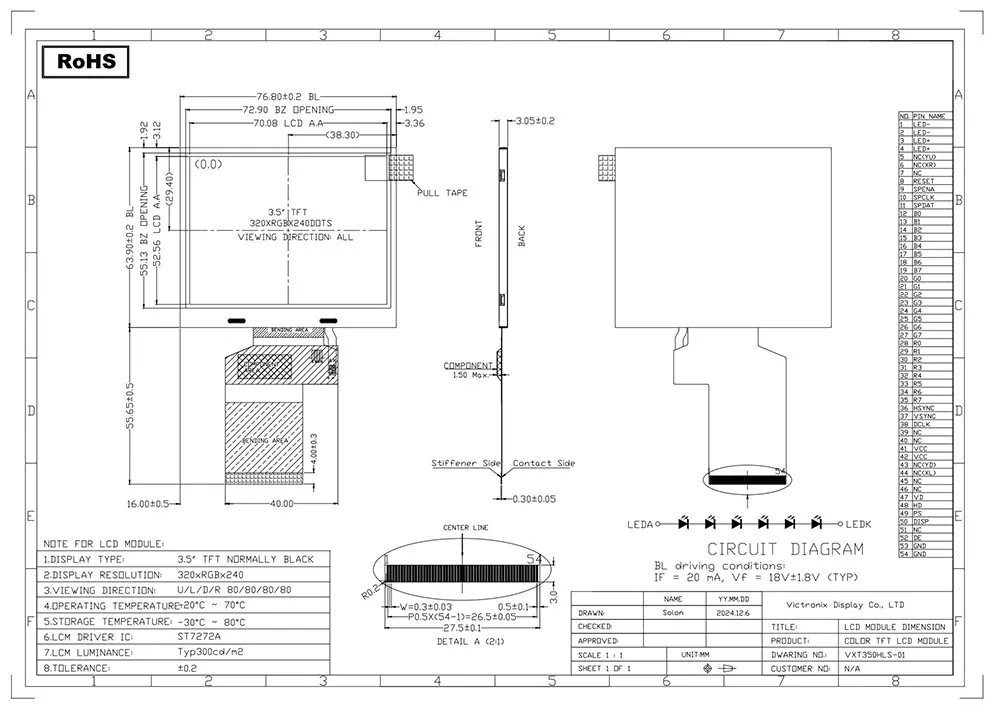

Outline Drawing
