3.5 Inch 320x480 Portrait TFT LCD Module RGB / MCU / SPI - VXT350QHI-19
Victronix VXT350QHI-19: a 3.5 inch portrait TFT LCD module with 320x480 pixels and 262K colors over a 48.96 x 73.44 mm active area. All viewing direction with free grey-scale inversion and 80 degrees at 3, 6, 9 and 12 o'clock alike, so there is no wrong mounting orientation. RGB, MCU and SPI interfaces on one 50-pin FPC selected by IM0, IM1 and IM2, ILI9488 controller, VCI 2.8 V and IOVCC 1.8 V rails so 1.8 V logic drives it directly, 6-LED backlight, 2.25 mm thin, -20 to +70 C operating. For handheld instruments, portable monitors, smart home control panels, POS terminals, medical devices and industrial HMI.
Model:VXT350QHI-19
Send Inquiry PDF DownLoad
Product Description
Where It Gets Used
- Handheld and portable instruments — no wrong mounting orientation, and 2.25 mm thin.
- Portable monitors and medical devices — 166 PPI keeps dense readings legible on a small panel.
- Smart home control panels and thermostats — portrait is the natural orientation for a wall-mounted controller.
- Point-of-sale and payment terminals — a vertical layout with a 3:2 shape.
- Test and measurement equipment — square pixels keep scales, traces and dial graphics true.
- Industrial HMI in portrait enclosures — no need to redesign the cut-out for a landscape panel.
- Kiosks, vending and ticketing terminals — indoor, at 360 cd/m².
- Access control and smart lock displays — tall, narrow, wall-mounted.
- Microcontroller projects with a flexible interface — 8, 9, 16 or 18-bit bus, MCU mode or SPI, all on one connector.
- Products where the board is already fixed — if your host only has SPI, or only an 8-bit bus, this module can be strapped to match it.
General Specification
| Item | Contents | Unit |
|
Model |
VXT350QHI-19 |
|
| LCD TYPE | TFT/TRANSMISSIVE | |
| MODULE SIZE (W*H*T) | 54.66*82.94*2.2 | MM |
| ACTIVE SIZE(W*H) | 48.96*73.44 | MM |
| PIXEL PITCH (W*H) | 0.184*0.184 | MM |
| NUMBER OF DOTS | 320*480 | |
| DIVER IC | ST7796S | |
| INTERFACE TYPE | SPI+RGB 18BIT | |
| TOP POLARIZER TYPE | ANTI-GLARE | |
| RECOMMEND VIEWING DIRECTION | 12 O'CLOCK | O'CLOCK |
| GRAY SCALE INVERSION DIRECTION | 6O'CLOCK | O'CLOCK |
| BACKLIGHT TYPE | 6-CHIP WHITE LED | |
| BRIGHTNESS |
360 typ cd/m² |
|
|
Backlight power |
0.36W |
|
| TOUCH PANEL TYPE | WITHOUT |

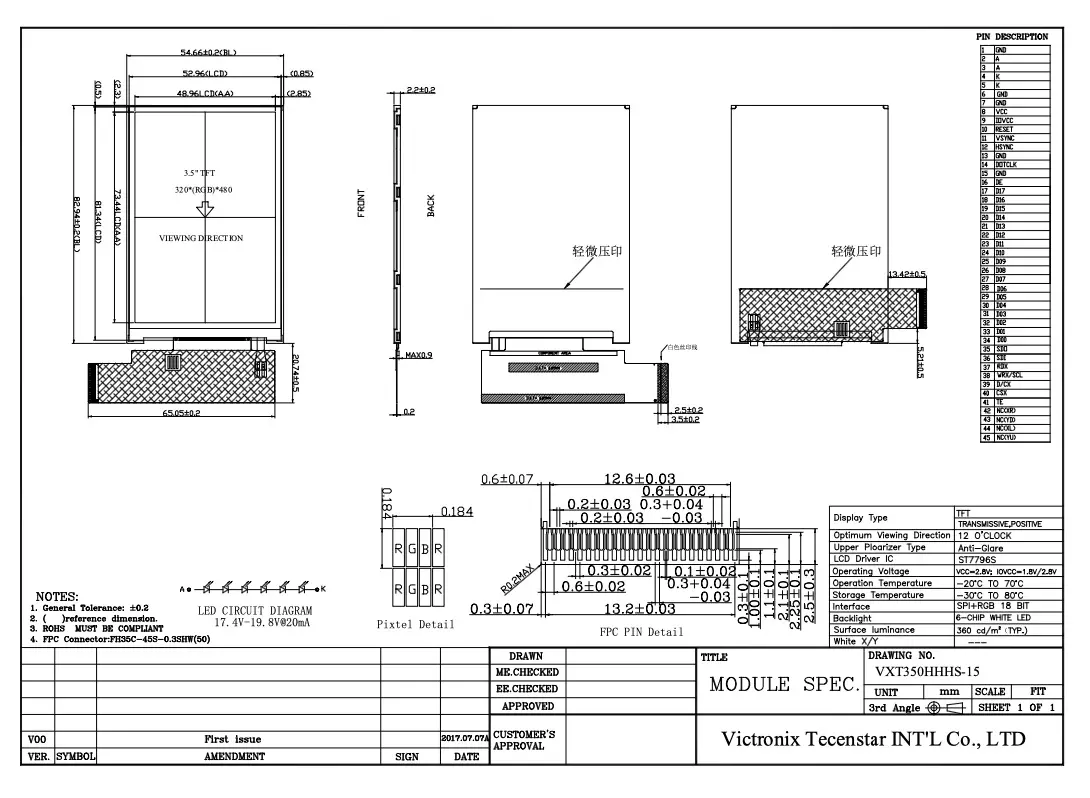

Mechanical Drawing
