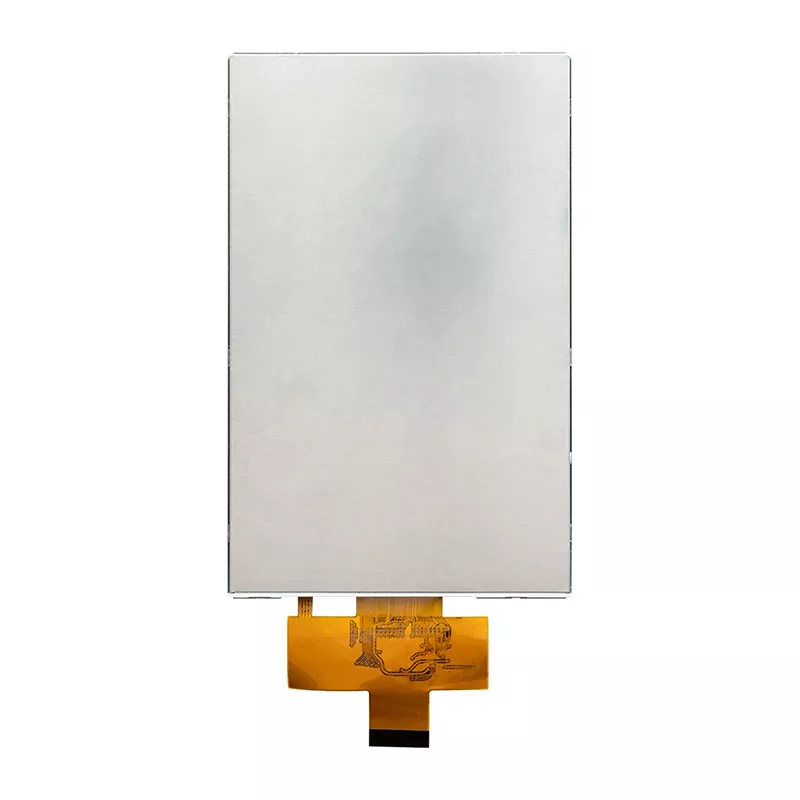

7 inch 800x1280 MIPI TFT Module

TFT Module is becoming more and more common in our lives. As a manufacturer and supplier of LCD in China, what are the advantages of this Victronix 7 inch 800x1280 MIPI TFT Module? At first, its wide viewing angle of 85° (H) / 85° (V) and its high contrast ratio of 850:1 make it more suitable for harsh industrial. Secondly, it has a high brightness of 1000 cd/m² and a 20-LED backlight system with a 50,000-hour lifespan (to 50% initial brightness) and 75% uniformity, ensuring that it can be used for clarity and hours of use in different lighting situations. Besides, it complies with key IEC/GB standards for reliability including high/low-temperature operation/storage, humidity, thermal shock, vibration, mechanical shock, and ESD protection (±8kV Air, ±4kV Contact) so that can operate seamlessly across an extended temperature range (-20°C to +70°C). In addition, it has a MIPI DSI interface (4 data lanes) supporting RGB 888/666/565 formats at 50–70 Hz refresh rates.

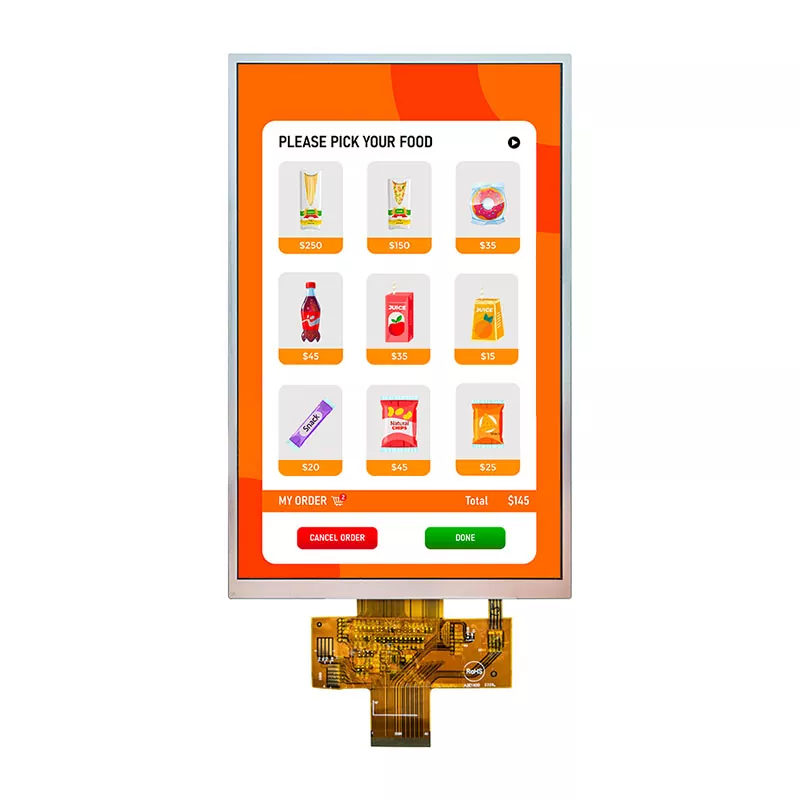

This Victronix 7 inch TFT Module is widely used in HMI, medical devices, portable instrumentation, and embedded systems requiring sunlight-readable displays.

General Specification

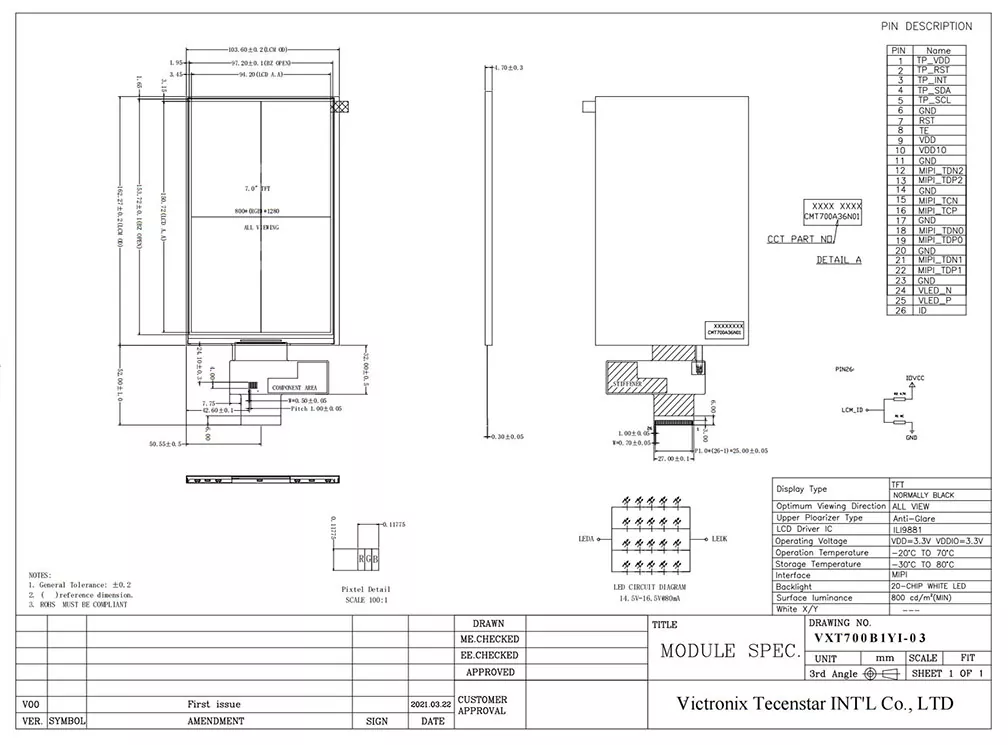

Outline Drawing
