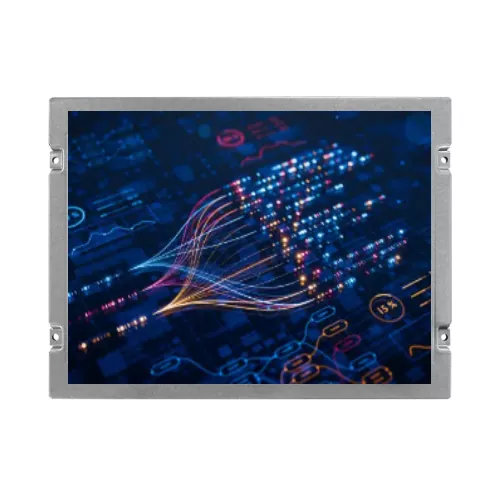

8.4 Inch High Brightness Wide Temperature TFT LCD

The VXT084XJWA-01 is an 8.4 inch XGA TFT LCD module with a 4:3 viewing area for instruments and monitoring interfaces. Wide viewing angles, adjustable backlighting and an extended operating temperature range support equipment integration.

Model:VXT084XJWA-01

Send Inquiry PDF DownLoad

Product Description

This 8.4 inch TFT display by Victronix is commonly used in Industrial HMIs, medical devices, fleet/vehicle systems, and outdoor equipment requiring all-weather readability and long-term reliability.

A Practical Layout for Instruments and Monitoring

The VXT084XJWA-01 offers a 4:3 display format for interfaces that combine measurement values, status indicators and graphical information. The balanced screen proportions suit instrument panels, monitoring equipment and embedded terminals.

Adjustable Illumination for Different Settings

PWM backlight control lets the host system adjust illumination for the installation environment. The module's specified temperature range also makes it an option for equipment exposed to seasonal or enclosure-temperature changes.

Plan Around the Display System

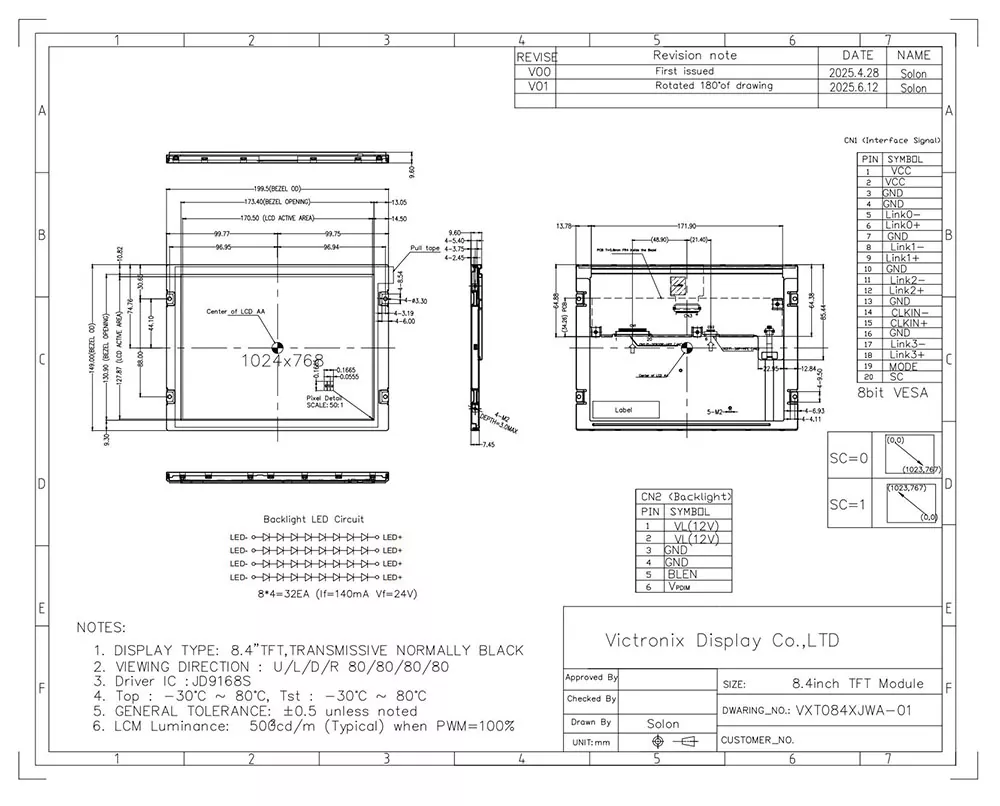

Separate display and backlight connectors simplify identification of signal and power connections during integration. Match the LVDS timing, supply requirements and scan direction to the host hardware, and use the mechanical drawing to check mounting clearance and cable access.

General Specifications

Model	VXT084XJWA-01
Display Type	IPS TFT LCD
Screen Size	8.4 inch
Resolution	1024 × 768 pixels (XGA)
Aspect Ratio	4:3
Display Colors	16.7 million
Touch Panel	Not included
Brightness	500 cd/m² (typ.); 400 cd/m² (min.), PWM = 100%
Contrast Ratio	1500:1 (typ.); 1000:1 (min.)
Response Time (Tr + Tf)	25 ms (typ.); 30 ms (max.)
Brightness Uniformity	80% (typ.); 75% (min.)
Color Gamut	65% NTSC (typ.)
Active Area (W × H)	170.496 × 127.872 mm
Outline Dimensions (W × H × T)	199.50 × 149.00 × 9.60 mm
LCD Driver IC	JD9168S
Display Interface	LVDS
Display Connection	20-pin connector
Scan Direction	Normal / reverse, selectable
LCD Supply Voltage	3.3 V (typ.); 3.0–3.6 V
LCD Supply Current	180 mA (typ.)
Backlight	White LED, 8 in series × 4 strings
Backlight Connection	12.0 V (typ.); 9.0–13.2 V
Backlight Supply Current	350 mA (typ., 12 V, PWM = 100%)
Backlight Power	4.2 W (typ., 12 V, PWM = 100%; backlight only)
Backlight Control	PWM dimming and enable input
PWM Frequency Range	100 Hz–30 kHz
Backlight Lifetime	50,000 hours (typ., to 50% initial brightness at 25°C, PWM = 100%)
Operating Temperature	-30°C to +80°C
Storage Temperature	-30°C to +80°C
