9.0 Inch 800x480 Landscape TFT LCD Module 24-Bit RGB - VXT900BWH-02

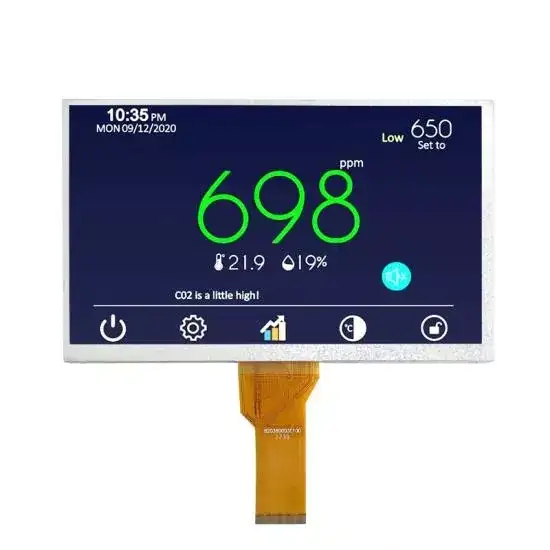

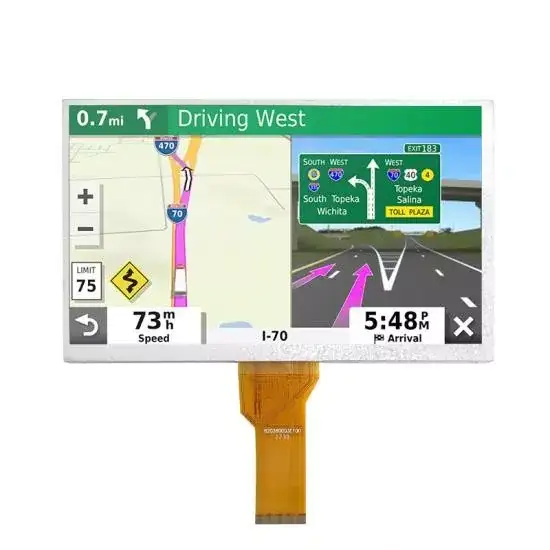

This Victronix 9 inch 800x480 TFT Module is a high-performance 9 inch TFT LCD module engineered for demanding industrial applications. Featuring an 800×480 RGB resolution and a 16:9 aspect ratio, it delivers crisp, vibrant visuals with an active display area of 198.0 × 111.7 mm (7.80 × 4.40 inches). The module leverages a 24-bit RGB interface and advanced driver ICs (HX8664-B + HX8264-E) for seamless integration and reliable signal processing.
Model:VXT900BWH-02
Send Inquiry PDF DownLoad
Product Description
General General Specification
| ltem | Contents | Unit |
|
Model |
VXT900BWH-02 |
|
| LCD TYPE | TFT/TRANSMISSIVE | |
| MODULE SIZE (W*H*T) | 210.70*126.5*5.1 | MM |
| ACTIVE SIZE(W*H) | 198*111.7 | MM |
| PIXEL PITCH(W*H) | 0.2208*0.207 | MM |
| NUMBER OF DOTS | 800*480 | |
| DRIVER IC | HX8664-B+HX8264-E | |
| INTERFACE TYPE | 24 BIT RGB | |
| TOP POLARIZER TYPE | ANTI-GLARE(SOFT FILM) | |
| RECOMMEND VIEWING DIRECTION | 12 | O'CLOCK |
| GRAY SCALE INVERSION DIRECTION | 6 | O'CLOCK |
| BACKLIGHT TYPE | 30-DIES WHITE LED | |
| TOUCH PANEL TYPE | WITHOUT |
