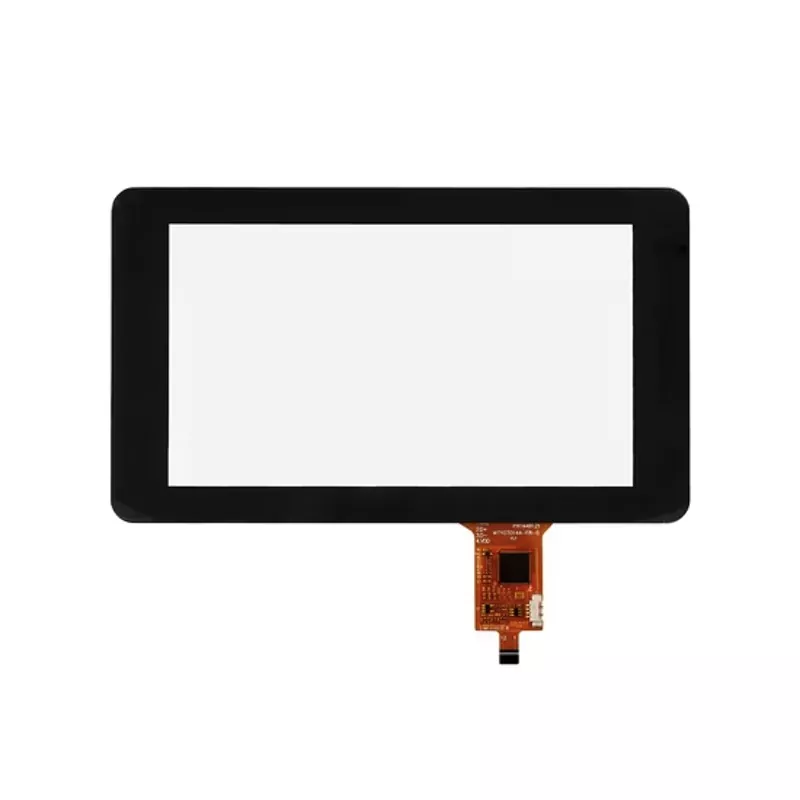

7.0 inch Projected Capacitive Touch Screen

7 inch TFT Module as a common size, what are the competitive advantages of the Victronix 7.0 inch Projected Capacitive Touch Screen? At first, its integrated FT5426DQ8 controller ensures responsive and accurate touch sensing through the I²C interface and supports true 5-point multi-touch intuitive interaction. Secondly, its high light transmission (≥85%) in the viewing area (154.6 x 91 mm) and scratch-resistant surface hardness of ≥7H provide customers with excellent clarity and durability. In addition, it is built with 0.7mm toughened cover glass bonded (LOCA) to a 0.55mm ITO glass sensor. Includes a durable ZIF connector FPC (Max thickness: 1.5mm). The Victronix 7.0 inch Projected Capacitive Touch Screen was rigorously tested to withstand extreme conditions and storage temperature from -30°C to +80°C. This Victronix 7inch touch screen is suitable for Industrial control panels, medical devices, kiosks, instrumentation, and any application requiring a reliable, high-clarity touch interface in challenging environments.

Model:CTP-T700IXN-06C

Send Inquiry PDF DownLoad

Product Description

What are the competitive advantages of the Victronix 7 inch Projected Capacitive Touch Screen in the competitive situation of TFT Module manufacturers? At first, its integrated ILI2511 controller ensures responsive and accurate touch sensing through the I²C interface and supports 5 simultaneous touch points. Secondly, its high light transmission (≥85%) in the viewing area (155.8×86.92 mm) and scratch-resistant surface hardness of ≥6H provide customers with excellent clarity and durability. In addition, the Victronix 7.0 inch Projected Capacitive Touch Screen was rigorously tested to withstand extreme conditions and operating temperature is from -20°C to +70°C.

This Victronix 7inch Touch Screen is suitable for industrial controls, medical devices, kiosks, and other applications requiring dependable touch performance under challenging conditions.

· Hardness ≥7H: Scratch-resistant toughened glass ensures long-term use even in harsh environments.

· Transmittance ≥85%: Crystal-clear view area (154.6mm x 91mm) enhances display visibility.

· 10-Point Multi-Touch: Supports intuitive multi-touch gestures for enhanced user interaction.

· I²C Interface: Simplified integration with host systems using the standard I²C protocol

· Flexible Voltage Range: Operates at 2.8–3.3V (VDD) and 2.8–3.3V (I/O), compatible with diverse electronic designs.

· ESD Protection: ±8kV (air) and ±2kV (contact) ESD immunity ensures stability in electrostatic environments.

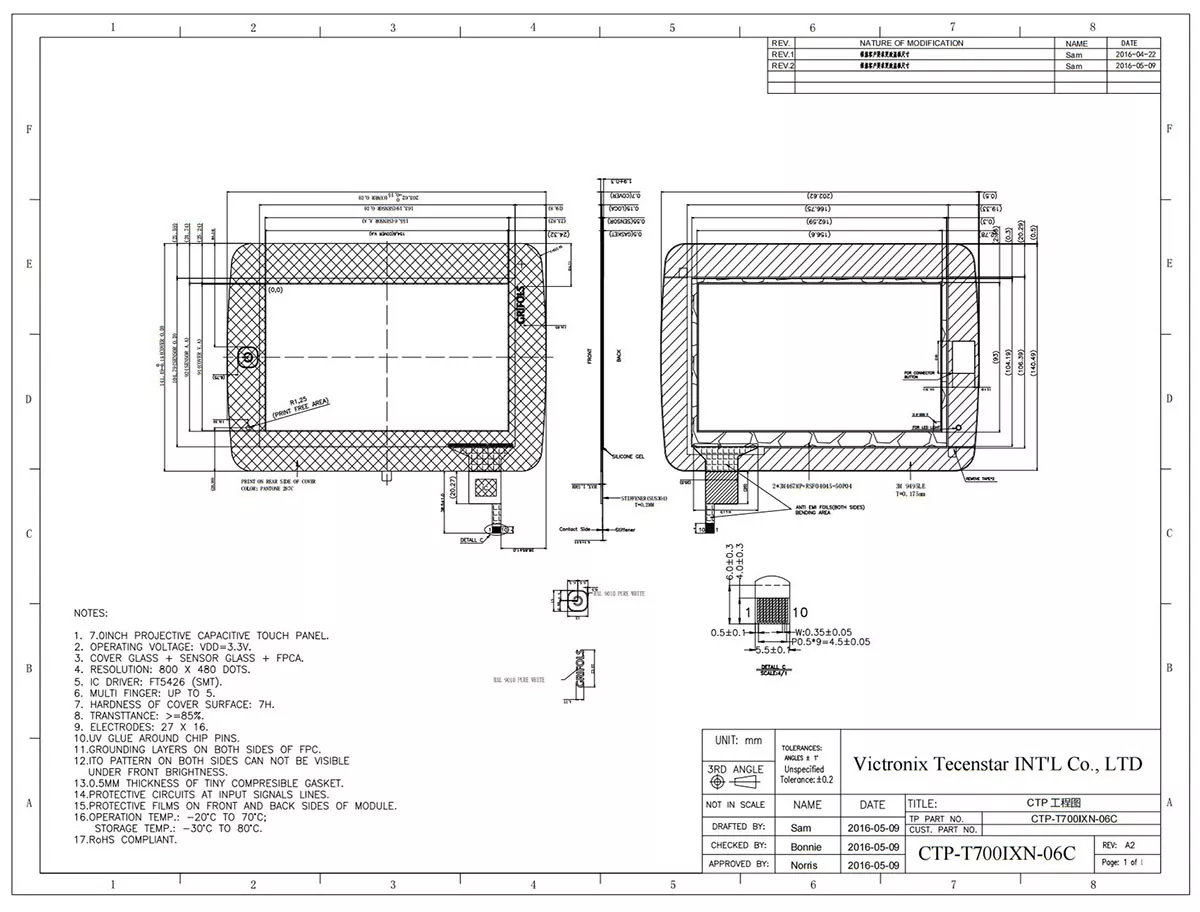

General Specification

Item	Contents	Unit
Structure	G+G
Outline dimension	203.62+0/-0.15*141.49+0/-0.15	mm
Outline dimension of sensor	163.19±0.2*104.79±0.2	mm
View area	154.6±0.2*91±0.2	mm
Drive IC	FT5426DQ8
Interface type	IC
IIC Address	0x70(8bit)
Supply voltage	2.8-3.3	V
I/O voltage	2.8-3.3	V
Number of touch point	5	point
Connector type	ZIF
Transmittance of view area	≥85%
Hardness	≥7H
