6 Digit VA Segment LCD Module with White Backlight

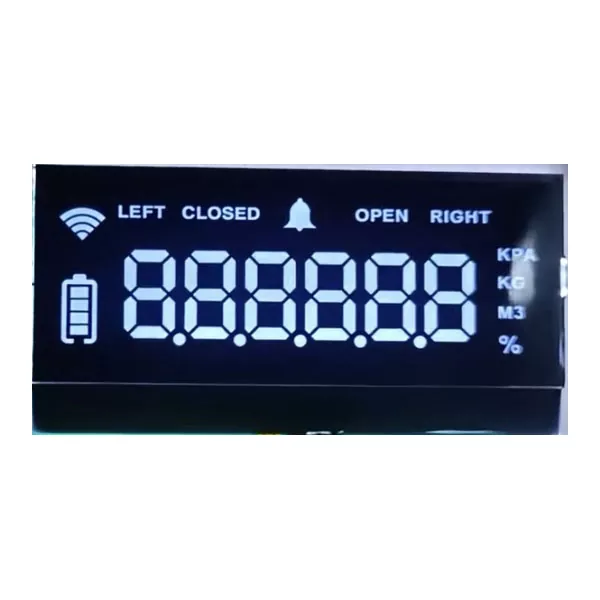

The VX50472 is a VA segment LCD module with six digits, dedicated status icons and a white LED backlight. A 64 × 32 mm outline, 3V LCD drive and COG + FPC construction support integration into compact instruments and control panels.

Model:VX50472

Send Inquiry PDF DownLoad

Product Description

Model	VX50472
LCD Type	VA segment LCD
Display Mode	Negative, transmissive
Display Format	6 digits with decimal points and dedicated icons
Viewing Direction	12 o'clock

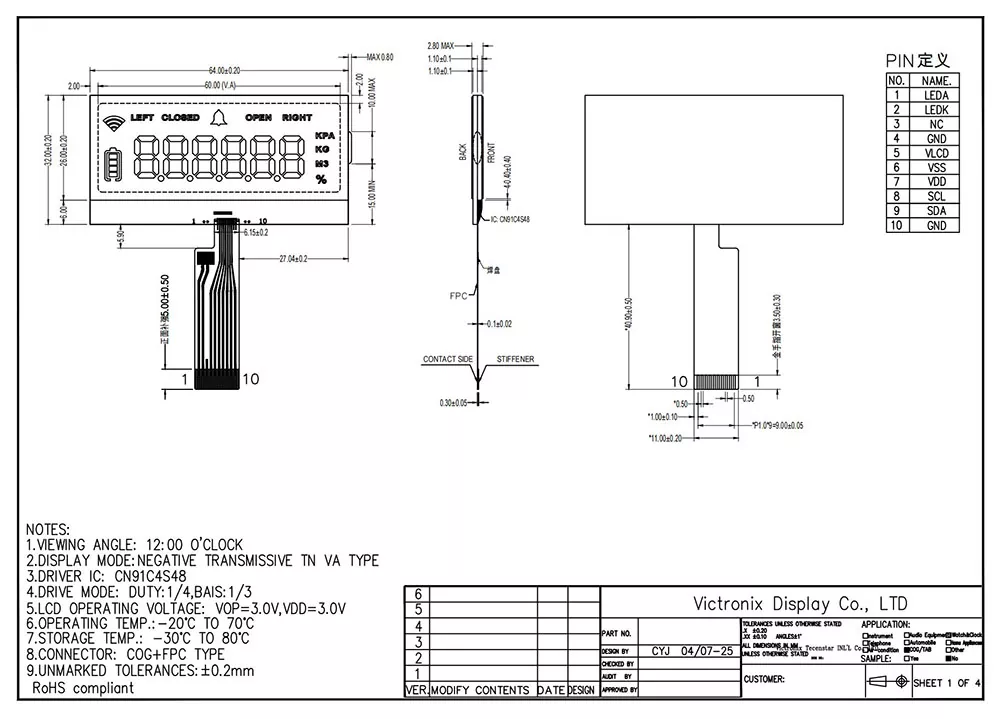

LCD Outline (W × H)	64.00 ± 0.20 × 32.00 ± 0.20 mm
Overall Thickness with Backlight	5.10 mm max.
Digit Size (W × H)	6.00 × 10.45 mm
Driver IC	CN91C4S48
Drive Duty	1/4 duty
Drive Bias	1/3 bias
LCD Operating Voltage (VOP)	3.0 V
Driver Supply Voltage (VDD)	3.0 V
Construction	COG + FPC
FPC Pin Count	10
FPC Contact Pitch	1.00 mm
Signal Pins	SCL, SDA

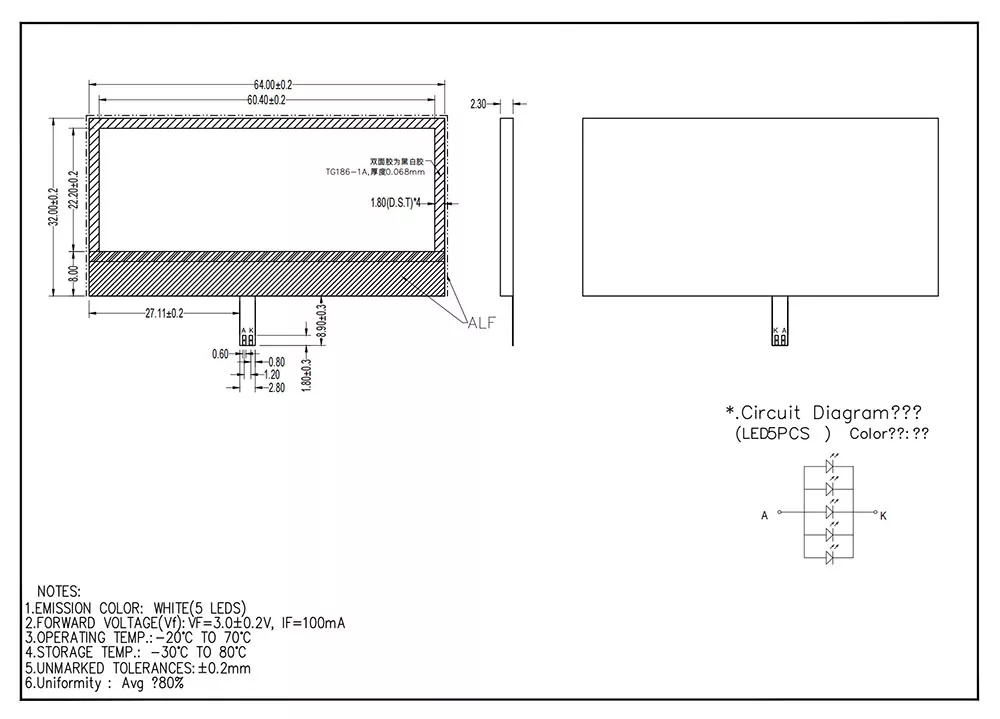

Backlight Color	White
Backlight Forward Voltage	3.0 ± 0.2 V at IF = 100 mA
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C
Compliance	RoHS compliant

Applications

The VX50472 VA segment LCD module can be evaluated for instruments and control panels that require numeric readings together with the available unit and status symbols. Potential uses include pressure readouts, weighing indicators, volume displays and equipment-status panels, subject to compatibility with the fixed segment layout.
