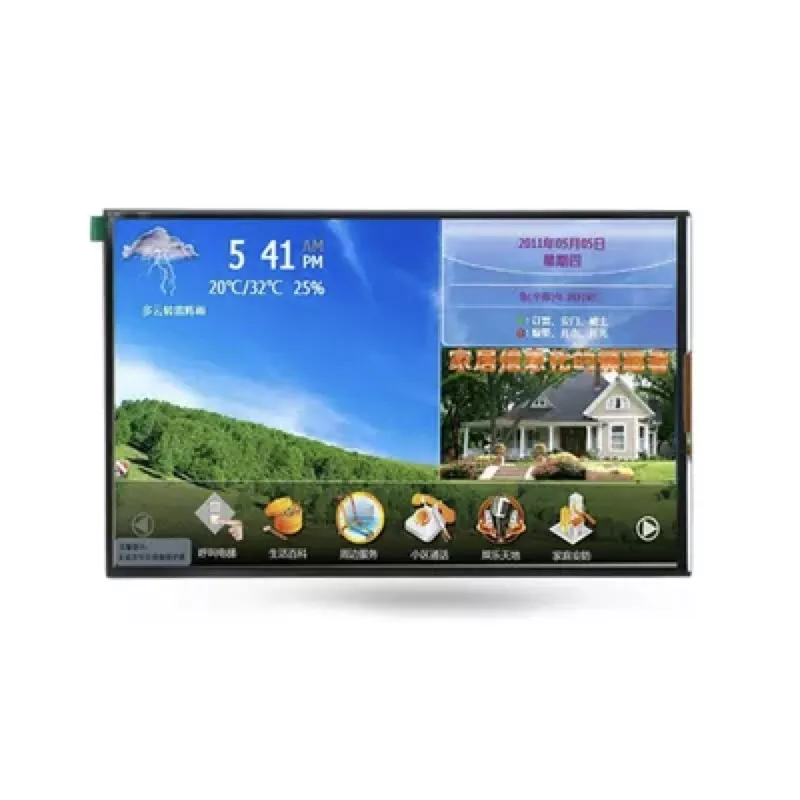

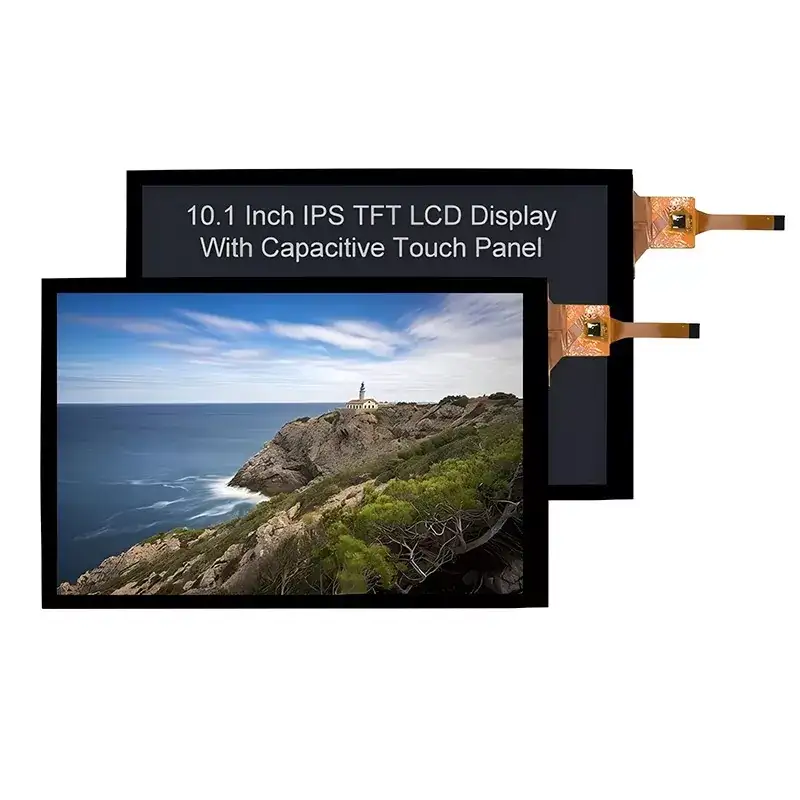

10.1 inch 800x1280 Capacitive Touch TFT Module

As the TFT Module is widely used in life, manufacturers and suppliers are increasingly. What makes the Victronix 10.1 inch 800x1280 Capacitive Touch TFT Module different from other manufacturers? At first, it has a 10.1-inch active area (135.36mm×216.58mm) with 800×(RGB) ×1280 resolution, delivering sharp images and supporting up to 16.7 million colors. Experience a typical brightness of 250 cd/m² and a high contrast ratio of 1000:1. Secondly, it integrates a capacitive touch panel (CTP) that supports 10-point multi-touch. Features high surface hardness (≥6H), excellent transparency (≥85%), and precise accuracy (±1.5mm center / ±2.5mm edge). Controlled by the IL12511 IC. Besides, its backlight control includes PWM signal (CABC) and dedicated LED+ / LED- pins (9V LED backlight, 3S10P white LED configuration, typical lifetime from 30,000 to 50,000 hours to 50% brightness, ensuring clear visibility in all lighting conditions. In addition, it passes rigorous environmental testing including High/Low-Temperature Storage & Operation, Temperature Cycling, and High Temperature/Humidity Operation, ensuring operates reliably within an extensive temperature range of -10°C to +50°C and withstands storage under the same harsh conditions.

This Victronix 10.1 inch TFT Module is suitable for Human-Machine Interfaces (HMIs), industrial control panels, portable medical devices, test and measurement equipment, point-of-sale systems, and any application requiring a reliable, high-quality touch display in challenging environments.

General Specifications

VXT101YIA-19C is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,CTP and a back light unit. The 10.1¢¢ display area contains 800 x (RGB) x 1280 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion..

Note 1: Color tune is slightly changed by temperature and driving voltage.

Note 2: Without FPC and Solder.

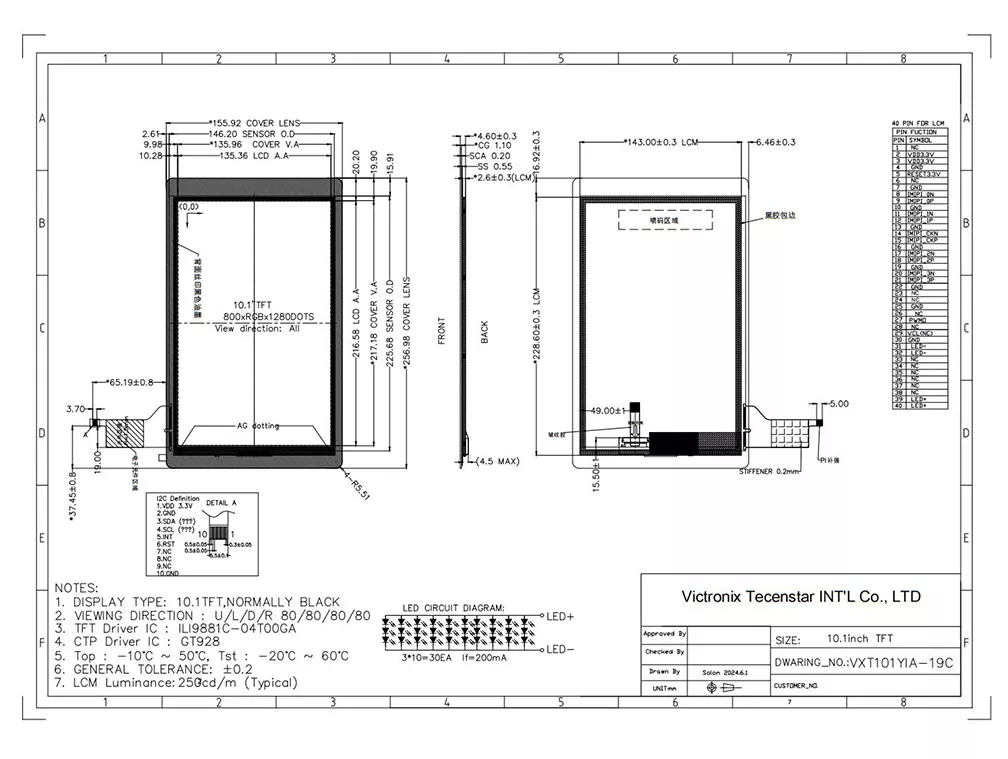

Mechanical Drawing
