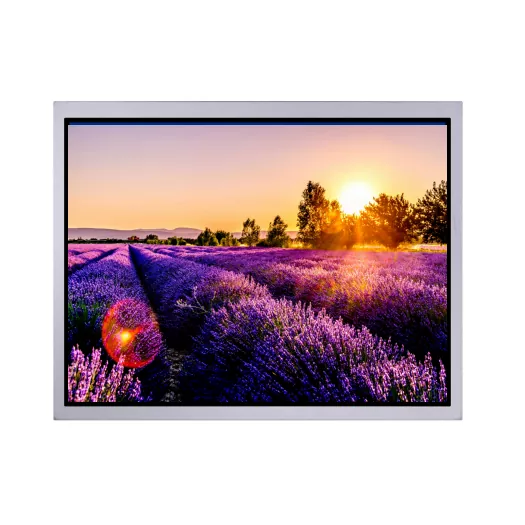

10.4 Inch High Brightness XGA TFT LCD Module
The VXT104QXHA-03 is a 10.4 inch XGA TFT LCD module with high brightness, wide viewing angles and PWM backlight control. Its LVDS interface and wide operating temperature range suit integration into industrial equipment and embedded display systems.
Model:VXT104QXHA-03
Send Inquiry PDF DownLoad
Product Description
High Brightness and Wide Operating Temperature for Equipment Interfaces
The VXT104QXHA-03 TFT LCD module offers high brightness for equipment interfaces used in bright ambient conditions. Wide viewing angles help operators read menus, process graphics and status information from different positions, while PWM backlight control allows brightness adjustment to suit the installation.
Integration Considerations
Selectable LVDS input modes support matching to compatible host hardware. Separate LCD and backlight power connections, together with backlight enable and dimming controls, support integration into the equipment's display system. Confirm connector compatibility, signal timing and enclosure clearance against the mechanical drawing before finalizing the design.
Customization Options
The module can be configured with: Projected capacitive or resistive touch, Custom cover glass shape, thickness and printing, Anti-glare or anti-reflective surface treatment, Optical bonding or air bonding, Custom FPC and connector position, Backlight adjustment, Controller board and interface conversion. These options are evaluated according to the final equipment rather than treated as standard features of the TFT module.Typical Applications
The 10.4-inch 4:3 format is suitable for:- Industrial HMIs and control panels
- Factory automation equipment
- Measurement and monitoring systems
- Transportation equipment
- Outdoor-facing embedded equipment
Final selection should be confirmed against the required interface, available installation space, ambient light, operating temperature and touch configuration.
General Specifications
| Item | Contents | Unit | Note |
| LCD Type | TFT | - | |
| Display color | 16.7M | ||
| Viewing Direction | ALL | O’Clock | |
| Contract Ratio | 1000:1 | Typ | |
| Operating temperature | -30~+80 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |
| Module size | 10.4 | inch | |
| Active Area(W×H) | 210.43x157.82 | mm | |
| Number of Dots | 1024x768 | dots | |
| Power Supply Voltage | 3.3 | V | |
| Outline Dimensions | 238.60x175.80x6.45 (9.20 Max) | mm | |
| Backlight | 2x13-LEDs (white) | pcs | |
| Brightness | 1000 | cd/ m2 | |
| Backlight Dimming | 1-100 | % | |
| Interface | 6/8BIT LVDS | - |

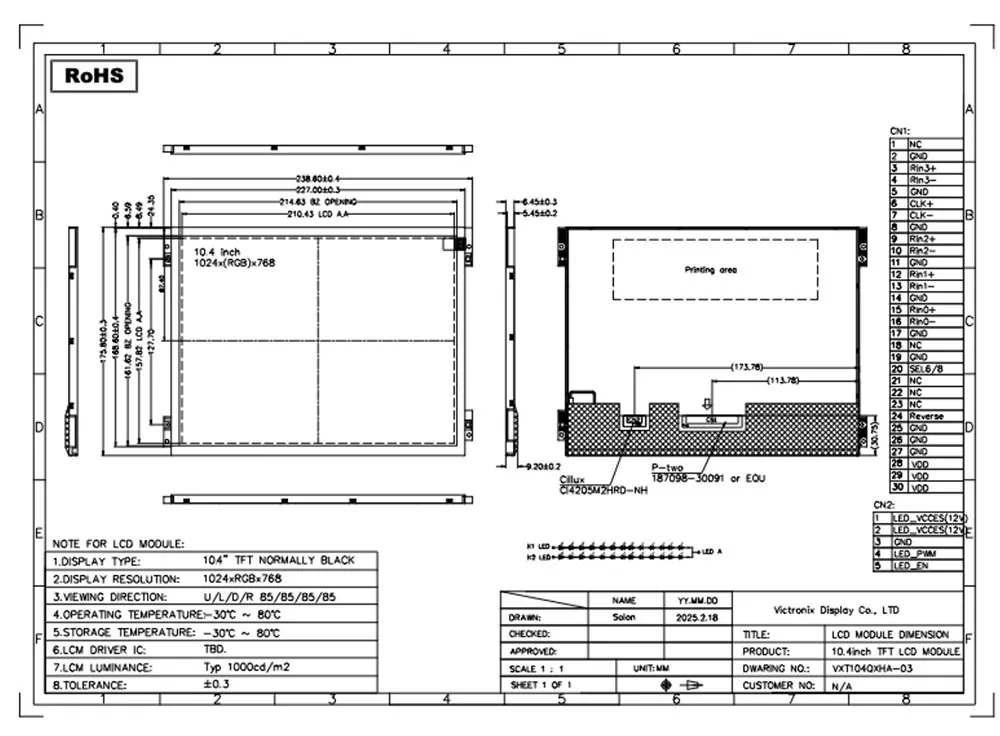

Outline Drawing
