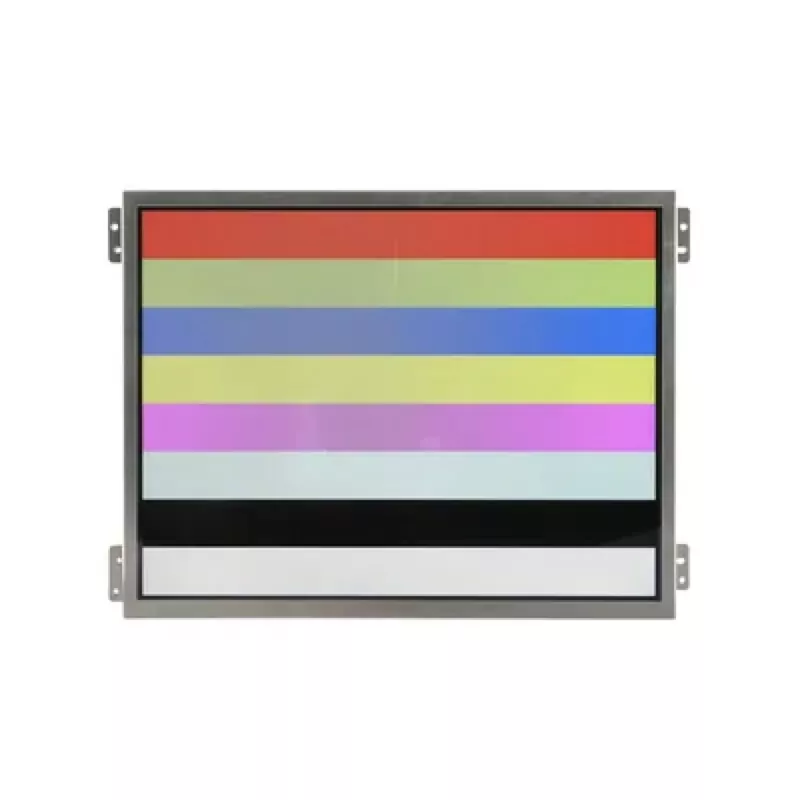

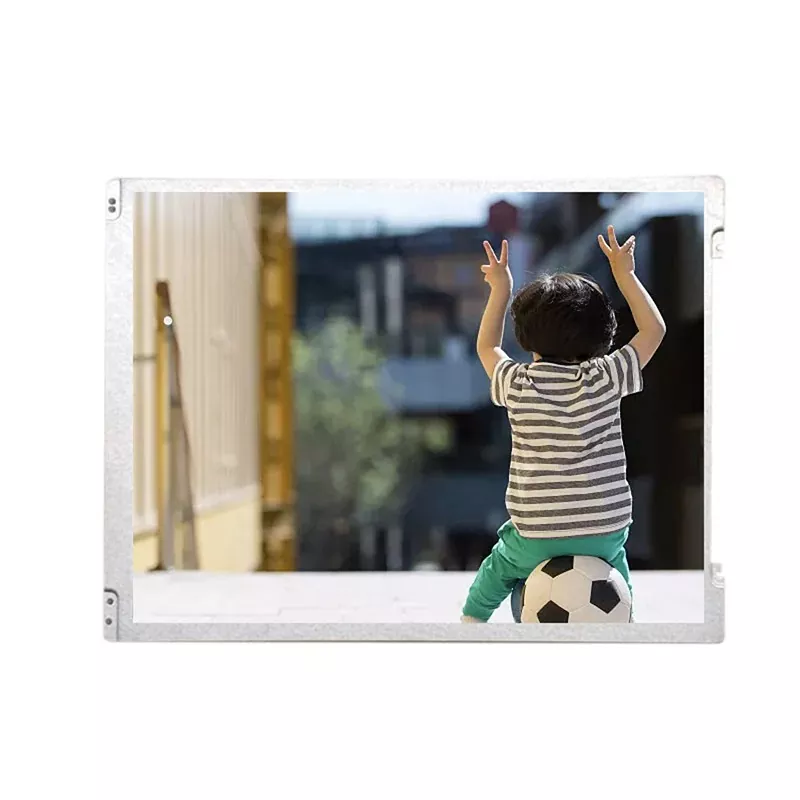

10.4 inch 800x600 TFT Module

Victronix is a professional TFT module manufacturer and supplier in China. We have been in this field for 18 years and developed several models. We offer a customized service to meet the needs of our customers. This Victronix 10.4 inch 800×600 TFT Module is a high-performance 10.4 inch 800x600 TFT Module engineered for demanding environments. Featuring an 800×600 RGB resolution and supporting 262K colors, this display delivers crisp, vibrant visuals with wide viewing angles (70° at 3/6/9 o’clock, 60° at 12 o’clock).

Model:VVXT104BGH-01

Send Inquiry

Product Description

As the TFT Module is widely used in life, manufacturers and suppliers are increasingly. What makes the Victronix 10.4 inch 800x600 TFT Module different from other manufacturers? At first, its 400cd/m² typical brightness with 80% uniformity and 400:1 contrast ratio ensure vivid imagery. Secondly, it not only supports an LVDS interface but also integrates a 6S6P LED system with a 50,000-hour lifespan (50% brightness retention) to ensure be used for long-lasting in different industrial situations. Besides, it passes rigorous environmental stress tests (thermal shock, humidity, drop resistance) to operate reliably in extreme temperatures (-10°C to +60°C).

This Victronix 10.4 inch TFT Module is suitable for advertising machines, robots, smart homes, notebooks, digital camera applications, industrial equipment devices, and other electronic products that require high-quality flat panel displays and excellent visual effects.

General Specification

VXT104BGH-01 is a TFT-LCD moduIe. It is Composed of a TFT-LCD paneI, driVer IC, FPC, PCB ,a baCk Iight unit . The 10.4,, dispIay area Contains 800 x (RGB) x 600 pixeIs and Can dispIay up to 262K CoIors. This produCt aCCords with ROHS enVironmentaI Criterion.

Item	Contents	Unit	Note
LCD Type	TFT
Display color	262K		1
Viewing Direction	12	O'Clock
Gray inversion	6	O'Clock
Operating temperature	-10~+60	℃
Storage temperature	-20~+70	℃

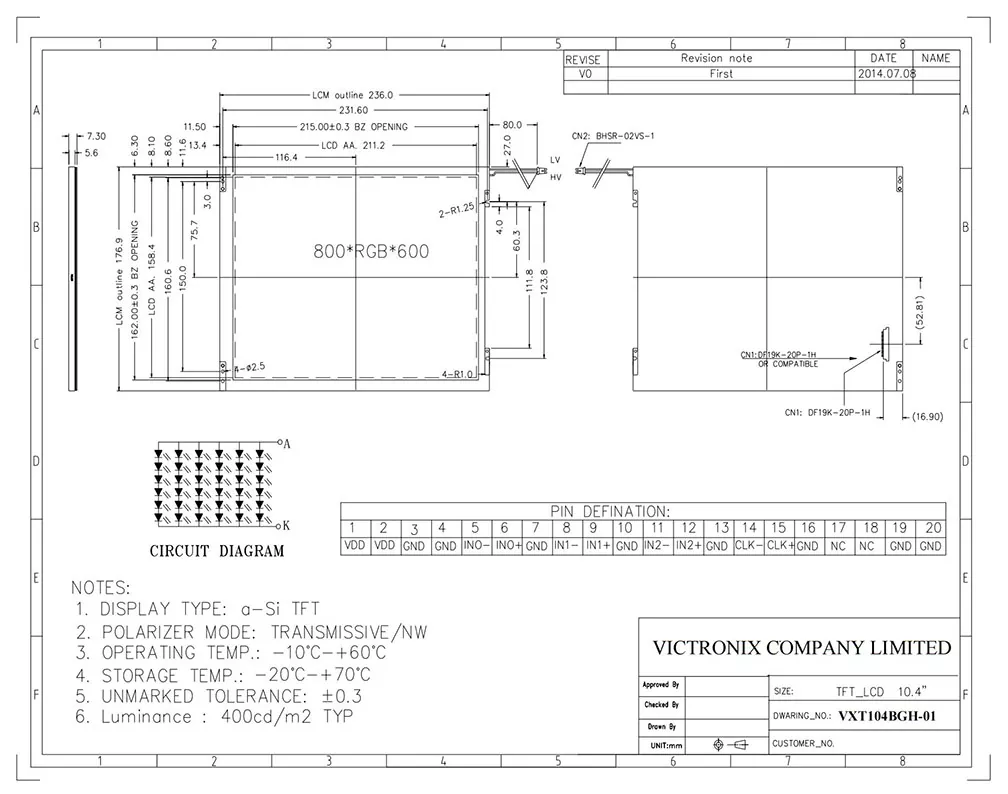

Module size	236.00X176.90X7.30	mm
Active Area(W×H)	211.20X 158.40	mm
Number of Dots	800X600	dots
Power Supply Voltage	3.3	V
Backlight	6S6P-LEDs (white)	pcS
Weight	---	g
Interface	LVDS	-
