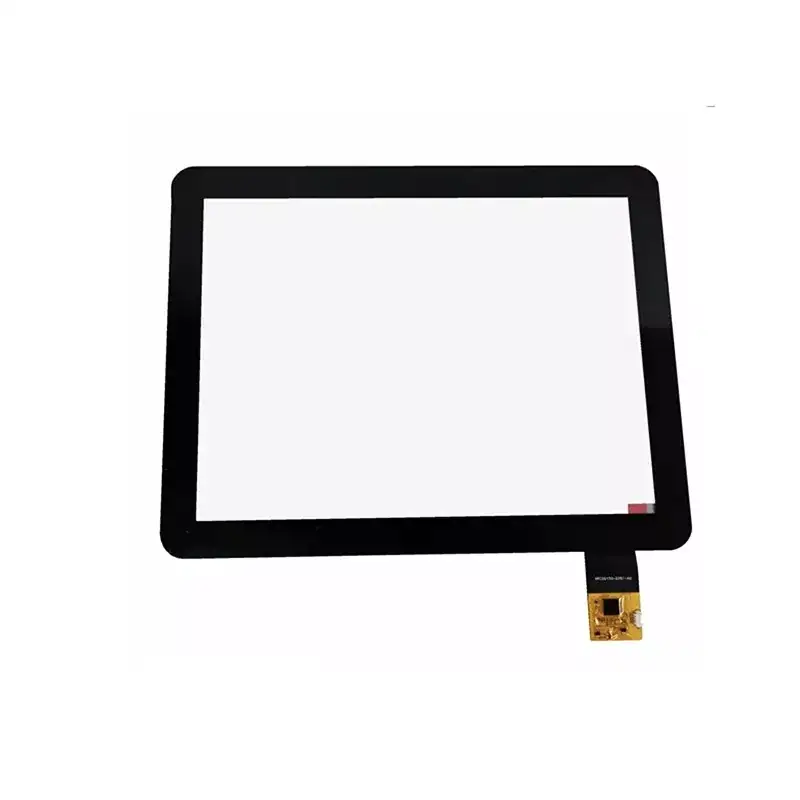

10.4 Inch G+G Capacitive Touch Panel for 1024x768 Industrial Displays - CTP-VX104B5747-GG

The Size That Outlived Its Era

10.4 inches is not a fashionable size any more, and that is precisely why it stays in demand. It was the industrial standard for well over a decade, and the installed base is enormous.

• CNC machine controls — a large share of machine tool controllers were built around 10.4-inch panels, and those machines run for twenty years or more.
• Medical and laboratory equipment — patient monitors, analysers and diagnostic instruments with long service lives and long regulatory re-approval cycles.
• Industrial HMIs and PLC panels — operator interfaces mounted in control cabinets, where the enclosure is drilled for a specific panel.
• Test and measurement — bench instruments where the front panel layout is fixed.
• Process control and SCADA terminals — plant-floor screens that cannot be re-tooled without a shutdown.

G+G for Equipment That Runs Longer Than Expected

Equipment built around a 10.4-inch panel tends to stay in service far longer than anyone planned, which is worth factoring into the panel you fit.

• At least 6H surface hardness, so it survives the daily contact and cleaning that a shop-floor or clinical panel gets for a decade.
• Glass does not yellow under UV and does not creep at temperature — matters for panels near windows or in unconditioned spaces.
• Calibration holds. A rigid glass sensor keeps its geometry, so touch accuracy does not drift as the stack flexes and ages.
• At least 85% transmittance, so an older, dimmer display does not lose more brightness than it has to.

Impact testing is specified by glass type and thickness — AGC at 64 g across 40 to 80 cm, or Corning at 130 g across 50 to 100 cm, with Corning clearing roughly 2.5 to 3.3 times the impact energy at equal thickness. Full conditions are on our 23.8-inch touch panel page. For industrial equipment, Corning is usually worth specifying. Note: these are sample tests on five pieces per configuration, not a per-unit guarantee.

General Information

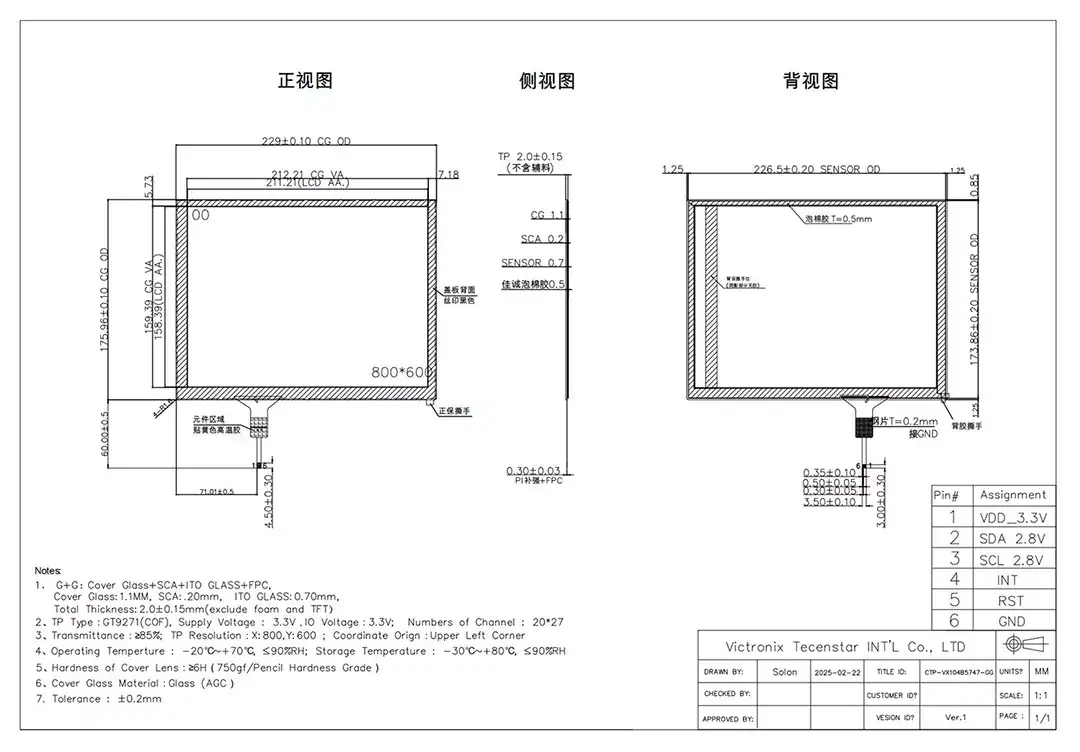

Outline Drawing
