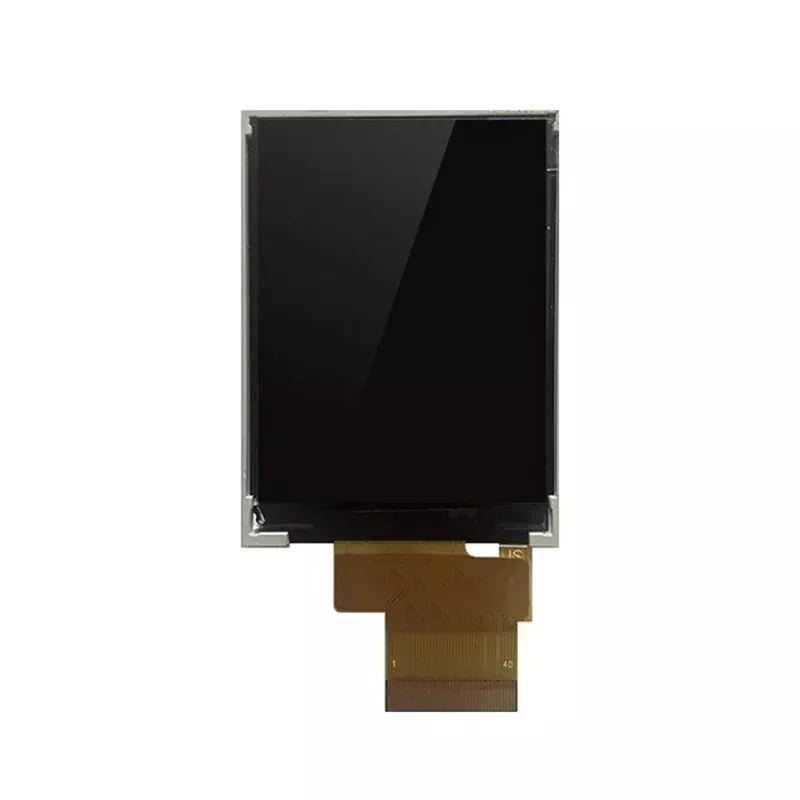

2.8 Inch 240x320 Portrait TFT LCD Module 16-Bit MCU - VXT280CQI-02
The VXT280CQI-02 is a 2.8-inch 240 x 320 portrait TFT LCD module on a 16-bit 8080 MCU bus,The colour depth is stated outright at 65K, which most specifications leave blank. The diagonal runs over rather than short: 43.20 x 57.60 mm gives exactly 72.0000 mm, or 2.8346 inches against a nominal 2.8, a margin of 1.2 per cent - the widest in this range. The backlight is four white LEDs in parallel, one anode and four cathode pins, at 3.2 V and 60 mA, which is 15 mA per LED against a 30 mA absolute maximum.
Model:VXT280CQI-02
Send Inquiry PDF DownLoad
Product Description
Where It Gets Used
- Handheld and portable field instruments — 150 KB fits a microcontroller with no external RAM, and 2.40 mm leaves room for a battery.
- Industrial HMI and machine control panels — a 6 o'clock viewing direction is fine on a panel mounted at a known height.
- Medical devices and portable monitors — thin, light, and cheap to drive from a small host.
- Point-of-sale and payment terminals — a 4:3 portrait column for a scrolling list or a receipt view.
- Test and measurement equipment — square pixels keep scales, traces and dial graphics true.
- Kiosk, vending and ticketing terminals — indoor, at 200 cd/m².
- Access control, intercom and door panels — a vertical interface in a narrow cut-out.
- Marine instrument consoles and vehicle dashboards — shaded cabins and consoles.
- Smart home control panels — wall-mounted at a known height, so the viewing direction is under your control.
- Microcontroller projects and retrofits — 150 KB fits internal SRAM, an 8080 bus is widely supported, and the published timing makes configuration straightforward.
- Long-service-life products — 15 mA per LED is half the rated current, which is the cheapest reliability decision available.
General Specification
| Item | Contents | Unit |
|
Model |
VXT280CQI-02 |
|
| LCD TYPE | TFT/TRANSMISSIVE | |
| MODULE SIZE(W*H*T) | 50.00*69.20*2.40 | MM |
| ACTIVE SIZE(W*H) | 43.20*57.60 | MM |
| PIXEL PITCH(W*H) | 0.180*0.180 | MM |
| NUMBER OF DOTS | 240*320 | |
| DIVER IC | ILI9341V | |
| INTERFACE TYPE | 16BIT MCU | |
| TOP POLARIZER TYPE | ANTI-GLARE | |
| RECOMMEND VIEWING DIRECTION | 6 | O'CLOCK |
| GRAY SCALE INVERSION DIRECTION | 12 | O'CLOCK |
| COLORS | 65K | |
| BACKLIGHT TYPE | 4-DIES WHITE LED | |
| TOUCH PANEL TYPE | WITHOUT |

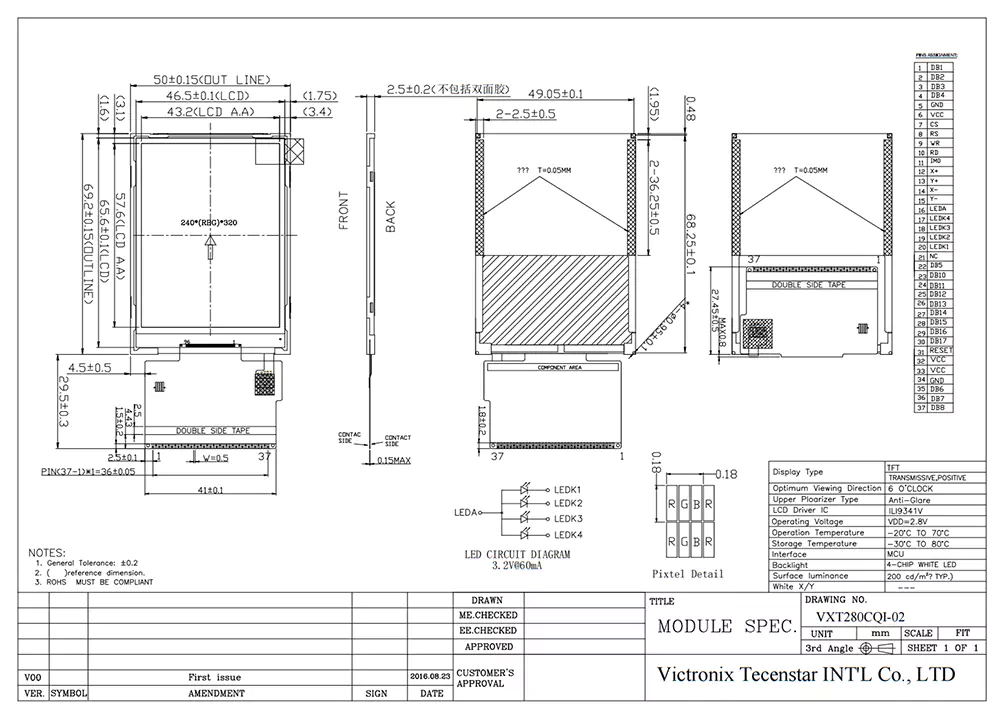

Mechanical Drawing
Hot Tags: 2.8 inch TFT LCD, 240x320 TFT display, portrait TFT LCD module, 16-bit MCU TFT module, 8080 interface TFT display, ILI9341V TFT display, 65K colour TFT display, 141 PPI TFT display, 200 cd/m2 TFT display, tearing free MPU interface, anti-glare TFT display, 6 o'clock viewing direction display, 150 KB frame buffer display, 2.4 mm thin TFT module, TFT display for handheld instrument, Victronix TFT LCD
