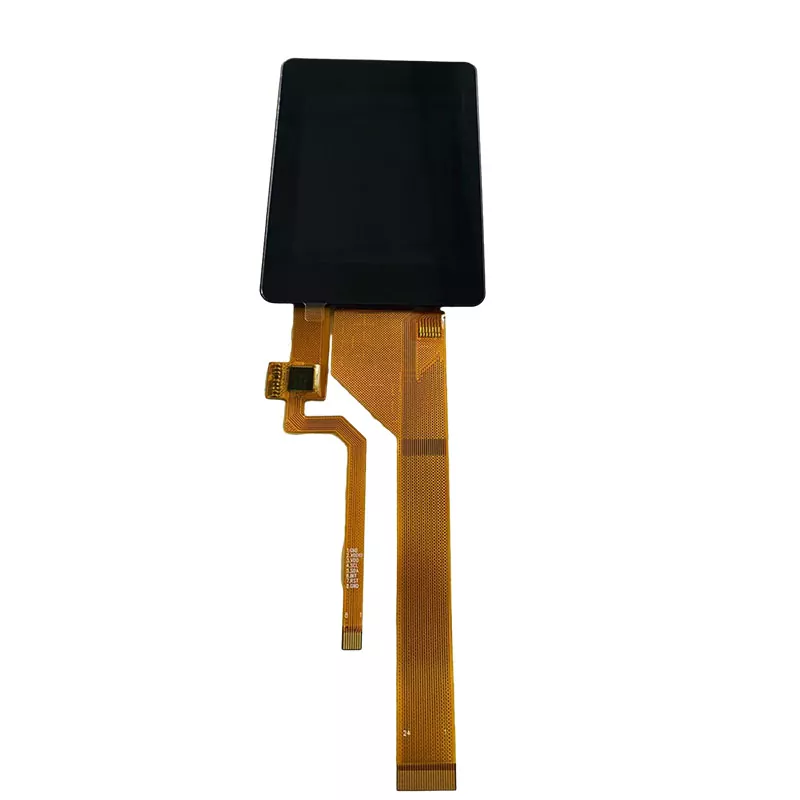

2.8 inch QVGA Capacitive Touch TFT Module

In the age of intelligence, TFT MODULE helps us to present the required data in the form of images. The quality of the TFT module has a critical impact on its application. What are the advantages of the 2.8 inch QVGA Capacitive Touch TFT Module? At first, it offers a typical brightness of 420 cd/m² wide viewing angles of 80° horizontal/vertical, and a contrast ratio of 800:1, ensuring excellent readability from various angles. Secondly, it integrates a backlight unit utilizing 6-die white LED with a typical lifetime of 50,000 hours (to 50% initial brightness), ensuring clear visibility in all lighting conditions. Besides, it supports a 5-point capacitive touch (G+G structure) via FT5446 controller (I²C interface, address 0×70), ≥85% transmittance, and 6H surface hardness ensure durability. In addition, it passes rigorous environmental testing, including ESD (±4kV), thermal shock, vibration, and humidity (per IEC/GB standards), ensuring it can operate seamlessly across an extended temperature range (-20°C to +70°C).

This 2.8 inch TFT display by Victronix is commonly utilized in Industrial HMIs, medical devices, portable instrumentation, IoT control panels, and any embedded system requiring sunlight-readable displays with reliable touch interaction.

General Specification

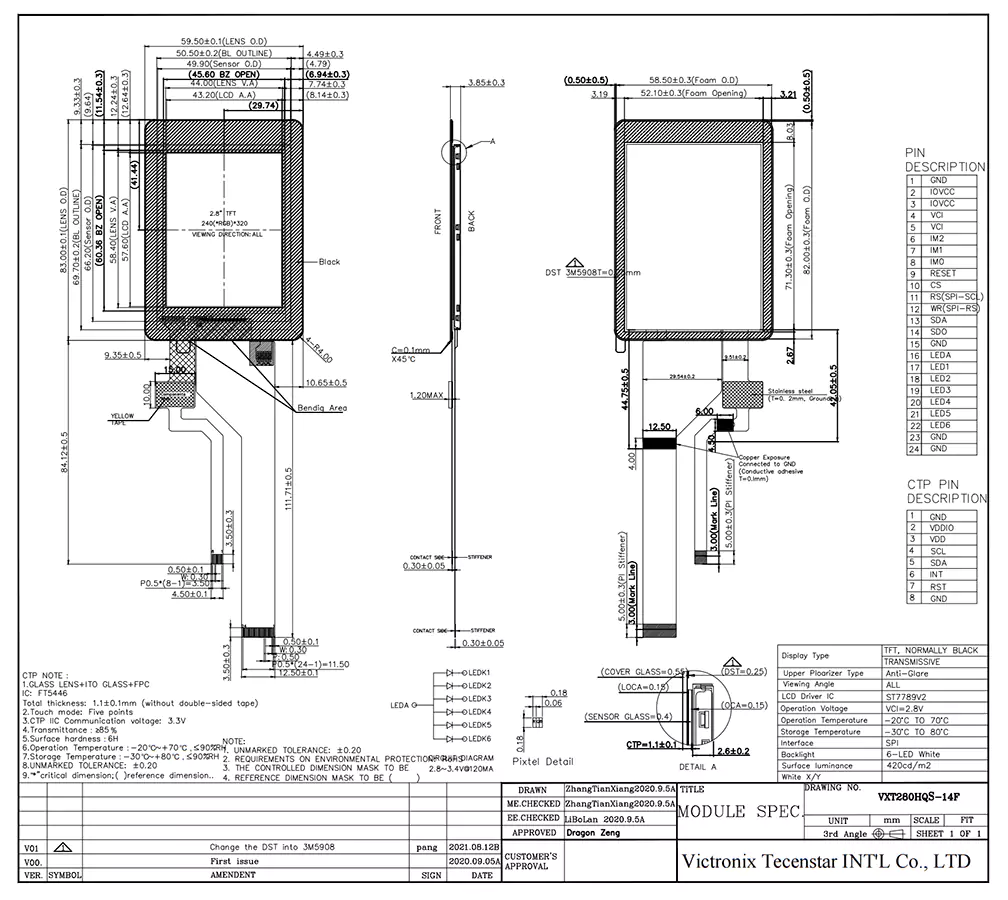

Mechanical Drawing
