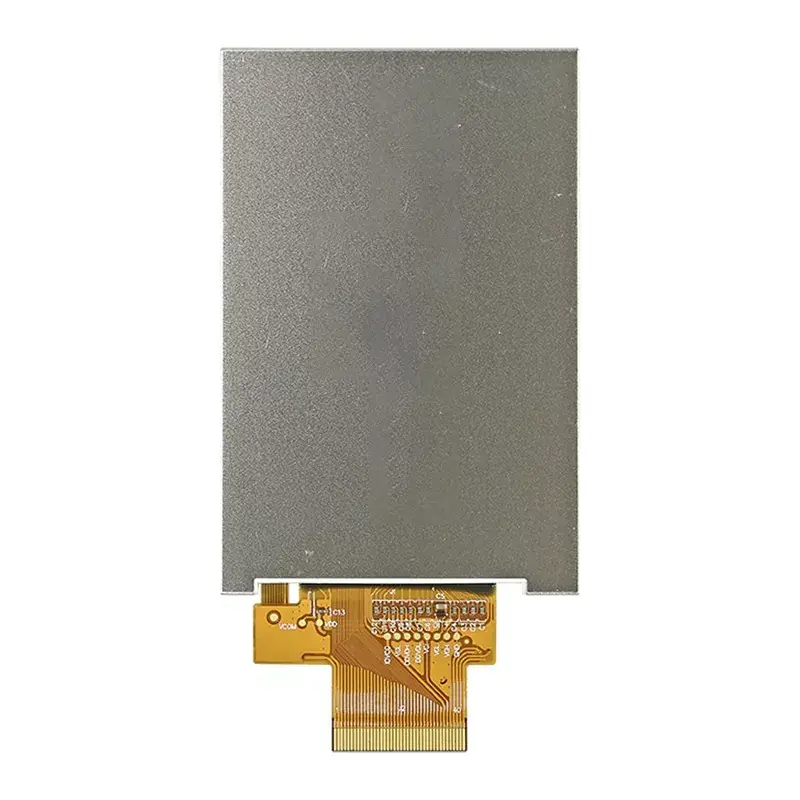

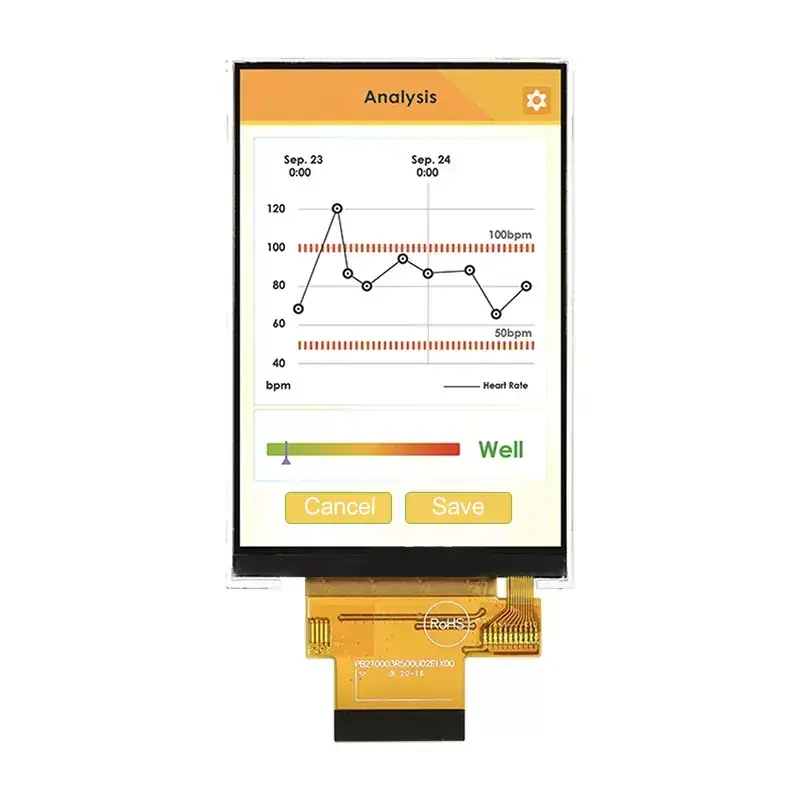

3.5'' 320x480 IPS TFT Module

In the age of intelligence, the TFT module enables us to present the required data visually. The quality of the TFT module has a critical impact on its application. What are the advantages of the Victronix 3.5'' 320×480 IPS TFT Module? At first, its 400 cd/m² brightness, 700:1 contrast ratio, 80° viewing angles in all directions, and 80% uniformity ensure vivid imagery. Secondly, it supports SPI + 18-bit RGB interfaces,  an HX8357D controller, and a 6-die white LED backlight with a lifetime of 30,000 to 50,000 hours, ensuring its long-term usability in various industrial applications. Besides, it complies with RoHS standards and successfully passes rigorous reliability tests, including thermal shock, humidity, and ESD protection up to 8kV air and 4kV contact. This product operates efficiently in extreme temperatures ranging from -20°C to +70°C.

This 3.5 inch TFT module from Victronix is designed for medical devices, industrial HMI, test equipment, portable instruments, and embedded systems requiring sunlight-readable, wide-temperature performance.
