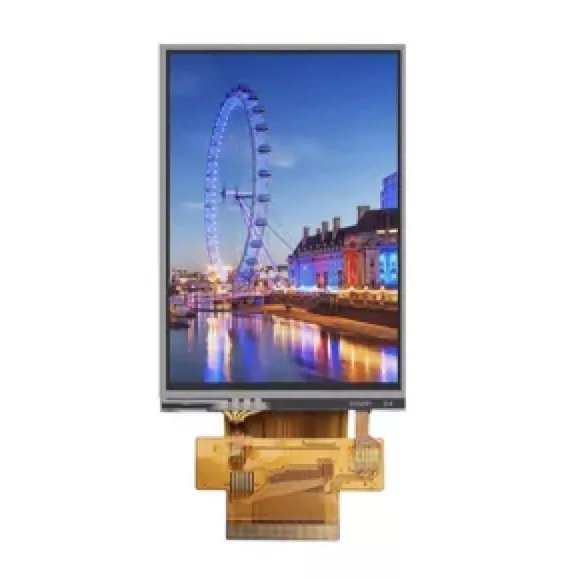

3.5 Inch 320x480 TFT LCD Module SPI + 18-Bit RGB Interface - VXT350HHS-15
3.5" 320x480 portrait TFT LCD, 2.2 mm thin, 360 cd/m2 with floor and ceiling. SPI + 18-bit RGB, TE out, 1.65 V logic. This 3.5 inch TFT display by Victronix is commonly used in industrial HMI, medical diagnostics, portable instrumentation, and embedded control systems.
Model:VXT350HHH-15
Send Inquiry PDF DownLoad
Product Description
General Information
| Item | Value |
|---|---|
| Model | VXT350HHS-15, VER.01 |
| LCD type | TFT / Transmissive |
| Controller | ST7796S (Sitronix, COG) |
| Colours | 262K |
| Viewing direction | 12 o'clock |
| Grey scale inversion | 6 o'clock |
| Operating temperature | −20 to +70 °C |
| Storage temperature | −30 to +80 °C — properly wider |
| Module size | 54.66 × 82.94 × 2.2 mm — thinnest in this range |
| Active area | 48.96 × 73.44 mm — 35.95 cm² — portrait |
| Resolution | 320 × 480 — native portrait |
| Interface | SPI + 18-bit RGB |
| Brightness | 280 min / 360 typ / 440 max cd/m² — both ends |
| Contrast | 350 min / 500 typ |
| Response | TON + TOFF 30 ms typical — one row |
| Viewing angle | Hor 70/70; Ver 70 / 60 — asymmetric vertically |
| Uniformity | 80% min / 85% typ |
| CIE 1931 | All eight, ± 0.020 — W 0.280/0.335, R 0.604/0.369, G 0.324/0.615, B 0.142/0.114 |
| Backlight | 6 LEDs — 6S1P, 3.2 V per LED, 20 mA |
| Backlight voltage | 17.4 / 19.2 / 19.8 V — confirmed by the drawing |
| Backlight current | 20 mA — typical only |
| Backlight power | 0.384 W — stated, matches exactly |
| Backlight life | 30,000 h min / 50,000 h typ |
| MTBF | 50,000 hours |
| Packing | 216 pcs per carton |
Where It Gets Used
- Handheld and portable field instruments — 2.2 mm deep, 300 KB frame buffer, and a 0.384 W backlight for battery life.
- Wall-mounted smart home and building control panels — a thin portrait module sits almost flush.
- Portable medical and laboratory devices — monitors, testers and analysers where brightness has a stated floor.
- Industrial handheld terminals and PDAs — SPI for setup, RGB for video, TE for tear-free updates.
- Test and measurement equipment — square pixels keep scales and labels true.
- Access control and intercom panels — a 3.5-inch portrait panel is a natural fit for a door station.
- Point-of-sale and handheld payment terminals.Smart home controllers and room panels — 1.65 V logic pairs with modern low-voltage MCUs.
- Factory automation sub-panels and programmers — −20 to +70 °C covers indoor industrial ambient.
- Retrofits of existing 3.5-inch 320 × 480 equipment — a widely deployed format still in service.

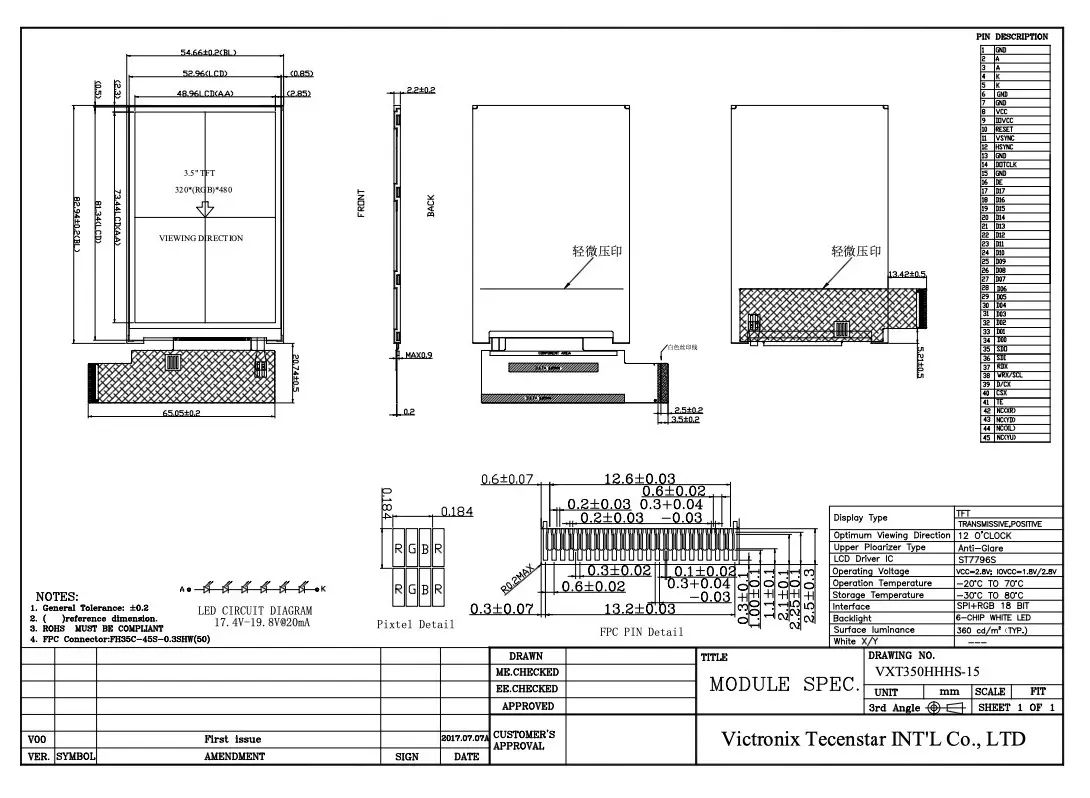

Outline Drawing
