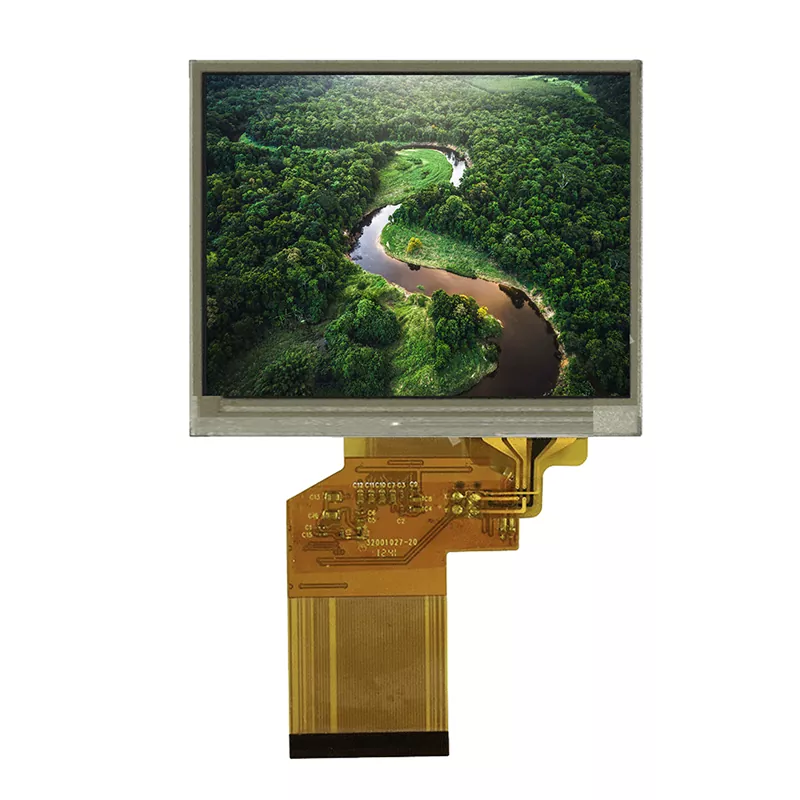

3.5 Inch 320x240 TFT LCD Module with Resistive Touch 24-Bit RGB - VXT350MLH-03P

Why it matters, and what is still missing

If your product rides in a vehicle, gets carried around a site, gets knocked off a bench, or has to survive transport without a foam cradle, a specification that only tests the carton tells you nothing about the module. Here the module itself is tested, at figures you can quote in your own qualification document.

Two things we would still want before you rely on it. No axis or direction count is stated — a vibration test normally specifies X, Y and Z, and a shock test normally specifies six faces or three axes; neither is given here, so ask us. And there is no ESD test and no MTBF figure anywhere in the document, which several modules in the range do carry.

Where It Gets Used

• Handheld and portable field instruments — resistive touch works with gloves and in the rain, and the module itself is shock and vibration tested.
• Vehicle and mobile equipment — one of the few modules in this size that tests shock on the bare module rather than the carton.
• Industrial HMI and machine control panels — operators in gloves, on factory floors, with dirty hands.
• Industrial HMI and machine control panels — operators in gloves, on factory floors, with dirty hands.
• Test and measurement equipment — square pixels keep scales, traces and dial graphics true, and a stylus works.
• Point-of-sale and payment terminals — signature capture with a pen, and a lower unit cost than capacitive.
• Kiosk, vending and ticketing terminals — indoor, at 250 cd/m² with the panel fitted.
• Smart home control panels and access control — 4:3, wall-mounted at a known height, so the viewing direction is under your control.
• Battery-powered devices — 50 µA typical sleep current.
• Microcontroller projects and retrofits — 150 KB fits internal SRAM, QVGA is widely supported, and there is no touch controller to integrate.
• Equipment that must survive transport without special packing — the shock and vibration figures are on the module, not the box.

General Specifications

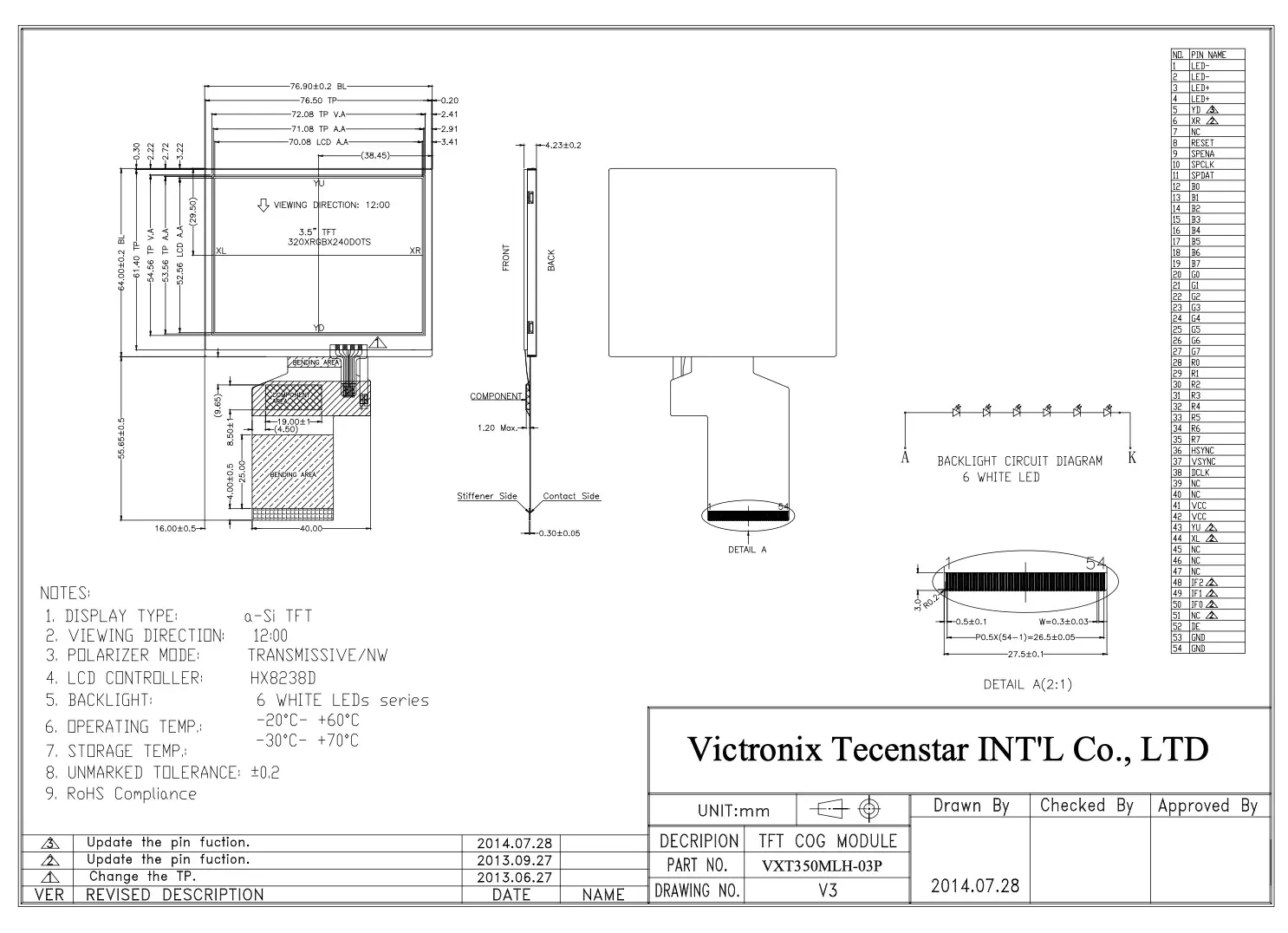

Mechanical Drawing
