3.5 Inch 320x240 TFT LCD Module with Resistive Touch 24-Bit RGB - VXT350TQV-01P
  • 3.5 Inch 320x240 TFT LCD Module with Resistive Touch 24-Bit RGB - VXT350TQV-01P3.5 Inch 320x240 TFT LCD Module with Resistive Touch 24-Bit RGB - VXT350TQV-01P
  • 3.5 Inch 320x240 TFT LCD Module with Resistive Touch 24-Bit RGB - VXT350TQV-01P3.5 Inch 320x240 TFT LCD Module with Resistive Touch 24-Bit RGB - VXT350TQV-01P

3.5 Inch 320x240 TFT LCD Module with Resistive Touch 24-Bit RGB - VXT350TQV-01P

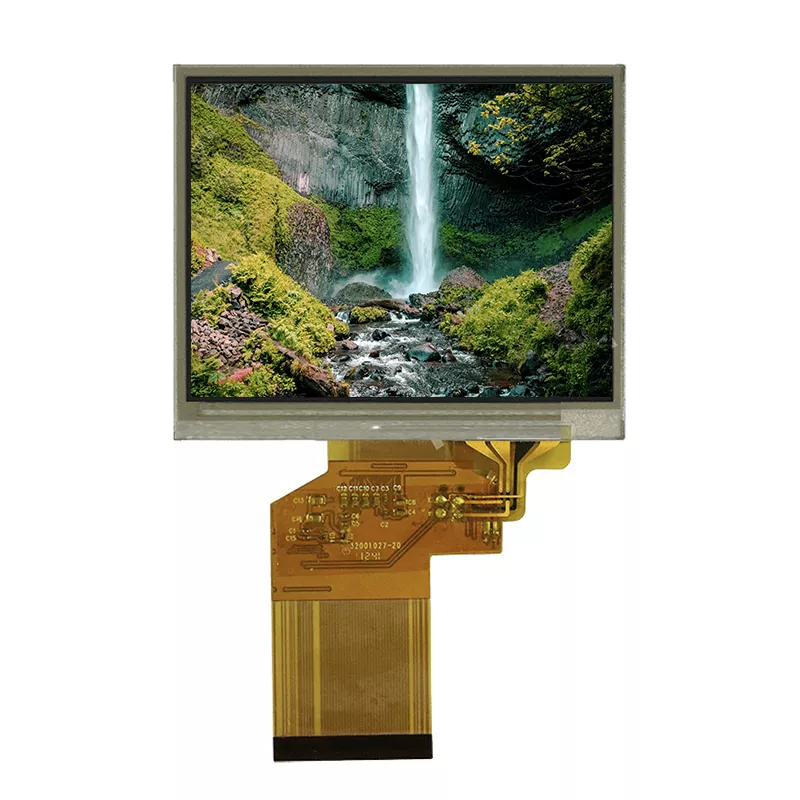

Victronix is a professional TFT module manufacturer and supplier based in China. With 18 years of experience in this field, we have developed a variety of models. In addition to our standard products, we also offer customized services to meet our customers' specific needs. This Victronix 3.5 inch Tianma Panel RTP TFT module is a durable 3.5 inch TFT LCD module designed for demanding embedded applications. Combining a bright transmissive display with integrated resistive touch technology, this module delivers exceptional optical performance and reliability in a compact form factor (76.90 × 63.90 × 4.15 mm).

Model:VXT350TQV-01P

Send Inquiry    PDF DownLoad

Product Description

Why Resistive Is Still the Right Answer in Two Industries

Situation Capacitive Resistive
Bare finger Excellent Excellent — needs a deliberate press
Thick work gloves Fails — the finger is too far from the surface Works — it responds to pressure
Wet, oily or dirty hands Unreliable — moisture looks like a finger Works
Stylus or pen Needs an active or conductive stylus Works with anything — a pen, a tool tip, a fingernail
Signature capture, precise entry Coarse Finer, and a stylus is natural
Pinch, zoom, multi-touch Excellent Not supported
Cost at this size Higher Lower

A capacitive panel detects the disturbance a conductive object makes in an electrostatic field. A resistive panel detects the physical contact of two conductive layers — which is why a gloved hand, a wet hand or the tip of a screwdriver all work, and why none of them works reliably on a capacitive panel.

Where that decides it

  • Industrial equipment — operators in gloves, on factory floors, with dirty hands.
  • Medical devices — gloves again, and a surface that can be wiped down without registering false touches.
  • Field instruments and test equipment — used outdoors, in the rain, with a stylus.
  • Point-of-sale and kiosk — a pen or a fingernail, and a lower unit cost.
  • Cost-sensitive products — no controller IC, simpler stack.

If your product is a consumer device operated with a bare finger and you want gestures, a capacitive panel is the right answer, and we sell those too. We would rather point you at it than sell you a resistive panel that frustrates your users.

General Specification

Item Contents Unit

Model

VXT350TQV-01P

LCD  TYPE TFT/TRANSMISSIVE
MODULE     SIZE(W*H*T) 76.90*63.90*4.15 MM
ACTIVE SIZE(W*H) 70.08*52.56 MM
PIXEL PITCH (W*H) 0.219*0.219 MM
NUMBER  OF  DOTS 320*240
DIVER IC NV3035GTC
INTERFACETYPE RGB+SPI
TOP POLARIZER TYPE ANTI-GLARE
RECOMMEND    VIEWING    DIRECTION 12  O'CLOCK
GRAY  SCALE  INVERSION  DIRECTION 6  O'CLOCK
COLORS 16.7M
BACKLIGHT   TYPE 6-DIES  WHITELED
TOUCHPANEL     TYPE RESISITIVE

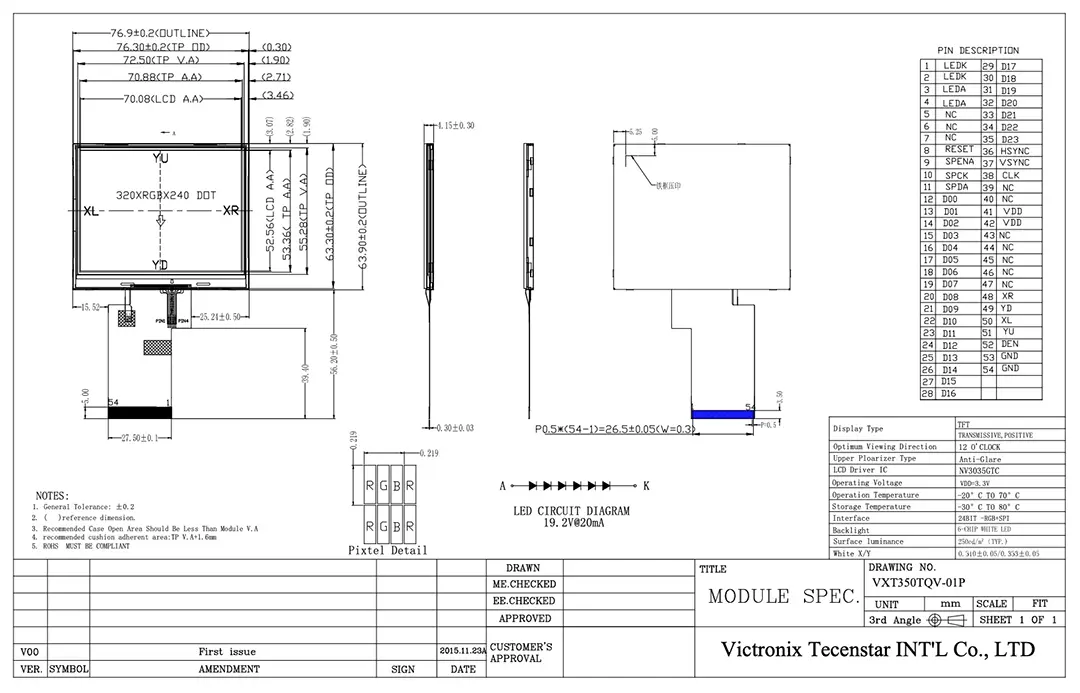

Mechanical Drawing
