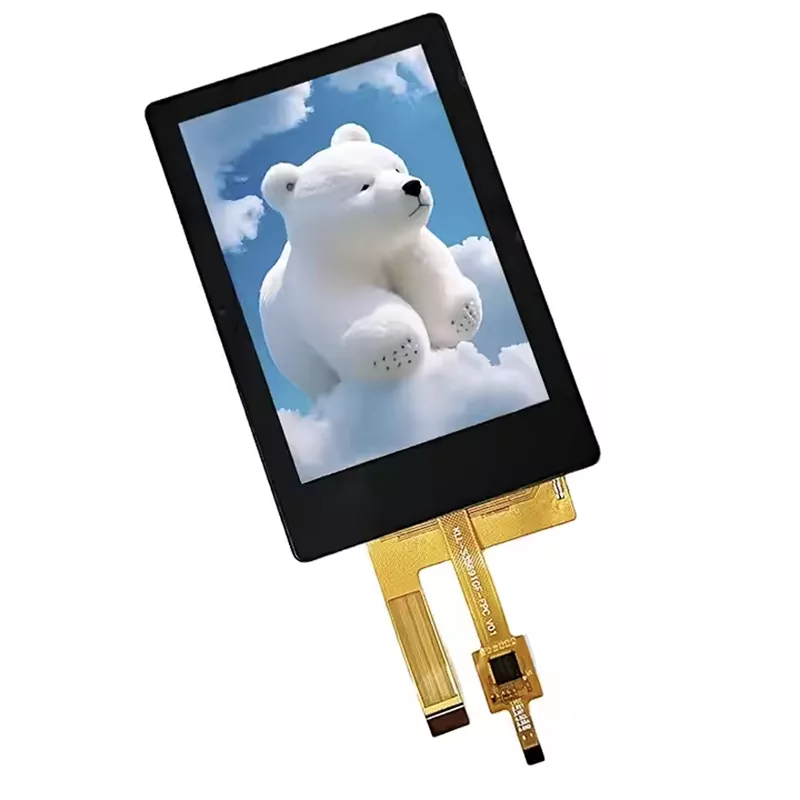

3.5inch HVGA Capacitive Touch TFT Module

VXT350CHH-08C1 is one of Chinese TFT LCD manufacturer Victronix’s standard TFT Modules with capacitive touch screen.We are committed to providing for customers with high-quality 3.5inch HVGA Capacitive Touch TFT Module and competitive prices, using good reputation, advanced technology and comprehensive services

Model:VXT350CHH-08C1

Send Inquiry PDF DownLoad

Product Description

VXT350CHH-08C1 is a portrait 3.5 inch full color TFT-LCD display with 320x480 resolution (320 horizontal by 480 vertical pixels array). module surface brightness 600 cd/m2 (typical value) for the application requiring brighter backlighting, pls contact our sales. the surface brightness can be customized to be 1000 cd/m2. VXT350CHH-08C1 can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

The 3.5inch HVGA Capacitive Touch TFT Module can be used in embedded systems, automation, GPS, camcorder, digital camera application, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful images.

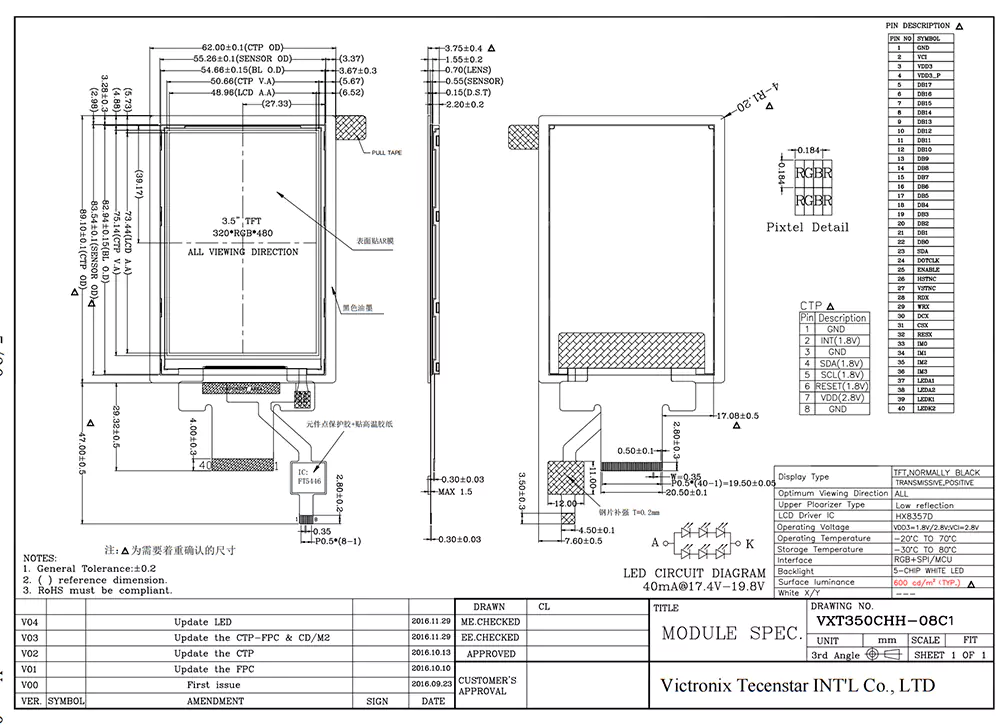

General Specification

Item	Contents	Unit
LCD TYPE	TFT/TRANSMISSIVE
MODULE SIZE(WHT)	62.0089.103.75	MM
ACTIVE SIZE (W*H)	48.96*73.44	MM
PIXEL PITCH(W*H)	0.184*0.184	MM
NUMBER OF DOTS	320*480
DIVER IC	HX8357D
INTERFACE TYPE	RGB+SPT/MCU
TOP POLARIZER TYPE	ANTI-GLARE
RECOMMEND VIEWING DIRECTION	ALL	O'CLOCK
GRAY SCALE INVERSION DIRECTION	--	O'CLOCK
BACKLIGHT TYPE	6-DIES WHITE LED
TOUCH PANEL TYPE	CAPACITIVE
