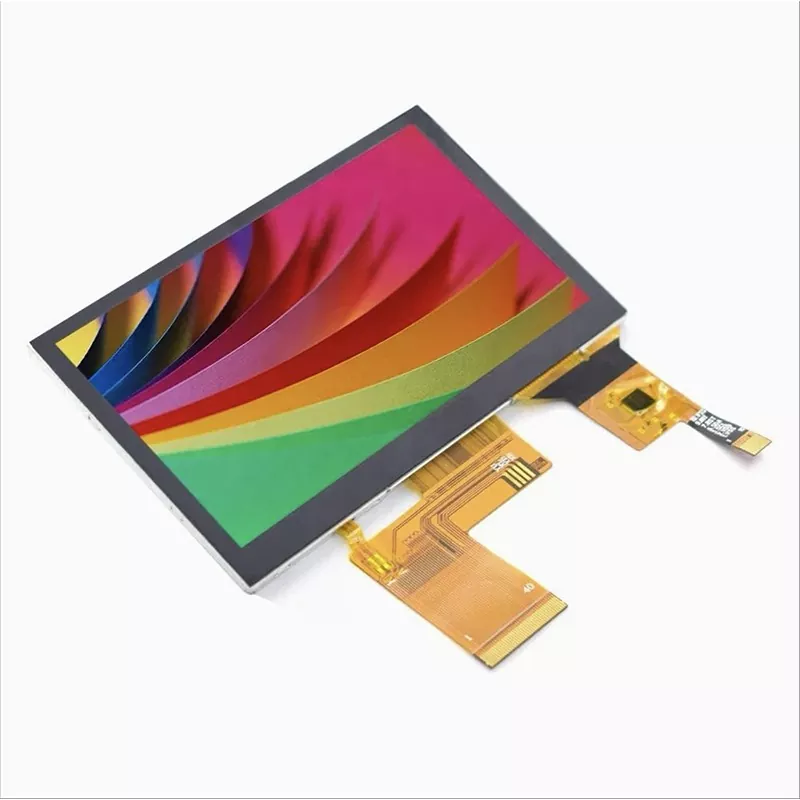

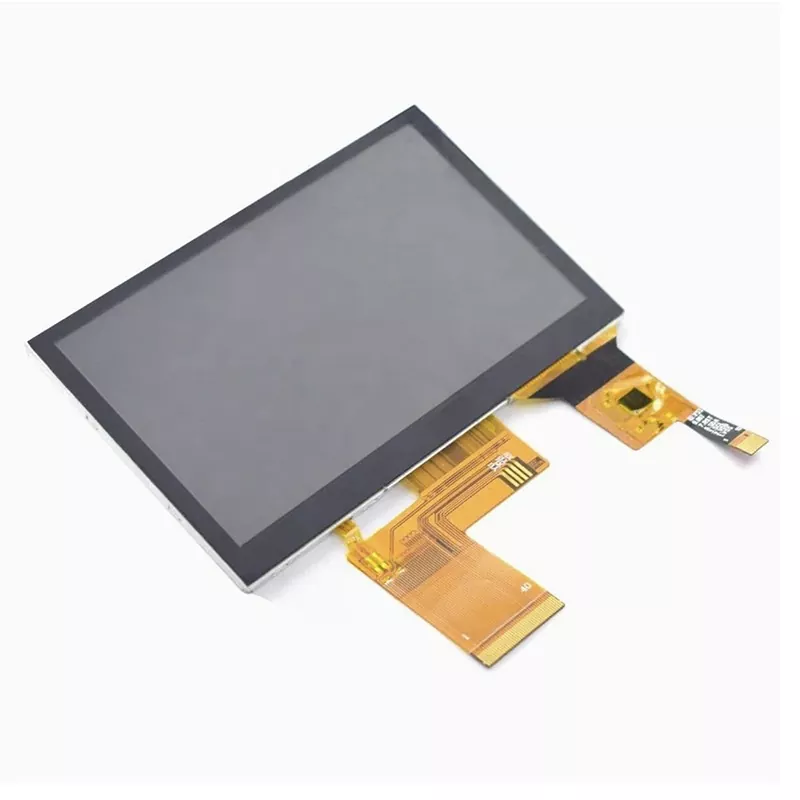

4.3 inch 480x272 Capacitive Touch IPS TFT Module

VXT430CNH-07C is composed with IPS TFT module and capacitive touch screen,is produced by Chinese LCD factory Victronix. The following is an introduction to 4.3 inch 480x272 Capacitive Touch IPS TFT Module. Welcome new and old customers to continue to cooperate with us to create a better future together!

Model:VXT430CNH-07C

Send Inquiry PDF DownLoad

Product Description

With a 4.3inch display and 480x272 pixels, this module delivers clear and vibrant images. The all viewing angle ensures that the display is easily visible from various angles. The module is designed with capacitive touch screen, making it an excellent option for applications that require touch function.

4.3 inch 480x272 Capacitive Touch IPS TFT Module can be used in any embedded systems, car, mp4, GPS, industrial device, security and hand-held equipment which requires display in high quality and colorful image.

General Specification

Item	Contents	Unit
LCD TYPE	TFT/TRANSMISSIVE
MODULE SIZE(WHT)	105.5067.204.70	MM
ACTIVE SIZE(W*H)	95.04*53.856	MM
PIXEL PITCH(W*H)	0.198*0.198	MM
NUMBER OF DOTS	480*272
DIVER IC	HX8257A
INTERFACE TYPE	24BIT RGB
TOP POLARIZER TYPE	ANTI-GLARE
RECOMMEND VIEWING DIRECTION	12	O'CLOCK
GRAY SCALE INVERSION DIRECTION	6	O'CLOCK
BACKLIGHT TYPE	10-DIES WHITE LED
TOUCH PANEL TYPE	CAPACITIVE
