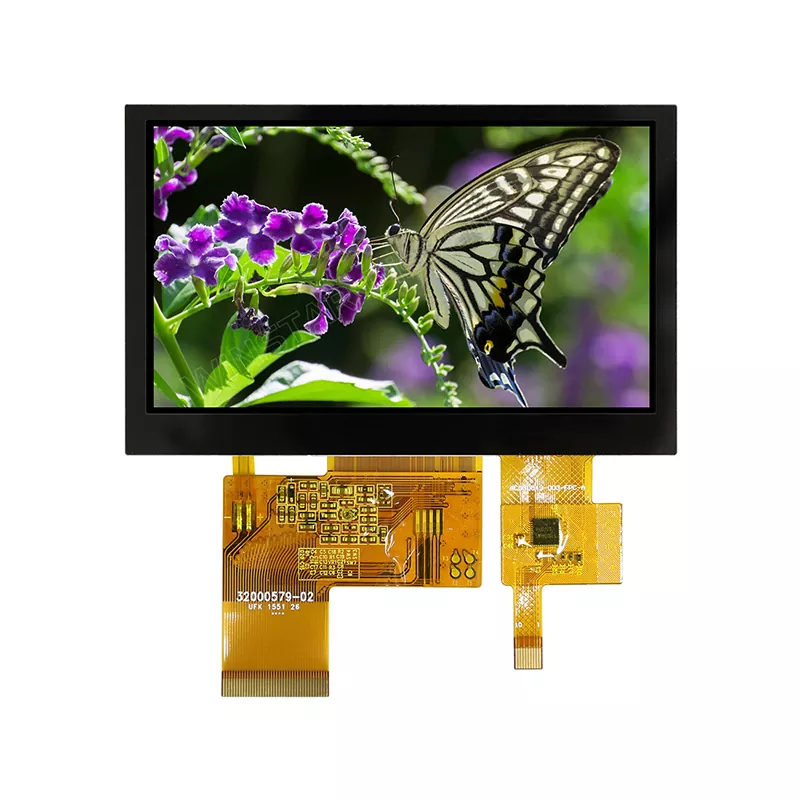

4.3" 480x272 Capacitive Touch TFT LCD Module
This Victronix 4.3 inch 480x272 IPS TFT Module with CTP is a high-performance 4.3-inch TFT LCD module designed for demanding embedded and industrial applications. Combining a bright display with responsive multi-touch functionality, this module delivers exceptional visual clarity and user interaction in a compact form factor.
Model:VXT430MPSA-01CA
Send Inquiry PDF DownLoad
Product Description
Where 4.3 Inches Is the Right Answer
- Handheld instruments and meters — multimeters, analysers, testers, where the 0.6 W backlight and the small framebuffer both help battery life.
- Smart home and building control — wall panels, thermostats, intercom and access control, room controllers.
- Elevator and access control panels — floor indicators, car displays, door controllers.
- POS and payment terminals — compact operator and customer-facing screens.
- Medical and laboratory devices — portable monitors, infusion and therapy controllers, bench instruments.
- Compact industrial HMI — machine-mounted panels where a 5-inch or 7-inch unit will not fit the faceplate.
- Battery-powered and portable equipment — anything where the memory saving and low backlight power compound.
- Cost-sensitive volume products — where deleting SDRAM and two PCB layers is the whole business case.
Operating range -20°C to +70°C, storage -30°C to +80°C, humidity up to 85% RH at or below 40°C (above 40°C, absolute humidity must stay below the level corresponding to 85% RH at 40°C). As with all LCDs, response slows at low temperature and background colour shifts slightly with ambient temperature; both are reversible.
General Specifications
|
Item |
Contents |
Unit |
Note |
|
LCD Type |
TFT |
- |
|
|
Display color |
16.7M |
|
|
|
Viewing Direction |
ALL |
O’Clock |
|
|
Grayscale inversion direction |
- |
O’Clock |
|
|
Operating temperature |
-20~+70 |
℃ |
|
|
Storage temperature |
-30~+80 |
℃ |
|
|
Module size |
4.3 |
inch |
|
|
Active Area(W×H) |
95.04x53.86 |
mm |
|
|
Number of Dots |
480x272 |
dots |
|
|
Controller |
ST7282A |
- |
|
|
Power Supply Voltage |
3.3 |
V |
|
|
Outline Dimensions |
105.50x67.20x4.70 |
mm |
|
|
Backlight |
5X2-LEDs (white) |
pcs |
|
|
Weight |
--- |
g |
|
|
Interface |
RGB |
- |
|
CTP Parameter
|
Item |
Contents |
Unit |
Note |
|
Cover View Area |
95.64(H)X54.46(V) |
|
|
|
CTP Resolution |
480*272 |
dots |
|
|
Interface Mode |
IIC |
- |
|
|
Touch Mode |
5 Human fingers multi-touch |
- |
|
|
Surfacehardness |
6H |
- |
|
|
Transparency |
>=85% |
- |
|
|
Accuracy |
Centre +/-1.5,Edge +/-2.5mm |
mm |
|
|
CTP Controller |
ST1633i |
- |
|
|
Power Supply Voltage |
3.3 |
V |
|

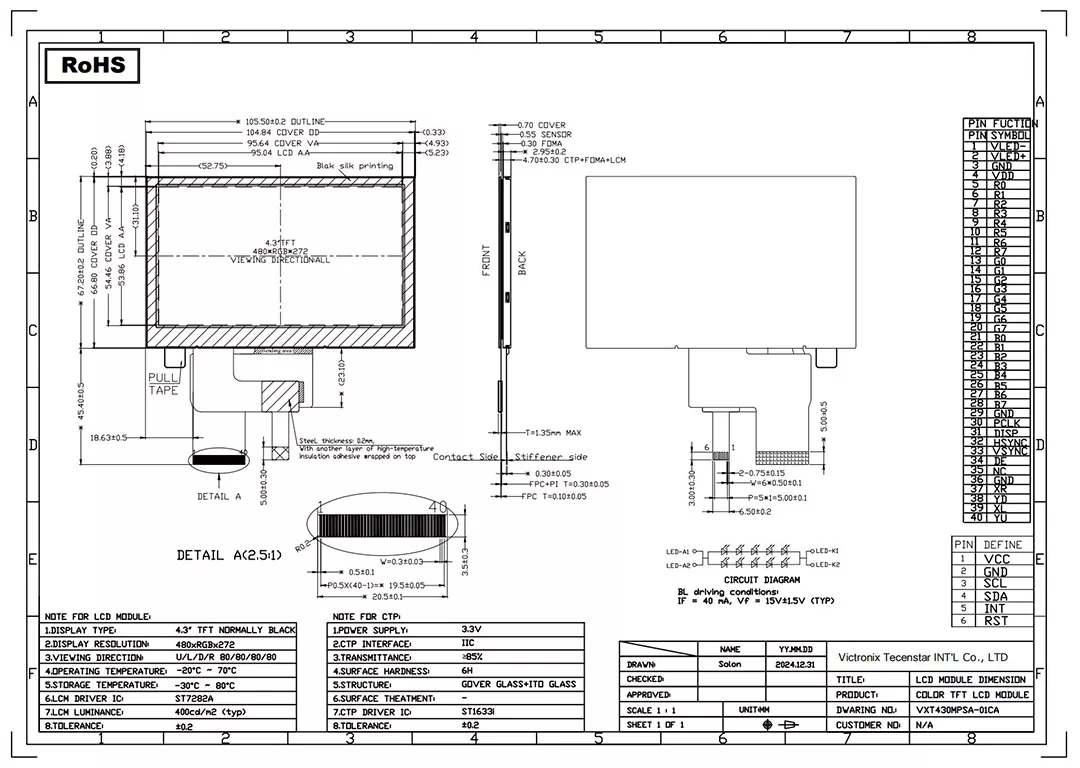

Outline Drawing
