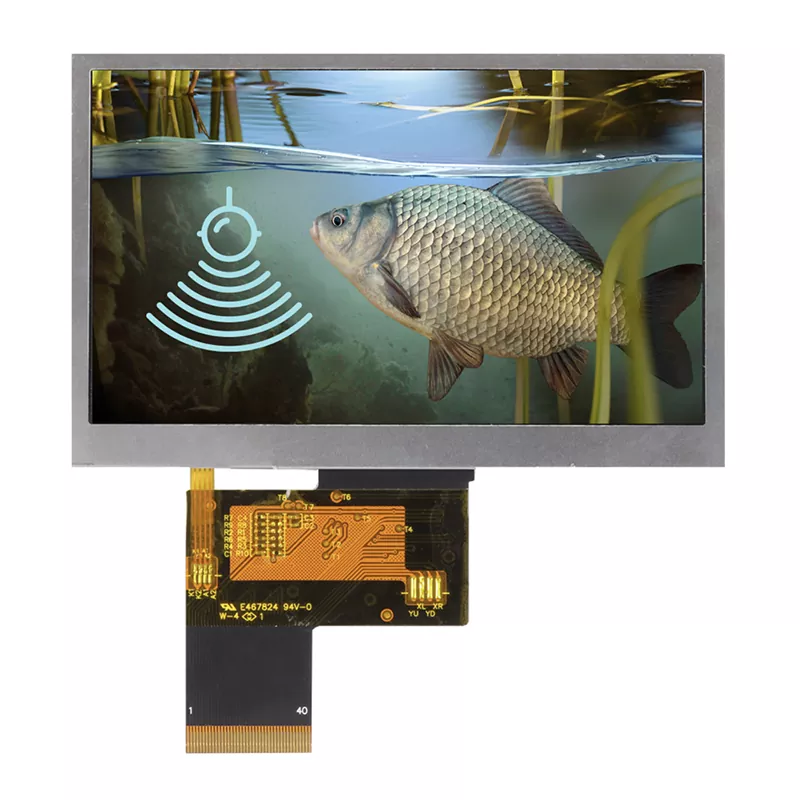

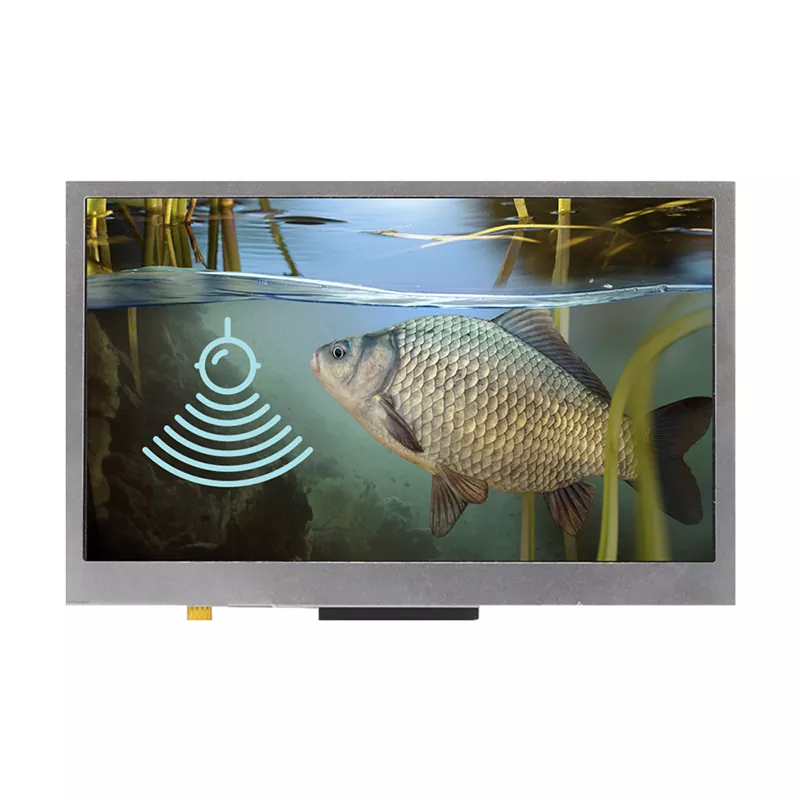

4.3 Inch 480x272 TFT LCD Module 24-Bit RGB Wide Viewing Angle - VXT430PNO-01
The VXT430PNO-01 is a 4.3-inch TFT LCD module at 480 x 272, The specification states the recommended viewing direction as ALL and names the technology as MVA, gives 80 degrees in all four directions, and leaves the grey-scale inversion direction blank - three consistent signals that mean there is no wrong way to mount it. On a TN panel a preferred direction and an inversion direction are stated, and a unit mounted where the operator looks up at it can land on the wrong side; here that decision disappears. The frame buffer is 255 KB, small enough that a microcontroller with 512 KB of internal SRAM needs no external RAM at all. Luminance is 280 minimum against 350 typical and 420 maximum, so there is a floor to hold us to and a ceiling that shows the spread. The backlight is twelve LEDs in six series strings of two, at 19.2 V and 40 mA drawing 0.768 W, with 30,000 hours minimum life. Reliability runs nine tests at 240 hours including vibration, ESD and an MTBF of 50,000 hours. Two cautions.
Model:VXT430PNO-01
Send Inquiry PDF DownLoad
Product Description
Where It Gets Used
- Industrial HMI and control panels — all-direction viewing means the mounting orientation is the enclosure's choice, not the display's.
- Handheld and portable instruments — where the user picks the unit up and the viewing angle changes.
- Test and measurement equipment — near-square pixels keep scales, traces and dial graphics true.
- Medical devices and portable monitors — 480 × 272 is a resolution a great deal of instrument software already targets.
- Microcontroller projects — 255 KB frame buffer with no external RAM keeps the board to four layers.
- Kiosk, vending and point-of-sale terminals — indoor, with an anti-glare polarizer for overhead lighting.
- Elevator control panels and smart home controllers — wall-mounted, where the viewing direction is fixed and known.
- Marine instrument consoles — shaded-cabin and console applications.
General Specification
| Item | Contents | Unit |
|
Model |
VXT430PNO-01 |
|
| LCD TYPE |
TFT/TRANSMISSIVE,NORMALL Y BLACK |
|
| MODULE SIZE(W*H*T) | 105.5*67.2*2.92 | MM |
| ACTIVE SIZE(W*H) | 95.04*53.865 | MM |
| PIXEL PITCH (W*H) | 0.198*0.198 | MM |
| NUMBER OF DOTS | 480*272 | |
| DRIVER IC | OTA5180A | |
| INTERFACE TYPE | 24-BIT RGB | |
| TOP POLARIZER TYPE | ANTI-GLARE | |
| RECOMMEND VIEWING DIRECTION | ALL(MVA) | O'CLOCK |
| GRAY SCALE INVERSION DIRECTION | - | O'CLOCK |
| COLORS | 16.7M | |
| BACKLIGHT TYPE | 12-CHIP WHITE LED | |
| TOUCH PANEL TYPE | WITHOUT |

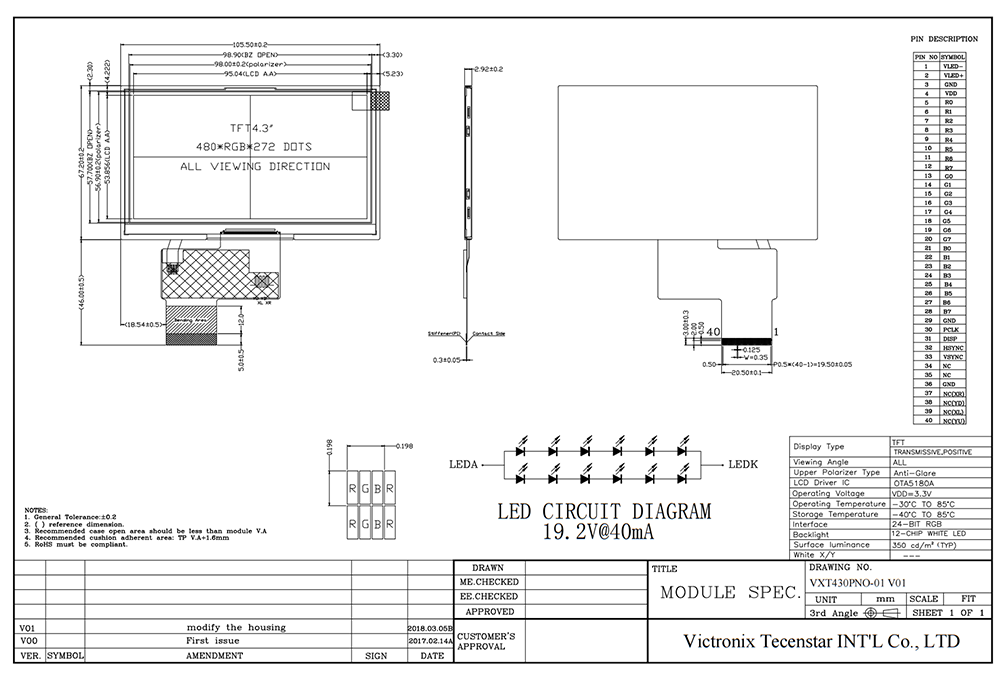

Mechanical Drawing
