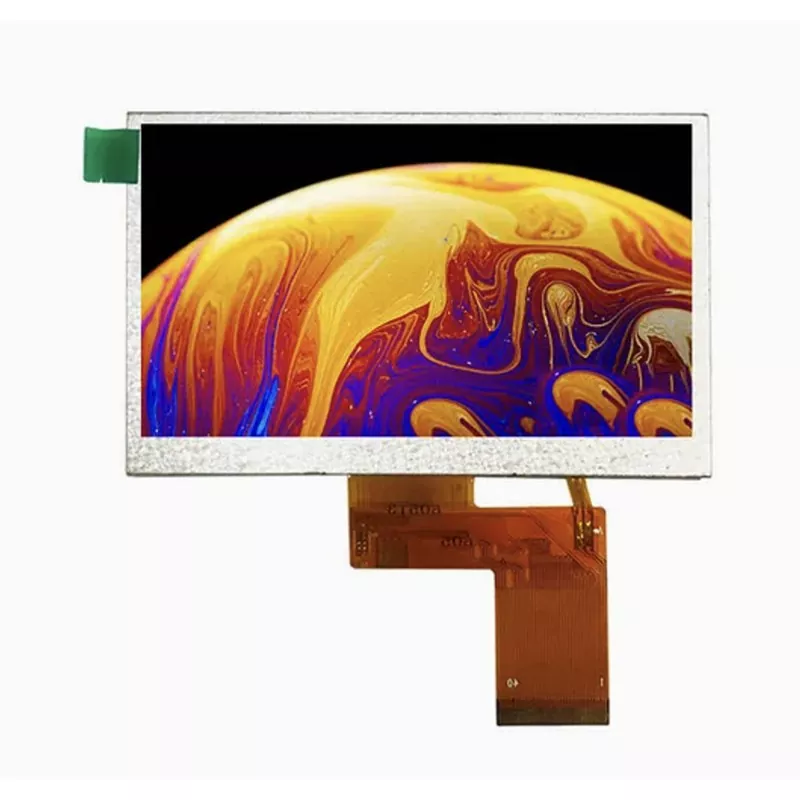

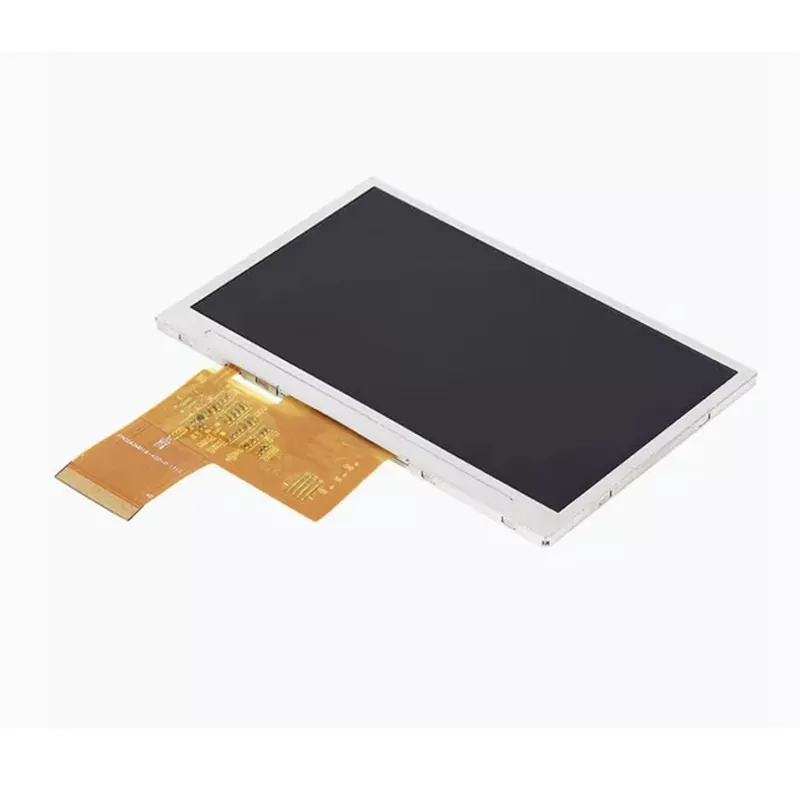

4.3 inch 480x272 TN TFT Module

In the age of advanced technology, the TFT module aids in visually presenting data. The quality of the TFT module critically impacts its applications. What are the advantages of the Victronix 4.3 inch 480x272 TN TFT Module? At first,  its 500cd/m² typical luminance, wide viewing angles 70°(H) / 50°(U)-70°(D) with anti-glare treatment and 500:1 contrast ratio ensure vivid imagery. Secondly, it integrates a backlight unit utilizing 10-DIES WHITE LED with a typical lifetime from 30,000 to 50,000 hours (to 50% initial brightness), ensuring clear visibility in all lighting conditions. Besides, it supports a 24-bit RGB Interface and ST7282-G4-1L Driver IC. In addition, it passes rigorous environmental testing including Temperature cycling (-30°C ↔ +85°C), Humidity (60°C, 90% RH), Mechanical vibration (10–55 Hz), and ESD protection (±4kV air discharge), ensuring can operate seamlessly across an extended temperature range (-20°C to +70°C).

This Victronix 4.3 inch TFT module is commonly used in industrial HMIs, automotive dashboards, medical devices, portable instruments, and embedded systems that require sunlight-readable, shock-resistant displays.

General Specification

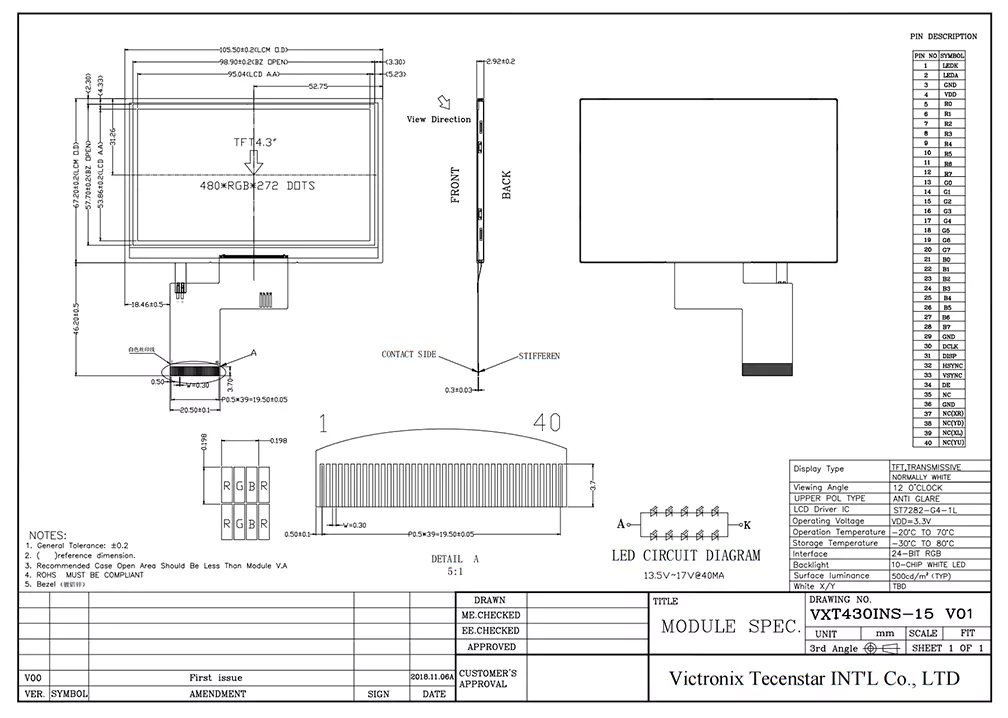

Mechanical Drawing
