4.3 Inch 480x272 TFT LCD Module 500 cd/m2 - VXT430MPIA-03
The VXT430MPIA-03 is a 4.3-inch TFT module with a 480 x 272 RGB panel, an ILI6485D driver and a 5S2P white LED backlight, and no touch panel. It is the display-only member of a pair: the VXT430MPIA-03C is the same module with five-point capacitive touch bonded on. Comparing the two gives something most suppliers cannot show — a measured figure for what adding touch actually costs. This module is rated 500 cd/m² and the touch version 400, on otherwise identical hardware: same panel, same driver, same backlight, same timing, and CIE colour coordinates matching to four decimal places. That difference is the touch panel, and it works out at about 20 per cent of your brightness. Beyond that it is a well-documented module: 800:1 contrast minimum, a published logic current of 22 mA giving a calculable total of about 0.67 W, and full timing tables for three operating modes.
Model:VXT430MPIA-03
Send Inquiry
Product Description
Where It Gets Used
- Display-only products — status screens, information panels, meters with physical buttons.
- Designs adding their own touch panel — start from the brighter base module and budget the loss.
- Battery-powered instruments — 0.67 W total and a short 15 V boost.
- Home appliance control panels with mechanical or membrane keys.
- Medical and laboratory devices — 800:1 contrast for small text and readable greys.
- Test and measurement equipment — modest frame buffer fits external MCU RAM.
- Replacements for existing 4.3-inch designs — same 480 × 272 and active area as the common format.
Customization
- Add touch — capacitive or resistive, or take the VXT430MPIA-03C which is this module with touch fitted.
- Brightness — other backlight grades if 500 cd/m² is not the figure you need.
- Cover lens — custom shape, thickness, printed borders, logo.
- Surface treatment — anti-glare, anti-reflective, anti-fingerprint.
- Optical bonding — improves contrast and removes the air gap.
- Interface and mechanics — connector type, FPC length and pin-out, outline, mounting.
General Specifications
| ltem | Contents | Unit | Note |
|
Model |
VXT430MPIA-03 |
|
|
| LCD Type | TFT | ||
| Display color | 16.7M | 1 | |
| Viewing Direction | ALL | O'Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |
| Module size | Refer to outline drawing | mm | |
| Active Area(W×H) | 95.04X53.86 | mm | |
| Number of Dots | 480x272 | dots | |
| Driver IC | ILI6485D | ||
| Power Supply Voltage | 3.3 | V | |
| Backlight | 5S2P-LEDs (white) | pcS | |
|
Luminance |
500 cd/m² typical |
|
|
|
Uniformity |
80% min |
|
|
|
Contrast rati |
800 min / 1000 typ |
|
|
|
NTSC |
40 min / 50 typ % |
|
|
| Interface | RGB | ||
|
Operating temperature |
-20 to +70°C |
|
|
|
Storage temperature |
-30 to +80°C |
|
|

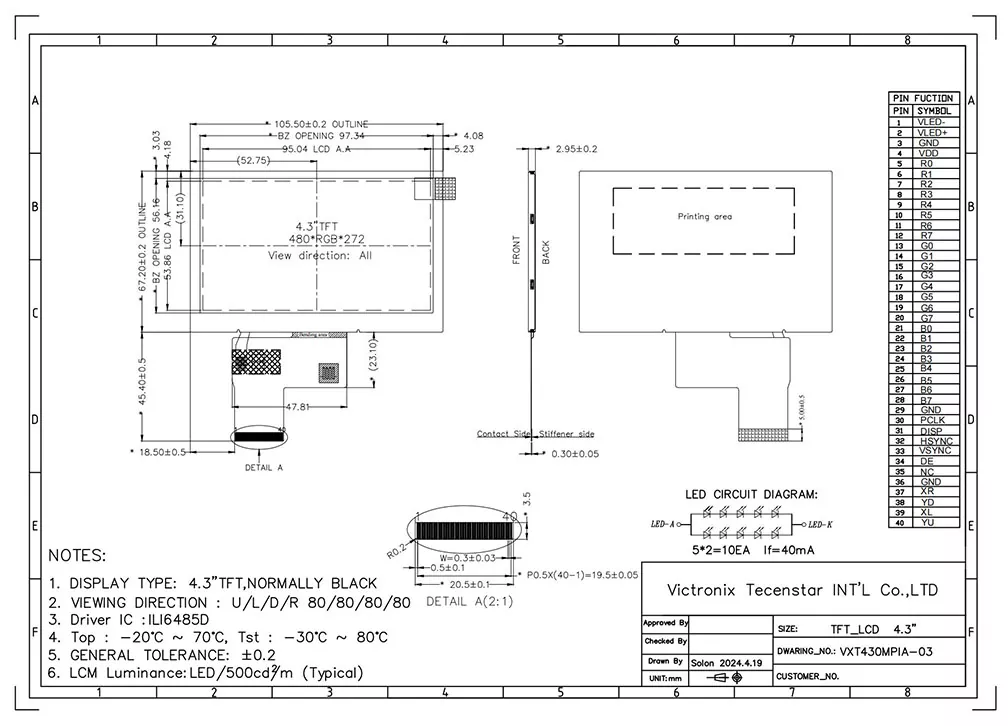

Outline Drawing
