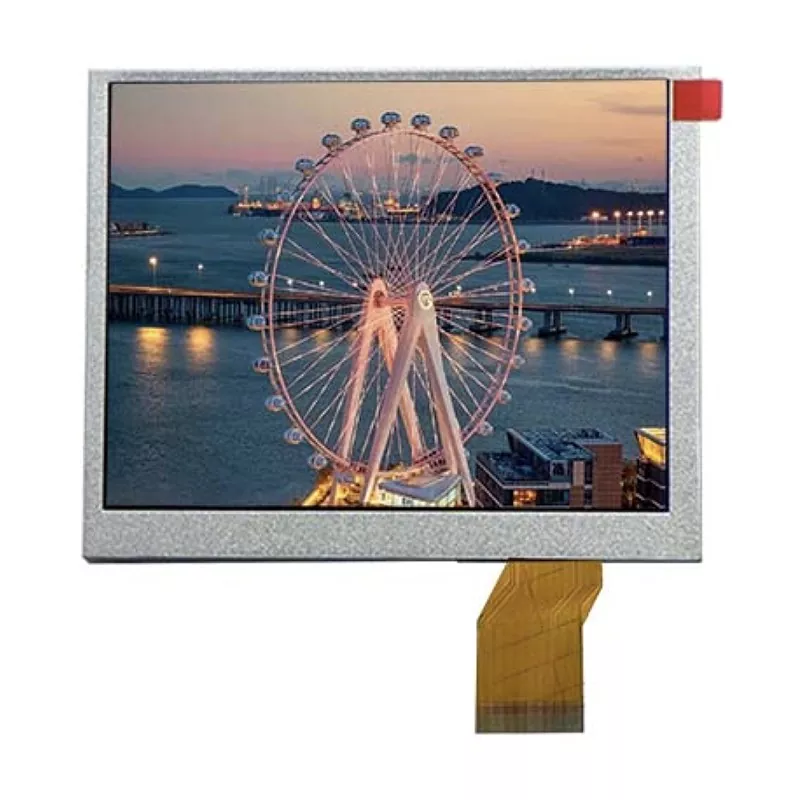

5.65 Inch 640x480 TFT LCD Module 18-Bit RGB Interface (HV Mode) - VXT565GEA-03
This Victronix 5.65 inch 640x480 IPS TFT Module is a high-performance 5.65 inch TFT-LCD module engineered for reliability in industrial environments. Featuring an IPS panel with 640×480 (VGA) resolution and 16.7 million colors, it delivers exceptional visual clarity with wide viewing angles of 80° (3/6/9/12 o’clock directions). As a professional manufacturer and supplier of TFT modules in China, Victronix 5.65 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.
Model:VXT565GEA-03
Send Inquiry PDF DownLoad
Product Description
Where It Gets Used
- Industrial HMI and machine control panels — 640 × 480 over parallel RGB in HV mode.
- Handheld and portable field instruments — a standby pin and a single 3.3 V rail.
- Test and measurement equipment — square pixels keep scales, traces and dial graphics true, and 1000:1 contrast helps dense readouts.
- Point-of-sale and payment terminals.
- Access control, intercom and door panels — a keypad or directory view.
- Kiosk, vending and ticketing terminals — indoor, at 350 cd/m².
- Medical devices and portable monitors — where a contrast floor matters for qualification.
- Factory automation and smart home control panels — −20 to +70 °C covers most indoor industrial ambient.
- Retrofits of existing 5.65-inch or 5.7-inch VGA equipment — the active area is identical to the 5.7-inch modules in this range.
- Projects that need register access — SCL, SDA and CS give you a way into the controller.
Specification
| ltem | Contents | Unit | Note |
| Model |
VXT565GEA-03 |
|
|
| LCD Type | TFT | - | |
| Display color | 16.7M | ||
| Viewing Direction | 12 | O'Clock | |
| Gray scale inversion direction | 6 | O'Clock | |
| Operating temperature | -20~+70 | ℃ | |
| Storage temperature | -30~+80 | ℃ | |

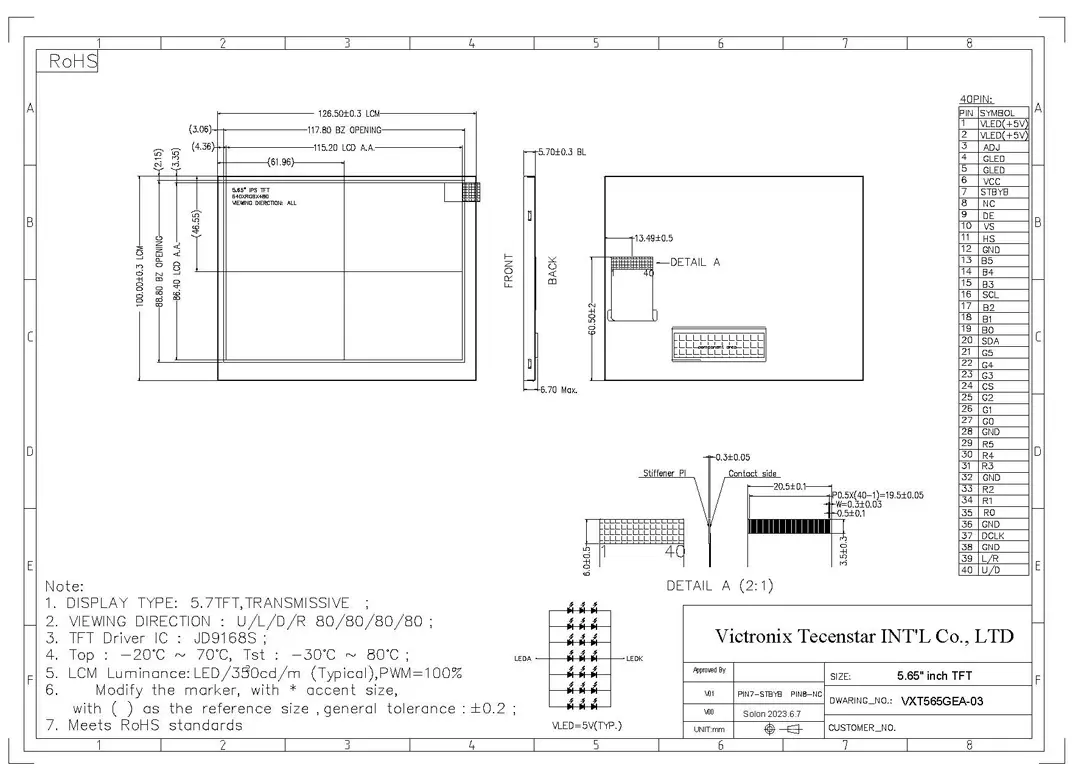

| Module size | Refer to outline drawing | mm | |
|
Active Area(W×H) |
108X64.8 |
mm |
|
| Number of Dots | 800×480 | dots | |
| LCM Controller | ILI6122+IL15960 | - | |
|
CTP Controller |
- |
- |
|
| Power Supply Voltage | 3.3 | V | |
| Outline Dimensions |
Refer to outline drawing |
- | |
| Backlight | 10S2P=20PCS LEDS (white) | PCS | |
| Weight | --- | g | |
| Interface | RGB-24Bit | - |
