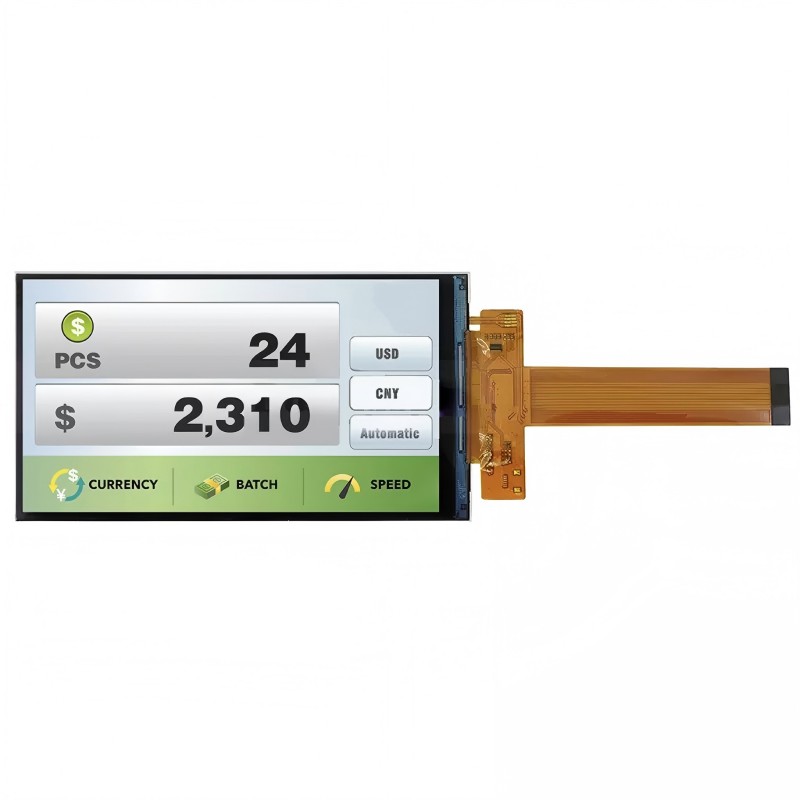

5.0 Inch 720x1280 HD TFT LCD Module with Capacitive Touch MIPI - VXT500BKI-01F
The VXT500BKI-01F is a 5.0-inch TFT LCD module with 720 x 1280 pixels in portrait - HD resolution on a five-inch panel, and one of the highest pixel densities in our range. The pixels are square: 0.08625 mm on both axes, which is exactly what 62.1 mm over 720 pixels and 110.4 mm over 1280 pixels both give, and the shape is an exact 16:9 turned on its side. Brightness is 680 cd/m2 minimum against 850 typical, contrast 1000:1 minimum, and viewing angle 70 degrees minimum in all four directions with no preferred orientation, so how you mount it is a mechanical decision rather than an optical one. Touch is five-point capacitive in a G+G stack rated at 6H and 85% transparency, on its own 7-pin I2C connector. The display runs four MIPI lanes from a single 2.8 V rail, and both the logic current and the backlight power are published, so the total draw can be worked out at roughly 0.93 W.
Model:VXT500BKI-01F
Send Inquiry PDF DownLoad
Product Description
What portrait HD suits — and what it does not
Choose by the shape of your content. A vertical column — readings stacked one per row, scrolling lists, status entries, message threads, or any interface originally laid out for a phone — fits this panel without wasted space on either side. A wide dashboard, video, or controls that belong side by side does not; a landscape panel is the better answer there, and we will point you at one. The 16:9 shape is also worth noting against 4:3 or 5:3: content built for either will letterbox or need re-laying, while content built for 720 × 1280 maps one to one.
Where It Gets Used
- Handheld and portable instruments — HD density in a five-inch portrait shape, with five-point touch.
- Smart home control panels — portrait is the natural orientation for a wall-mounted controller.
- Medical devices and portable monitors — fine text and dense readings stay legible.
- Test and measurement equipment — square pixels keep traces, scales and dial graphics true.
- Industrial HMI in portrait enclosures — no need to redesign the cut-out for a landscape panel.
- Point-of-sale and payment terminals — HD density with a G+G touch surface rated at 6H.
- Kiosks and vending machines — a vertical column of options with 850 cd/m² behind it.
- Anything porting a phone-designed interface — 720 × 1280 maps one to one.
General Specification
| Item | Contents |
Unit |
| Model |
VXT500BKI-01F |
|
| LCD TYPE | TFT/TRANSMISSIVE | |
| MODULE SIZE (W*H*T) | 68.7*121.12*5.9 | MM |
| ACTIVE SIZE(W*H) | 62.1*110.4 | MM |
| PIXEL PITCH(W*H) | 0.08625*0.08625 | MM |
| NUMBER OF DOTS | 720*1280 | |
| LCD DRIVER IC | ILI881C | |
| INTERFACETYPE | MIPI | |
| TOP POLARIZER TYPE | ANTI-GLARE | |
| RECOMMEND VIEWING DIRECTION | ALL | O'CLOCK |
| GRAY SCALEINVERSION DIRECTION | - | O'CLOCK |
| BACKLIGHT TYPE | 14-DIES WHITE LED | |
|
Brightness |
680 min / 850 typ / 1200 max cd/m² |
|
|
Backlight power |
0.84 W |
|
| TOUCH PANEL TYPE | CAPACTIVE | |
|
Total power |
≈ 0.93 W — backlight about 90% |
|
|
Operating temperature |
-20 to +80 °C |
|

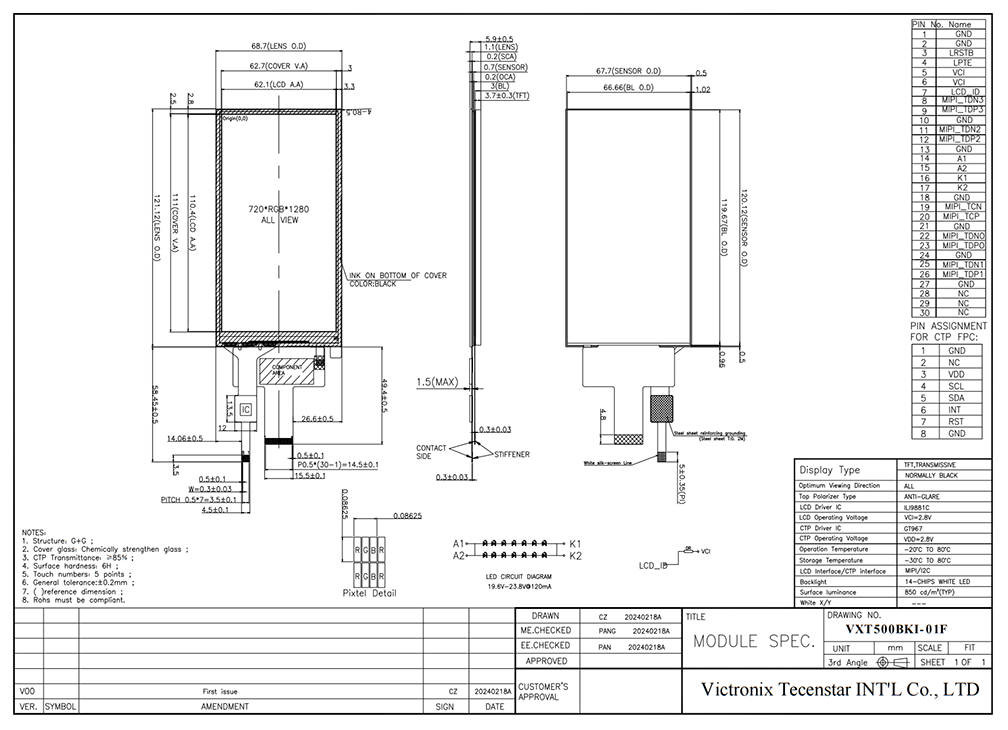

Mechanical Drawing
