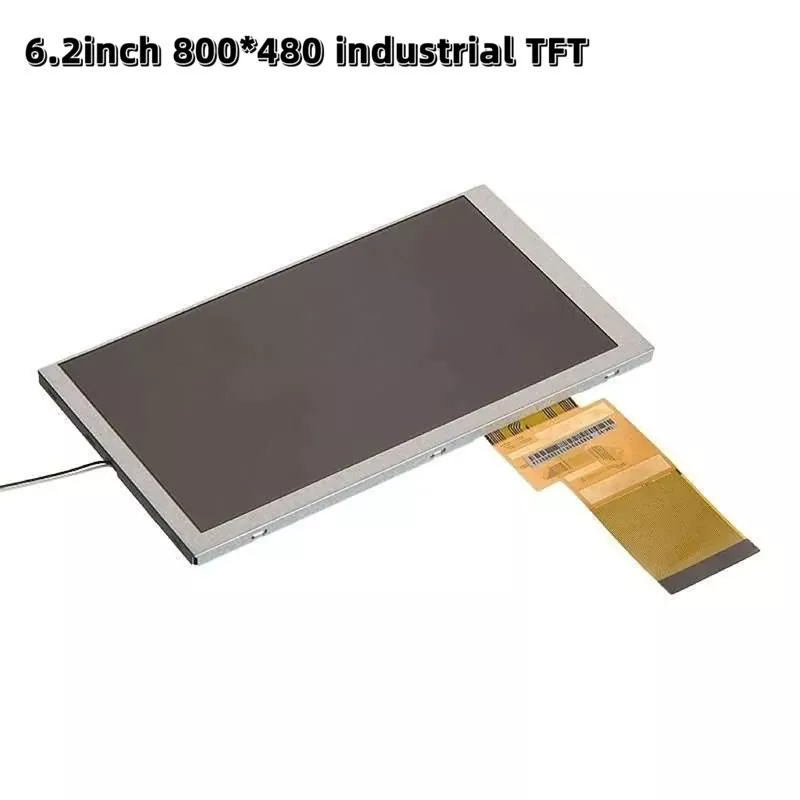

6.2 Inch 800x480 TFT LCD Module 24-Bit RGB Interface - VXT620HWI-02
This Victronix 6.2 inch 800×480 TFT Module offers a typical brightness of 700 cd/m² and a contrast ratio of 600:1, ensuring excellent readability from various angles. Secondly, it integrates a backlight unit utilizing 18 white LEDs with a typical lifetime of 30,000 to 50,000 hours (to 50% initial brightness), ensuring clear visibility in all lighting conditions. Besides, it supports a 24-bit parallel RGB with DE/SYNC mode control interface and an ILI6123H + ILI5480 controller. In addition, it passes rigorous environmental testing, including thermal shock (-30°C ↔ +80°C cycles), humidity storage (60°C/90% RH), and mechanical vibration, ensuring it can operate seamlessly across an extended temperature range from -20°C to +70°C. This 6.2 inch TFT display by Victronix is commonly used in medical devices, vehicle displays, industrial control systems, and portable instrumentation where readability under varied lighting conditions is critical.
Model:VXT620HWI-02
Send Inquiry PDF DownLoad
Product Description
Where It Gets Used
- Industrial HMI and machine control panels — 800 × 480 over 24-bit RGB, in DE or SYNC mode.
- Handheld and portable field instruments — 700 cd/m² and a real standby mode.
- Test and measurement equipment — the fastest response in this range, at 2 ms rise.
- Point-of-sale and payment terminals — a receipt and line-item view.
- Access control, intercom and door panels — a keypad or directory view.
- Kiosk, vending and ticketing terminals — indoor, at 700 cd/m².
- Medical devices and portable monitors — where the brightness range is specified on both sides.
- Factory automation and smart home control panels — −20 to +70 °C covers most indoor industrial ambient.
- Retrofits of existing 6.2-inch 800 × 480 equipment — a size that fewer suppliers cover.
General Information
| Item | Value |
|---|---|
| Model | VXT620HWI-02 |
| Size |
6.2 inch |
| LCD type | TFT / Transmissive; drawing adds POSITIVE |

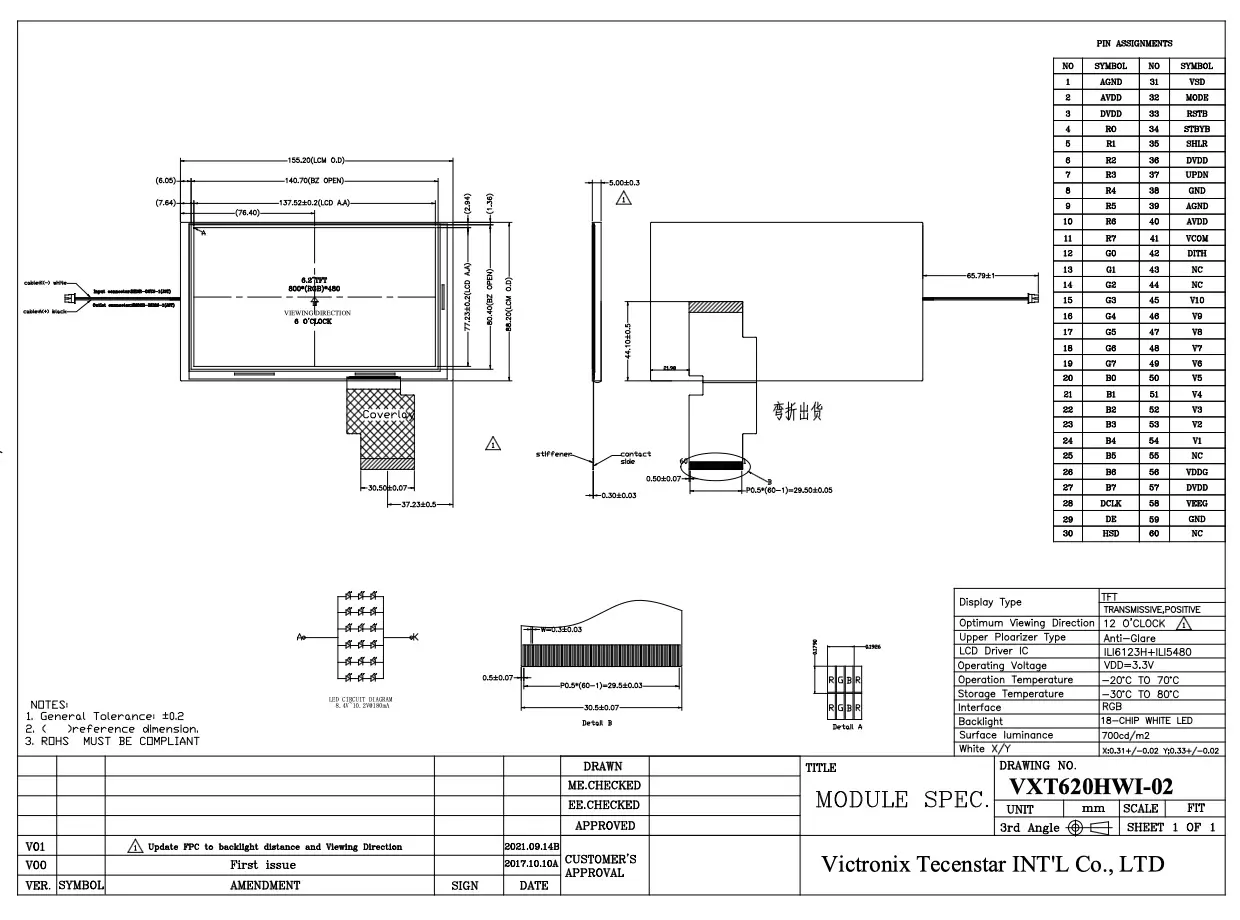

| Module size | 155.2 × 88.20 × 5.0 mm |
| Thickness on drawing | 5.00 ± 0.3 mm — agrees |
| Active area | 137.52 × 77.23 mm — 106.21 cm² |
| Pixel pitch, true | 0.1719 × 0.1609 mm — rectangular |
| Stretch | 6.8% horizontal — artwork needs pre-correction |
| Resolution | 800 × 480 (WVGA) |
| Density | 147.8 H / 157.9 V / 150.2 diagonal PPI |
| Pixel count | 384,000 |
| Bezel opening | 140.70 × 80.40 mm |
| Controller | ILI6123H + ILI5480 (ILITEK, COG) |
| Polarizer | Anti-glare |
| Viewing direction | 12 o'clock |
| Grey scale inversion | 6 o'clock |
| Interface | 24-bit parallel RGB (R/G/B × 8) |
| Scan control | SHLR 35, UPDN 37 |
| VCOM | Pin 41, external adjustable |
| Brightness | 560 min / 700 typ / 840 max cd/m² |
| Contrast | 480 min / 600 typ |
| Response | TON 2 typ / 4 max; TOFF 6 typ / 12 max ms |
| Viewing angle | 65/75 horizontal; 70/80 vertical |
| Uniformity | 80% min |
| Backlight | 18 LEDs — 3S6P, 3.2 V per LED, 30 mA per string |
| Backlight voltage | 8.4 / 9.6 / 10.2 V |
| Backlight current | 180 mA |
| Backlight power | 1.728 W — stated, matches exactly |
| Backlight life | 30,000 min / 50,000 typ h |
| Operating temperature | −20 to +70 °C |
| Storage temperature | −30 to +80 °C |
| MTBF | 50,000 hours |
| Packing |
40 pcs per carton, 430 × 380 × 270 mm |
