7 inch Equivalent of innolux LW700AT9309
  • 7 inch Equivalent of innolux LW700AT93097 inch Equivalent of innolux LW700AT9309
  • 7 inch Equivalent of innolux LW700AT93097 inch Equivalent of innolux LW700AT9309

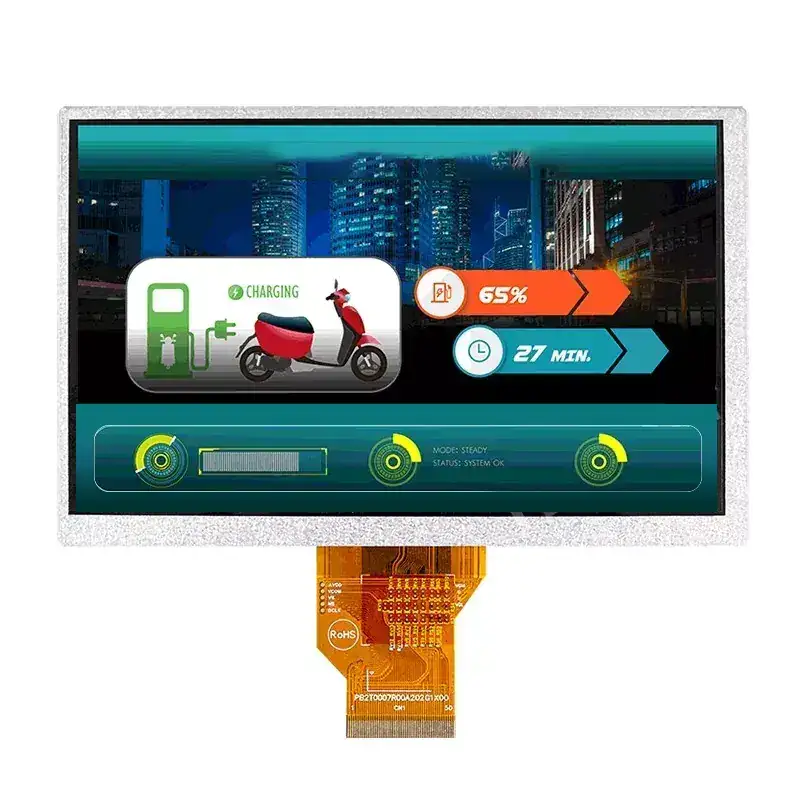

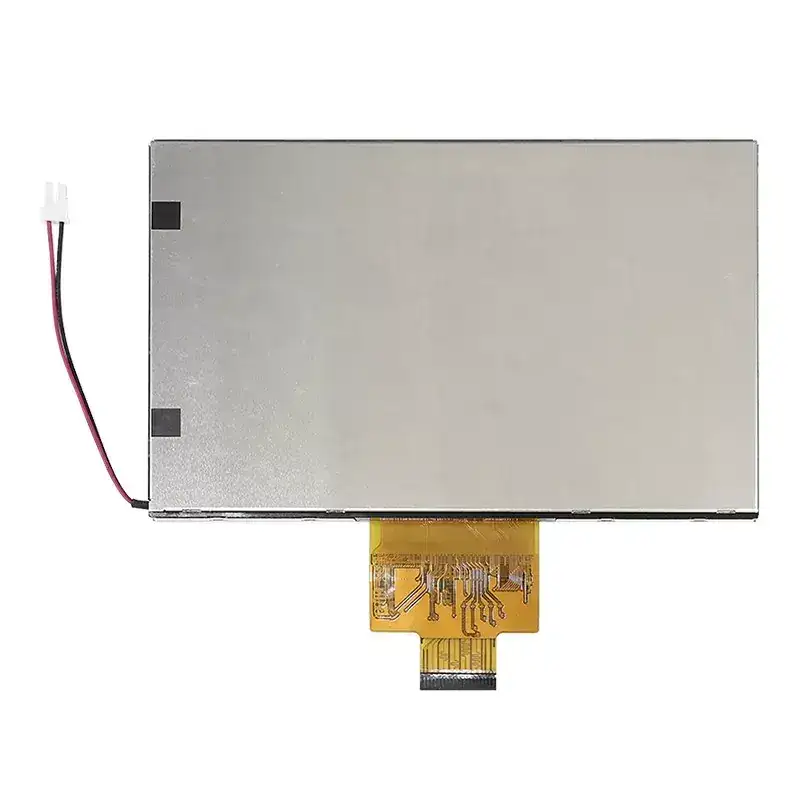

7 inch Equivalent of innolux LW700AT9309

Victronix is a professional TFT module manufacturer and supplier based in China. With 18 years of experience in this field, we have developed a variety of models. In addition to our standard products, we also offer customized services to meet our customers' specific needs. This Victronix 7 inch Equivalent of innolux LW700AT9309 is a high-performance 7 inch TFT LCD module engineered by Victronix for demanding industrial applications. Featuring an 800 × 480 (WVGA) resolution with 262K colors, this display delivers crisp visuals with a pixel pitch of 0.1905 × 0.1905 mm across its 152.4 × 91.44 mm active area. Encased in a compact 165.0 × 104.54 × 5.2 mm (W×H×T) design, it integrates seamlessly into embedded systems.

Model:VXT700IWH-05

Send Inquiry    PDF DownLoad

Product Description

TFT LCD is a type of liquid crystal display that utilizes thin-film transistor technology to enhance image quality, and it has numerous applications in everyday life. As a professional TFT module manufacturer and supplier in China, what makes the Victronix 7 inch Equivalent of innolux LW700AT9309 different from other manufacturers? Initially, it offers a typical brightness of 430 cd/m², wide viewing angles of ±45°(H), +15°/-35°(V) at CR≥10, and a contrast ratio of 250:1, ensuring excellent readability from various angles. Secondly, it integrates a backlight unit utilizing 24 LED white lights with a typical lifetime of 30,000 to 50,000 hours (to 50% initial brightness), ensuring clear visibility in all lighting conditions. Besides, it supports an 18-bit RGB parallel interface driven by HX8262 and HX8678 ICs. In addition, it passes rigorous environmental testing, including thermal shock (-30°C ↔ +80°C cycles), humidity storage (60°C/90% RH), and mechanical vibration, ensuring it can operate seamlessly across an extended temperature range (-20°C to +70°C).

This 7 inch TFT display by Victronix is used in automation, medical devices, and transportation systems requiring stable performance in harsh environments.



Specification

Item Contents Unit
LCD TYPE TFT/TRANSMISSIVE
MODULE SIZE(W*H*T) 165.00*104.54*5.20 MM
ACTIVE SIZE(W*H) 152.40*91.44 MM
PIXEL PITCH(W*H) 0.1905*0.1905 MM
NUMBER OF DOTS 800*480
DIVER IC HX8262+HX8678
INTERFACE TYPE 18-BIT RGB
TOPPOLARIZER TYPE ANTI-GLARE
RECOMMEND VIEWING DIRECTION 12  0'CLOCK
GRAY SCALE INVERSION DIRECTION 0'CLOCK
COLORS 262K
BACKLIGHT TYPE 24-LED WHITE
TOUCH PANEL TYPE WITHOUT

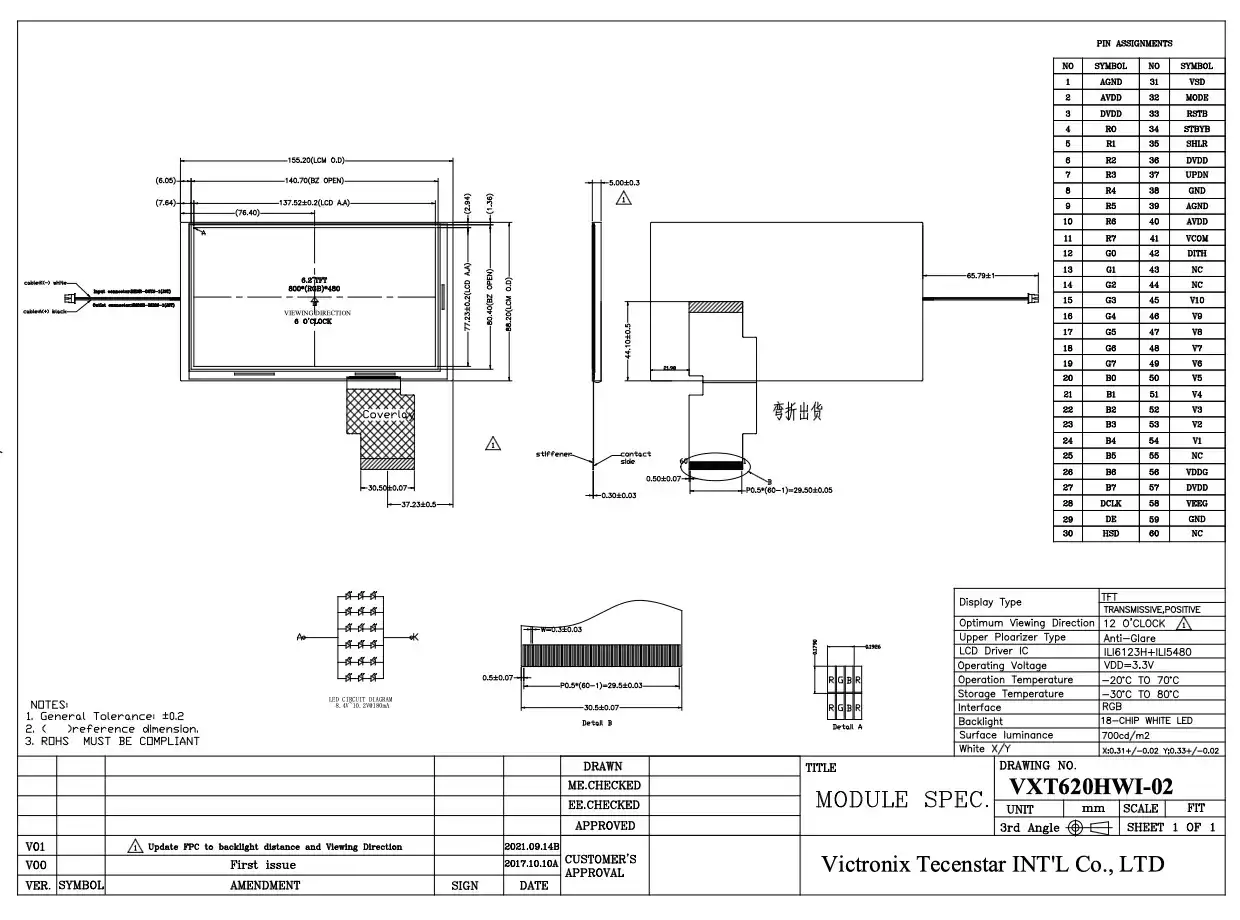

Drawing

7 inch Equivalent of innolux LW700AT9309
