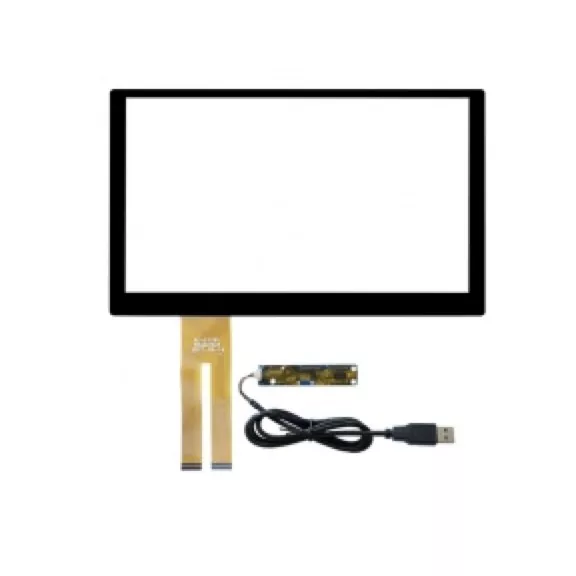

11.6 Inch G+G Capacitive Touch Panel for 1366x768 Displays - CTP-VX116B5741-GG

Where 11.6 Inches Fits

11.6 is the size that sits below the mainstream laptop formats and well above a handheld. That gives it a specific set of uses.Portable terminals and industrial tablets — big enough to work on, small enough to carry one-handed or wear on a strap.

• POS and retail terminals — counter units where space is tight but the operator needs a real interface.
• Medical and laboratory devices — portable monitors, diagnostic instruments, cart-mounted terminals.
• Vehicle and transport displays — in-cab terminals, fleet and telematics screens, passenger information.
• Handheld and semi-portable HMI — setup and commissioning panels carried to the machine.
• Test and measurement — portable instruments with a graphical interface.
• Kiosk and control panels — where a 15-inch screen will not fit the enclosure but a 10-inch one feels cramped.

At roughly 256.8 × 144.45 mm active area for a standard 16:9 panel, it is a compact widescreen that suits landscape interfaces and fits enclosures designed around tablet-class hardware. Confirm the exact active area against the drawing before you cut metal.

Specifications

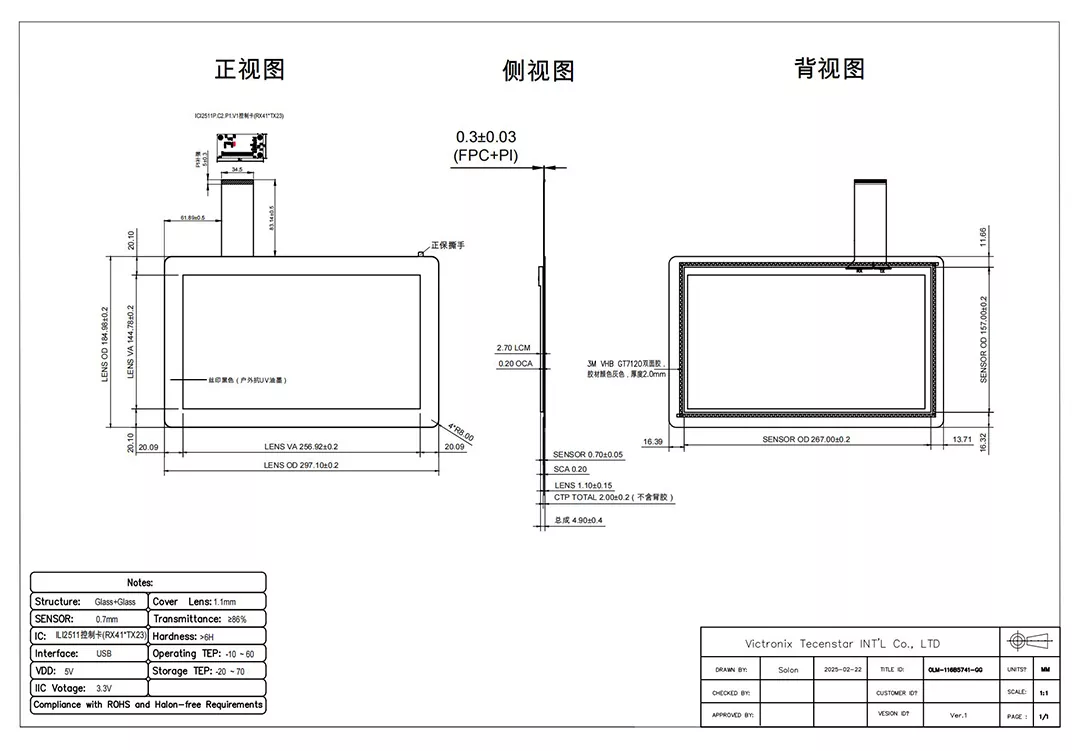

Outline Drawing
