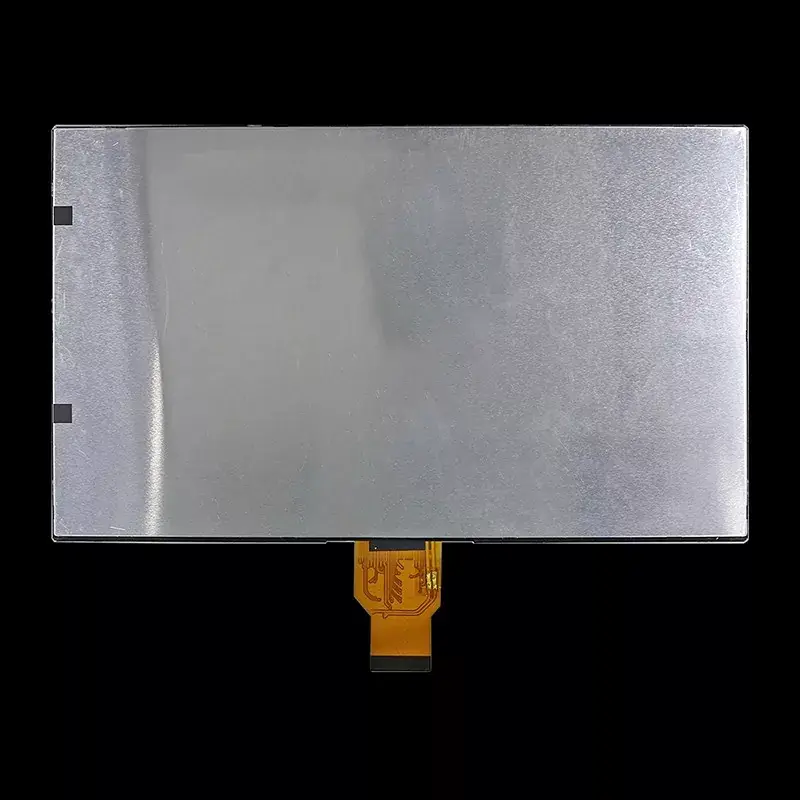

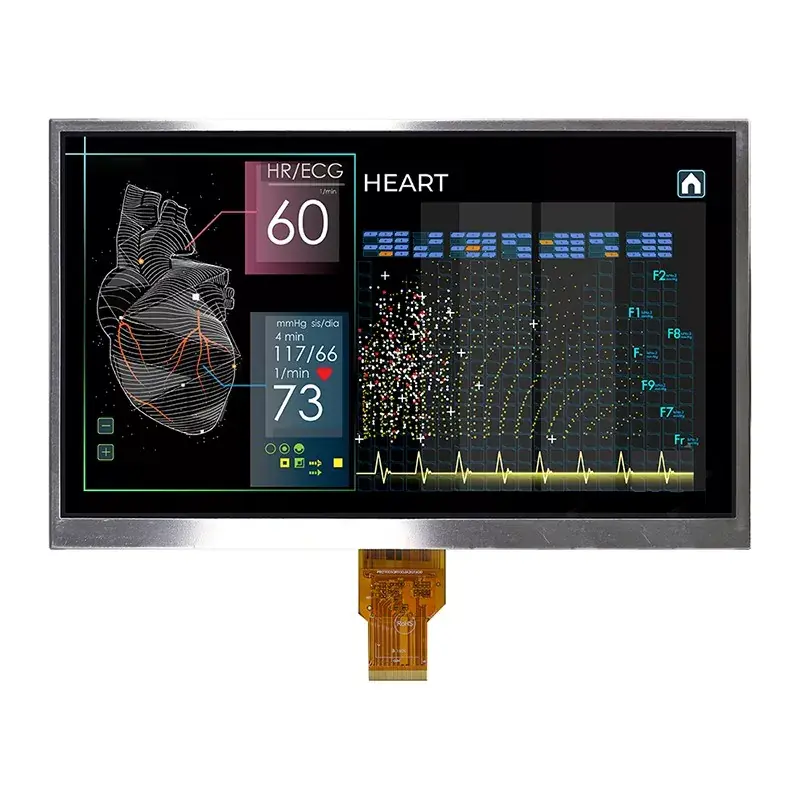

10.1 inch 1024*600 IPS TFT LCD Module

The Victronix 10.1-inch TFT LCD module pairs a 1024 x 600 widescreen resolution with a normally black LCD cell and a compact 40-pin interface, making it a practical fit for HMIs, control panels and embedded terminals that need more screen area than a 7-inch part without jumping to the cost and power of a large-format display. Normally black means each pixel blocks light when unpowered, so the panel rests at black rather than white — better contrast in dark UI states, no bright glow at the panel edges, and a fail-safe appearance if drive is lost.

Model:VXT101MAHA-01ND

Send Inquiry PDF DownLoad

Product Description

This Victronix 10.1inch TFT Module is suitable for battery-powered devices, digital signage, Consumer electronics, control panels, manufacturing equipment displays, medical devices, and so on.

Optical Characteristics

Item	Symbol		Condition	Min.	Typ.	Max.	Unit	Note
Brightness	Bp		If=140mA	-	500	-	Cd/m2	1
Uniformity	⊿Bp		If=140mA	-	75	-	%	1,2
Viewing Angle	3:00		Cr≥10	-	80	-	Deg	1,2
	6:00			-	80	-
	9:00			-	80	-
	12:00			-	80	-
Contrast Ratio	Cr		θ=0° F=0°	-	800	-	-	3,4
Response Time	Tr+Tf		θ=0° F=0°	-	30	40	ms	4,5
Color of CIE Coordinate	W	x	θ=0° F=0°	0.2259	0.2759	0.3259	-	1,6
	W	y		0.2543	0.3043	0.3543	-
	R	x		0.5344	0.5844	0.6344	-
	R	y		0.282	0.332	0.382	-
	G	x		0.2765	0.3265	0.3765	-
	G	y		0.5482	0.5982	0.6482	-
	B	x		0.0996	0.1496	0.1996	-
	B	y		0.0546	0.1046	0.1546	-
NTSC Ratio	S			-	50	-	%

*The parameter is slightly changed by temperature, driving voltage and materiel

Note 1: The data are measured after LEDs are turned on for 5 minutes. LCM displays full white. The brightness is the average value of 9 measured spots. Measurement equipment CA310 Measuring condition:-Measuring surroundings: Dark room.-Measuring temperature: Ta=25℃.-Adjust operating voltage to get optimum contrast at the center of the display.

The measured value is more than 5 minutes at the center point of the LCD panel, and the backlight is turned on at the same time.

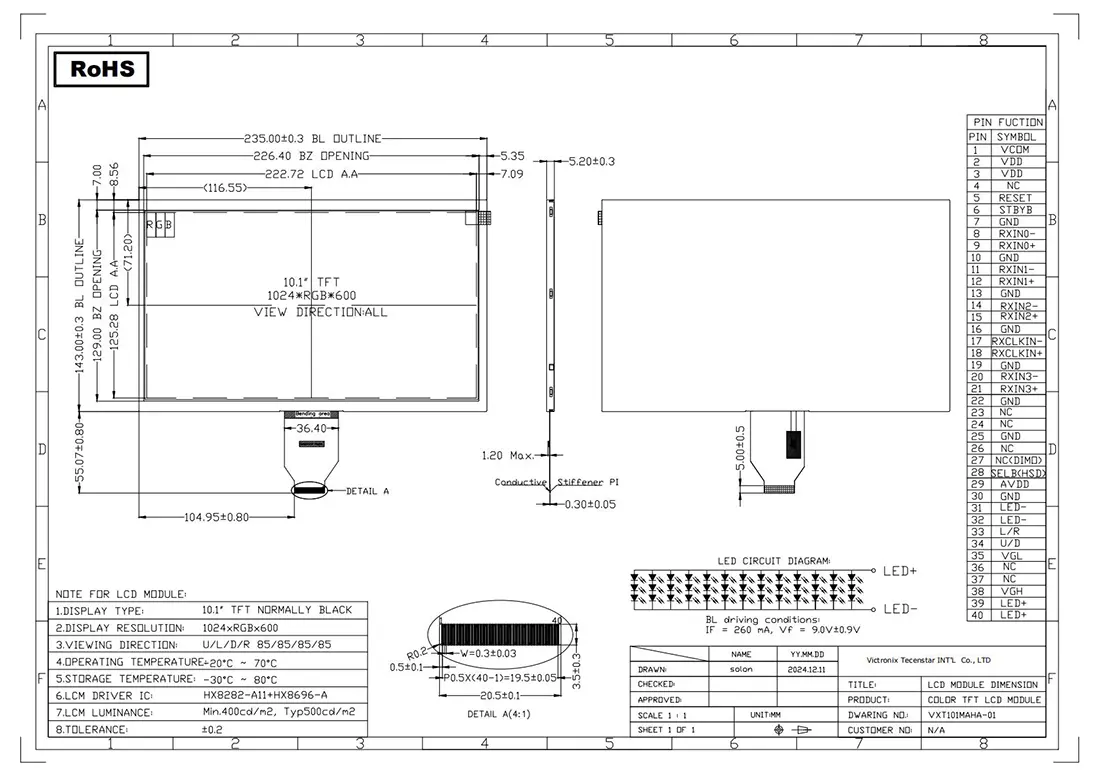

Outline Drawing
