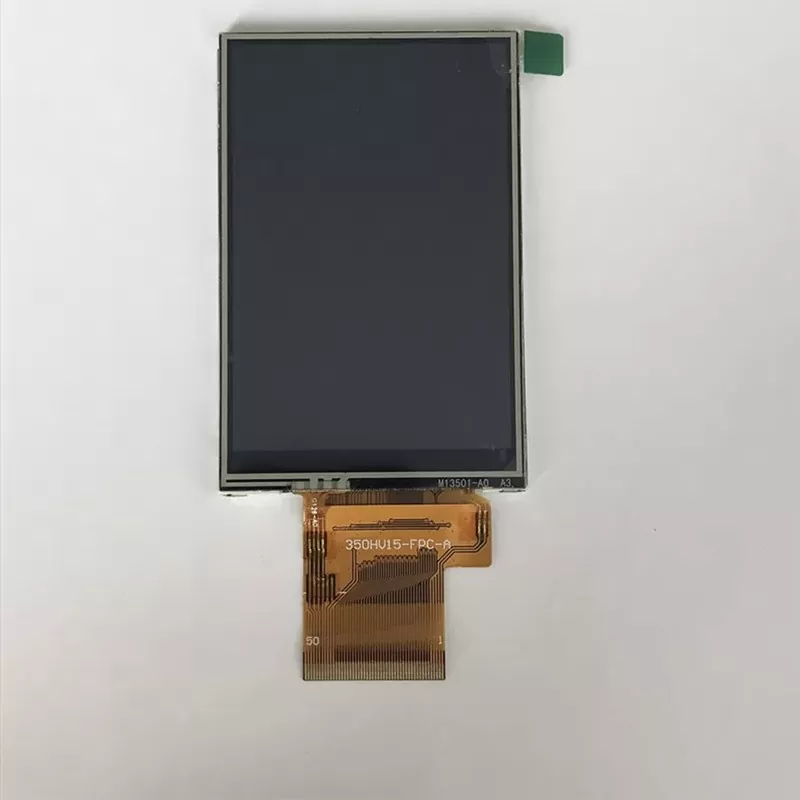

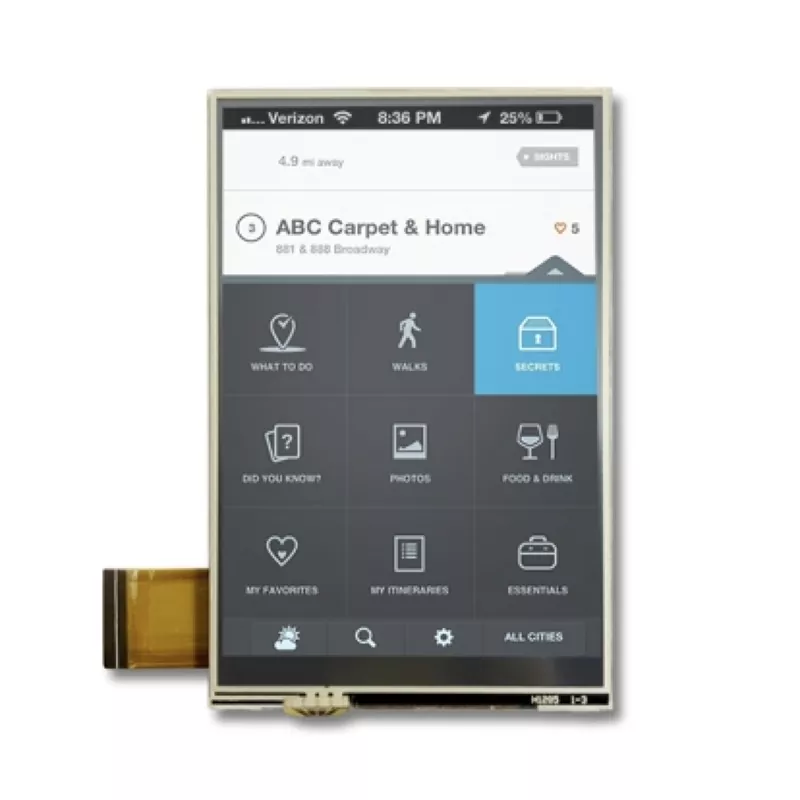

3.5'' 320x480 Resistive Touch TFT Module

This 3.5-inch diagonal IPS transmissive type 320x480 TFT LCD display module has existing resistive touch screen. The module features wide viewing angle thanks to the IPS panel which is one of the most popular techniques on the market now.

The dimension size of this module is 54.66x82.94 mm, active area is 48.96x73.44 mm. This TFT display module uses HX8357D driver IC which supports 18-bit RGB, 3-Line SPI interface. This 320x480 TFT LCD module has brightness 300 cd/m2 with contrast ratio (typical value) 700:1. The module works within the temperature -20 to +70℃, storage temperature ranges from -30 to +80℃.

The 3.5'' 320x480 Resistive Touch TFT Module can be used in any embedded systems, industrial device, security and hand-held equipment which requires display in high quality and colorful image.

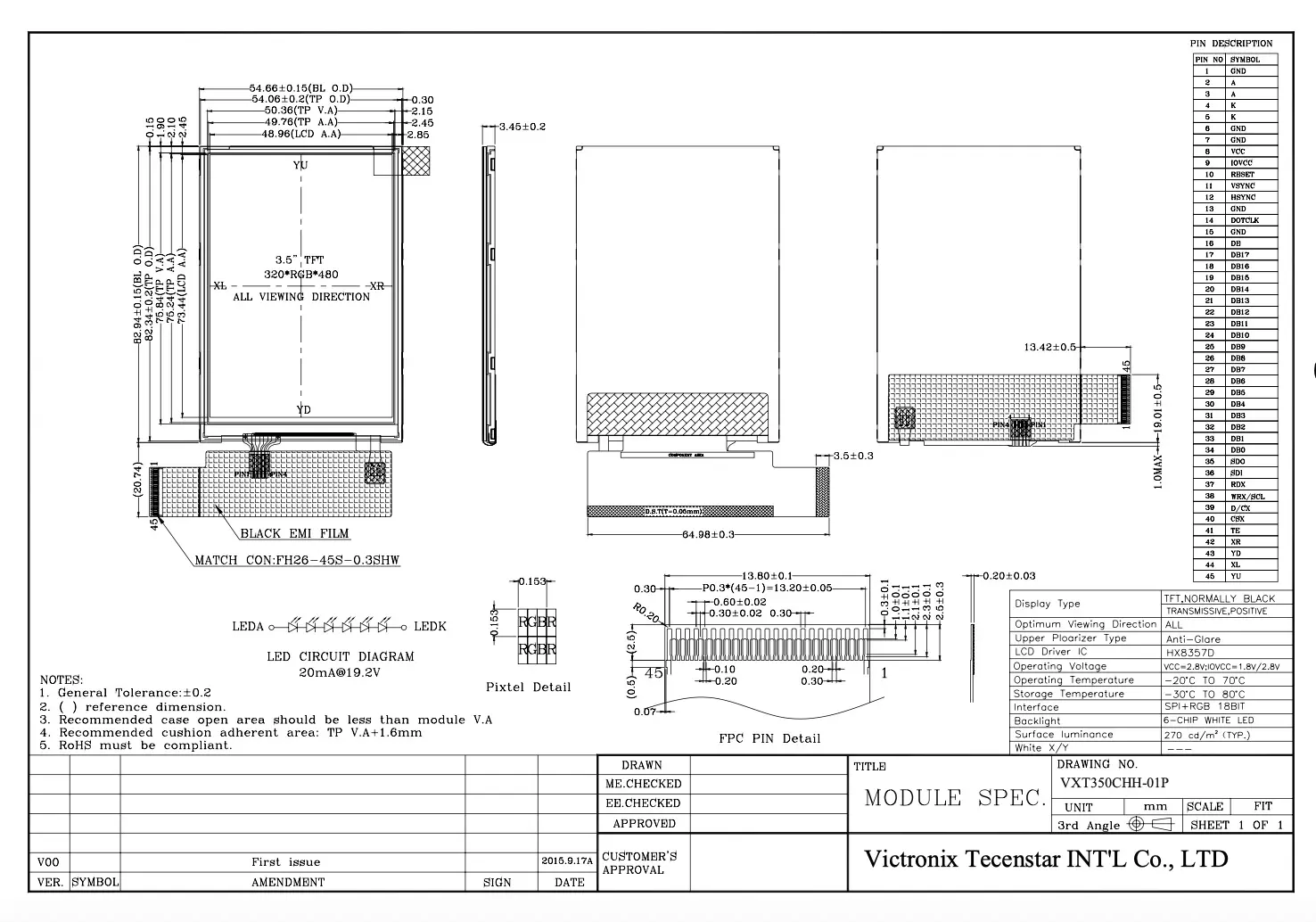

Specification
