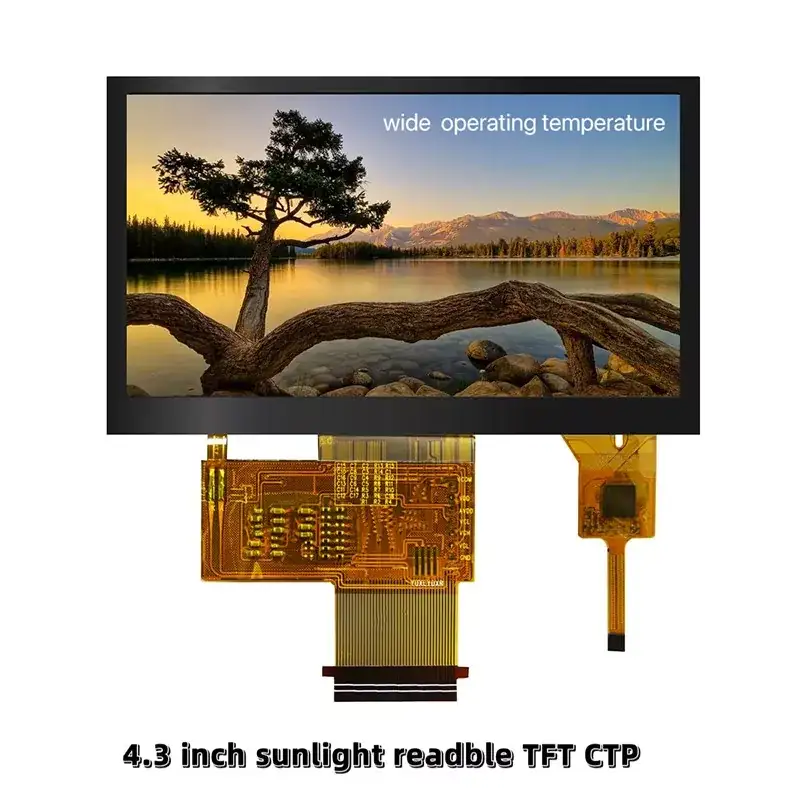

4.3 Inch 480x272 RGB TFT LCD Module with Capacitive Touch - VXT430HPWA-03C

The VXT430HPWA-03C is a 4.3-inch TFT LCD module with 480x272 resolution and integrated capacitive touch, wired as two independent subsystems: the display runs on its own 40-pin interface and VDD rail, while the FT5446 touch controller has a separate 6-pin FPC and its own VDD-CTP supply. That lets you power the display down and keep touch alive, or reset touch without touching the display. Rated 850 cd/m² and -30 to +85°C, it suits outdoor handheld terminals, field instruments and portable equipment.

Model:VXT430HPWA-03C(wide temperature)

Send Inquiry

Product Description

Rated -30°C to +85°C

Operating range is -30°C to +85°C, which puts this among the widest-temperature modules we make. A sealed enclosure in summer sun routinely exceeds 70°C inside, and this panel is rated for it.

Where It Gets Used

Outdoor handheld terminals — inspection, surveying, utilities, field service.
Portable test and measurement — instruments used outside the lab.
Agricultural and construction equipment — cab-mounted and carried displays exposed to temperature extremes.
Marine portable electronics — chartplotters, fishfinders, handheld diagnostics.
Industrial handheld scanners — warehouse and logistics, including cold areas.Vehicle auxiliary displays — where temperature is the dominant stress.
Battery equipment needing wake-on-touch — the separate rails make this straightforward.

Specifications

Item	Value
Model	VXT430HPWA-03C
Product Type	TFT LCD module
Size	4.3 inch
Resolution	480 × RGB × 272
Display Colours	16.7 M
Viewing Direction	All o'clock
Active Area	95.04 × 53.86 mm
Module Size	105.5 × 67.2 × 5.0 mm, excluding FPC and solder, including CTP
Interface	RGB888, 24-bit, 40-pin
TFT Controller	SC7283
CTP Driver	FT5446, on a separate 6-pin FPC
Display Supply (VDD)	3.0–3.6 V, typ 3.3 V; absolute max -0.3 to 4.0 V
Touch Supply (VDD-CTP)	2.7–3.6 V, typ 3.3 V — separate rail
Brightness	850 cd/m² typical
Uniformity	75% minimum, 80% typical
Viewing Angle	80° typical — confirm all four directions
Operating Temperature	-30°C to +85°C
Storage Temperature	-30°C to +85°C
Humidity	≤85% RH at ≤40°C; absolute humidity limit above 40°C

Drawing

4.3 inch 480x272 with Touch Screen TFT Module
